XBEE XBee Shield V03 | Wireless Control Module | Arduino Compatibility | IoT Integration
₹599.00₹800.00 (price_including_tax) (-25%)

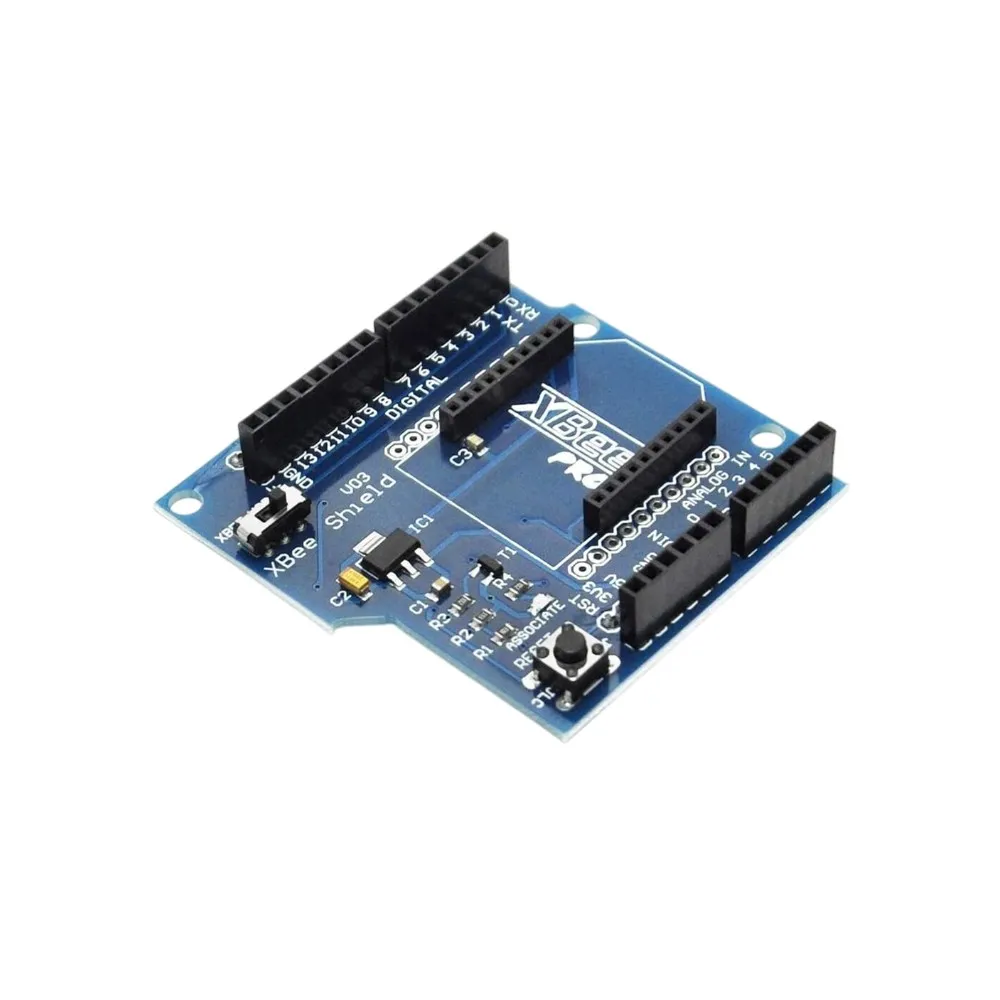

Empower your Arduino projects with seamless wireless communication capabilities. This shield transforms your development board into an XBee-ready platform, facilitating robust IoT and remote control applications. Engineered for reliability, it ensures stable and efficient data transmission.
This XBee Shield V03 delivers robust wireless connectivity, seamlessly integrating XBee modules with Arduino for advanced IoT projects.
Instantly connect XBee modules to Arduino, accelerating wireless project development with ease.
Onboard level shifters ensure reliable 5V/3.3V compatibility for stable data transfer.
Choose hardware or software serial, adapting seamlessly to your specific Arduino pin assignments.
The Engineering Behind XBEE XBee Shield V03
The XBEE XBee Shield V03 serves as a critical bridge, enabling robust wireless serial communication for Arduino-based development platforms. Designed to accommodate any standard XBee module (Series 1, Series 2, Pro, etc.), it primarily facilitates the direct integration of Zigbee or 802.15.4 wireless protocols into embedded systems. The shield intelligently manages the necessary logic level shifting from Arduino’s native 5V to the XBee module’s 3.3V, ensuring stable and error-free data exchange.
Constructed with high-grade PCB materials and precise component placement, the V03 shield guarantees excellent signal integrity and mechanical durability, crucial for prolonged operational cycles in diverse prototyping and industrial environments. Its compact form factor seamlessly integrates atop most standard Arduino boards, providing a clean and efficient wireless solution without requiring external breadboards or complex wiring.
Seamless Serial Communication Integration
The primary technical feature of the XBee Shield V03 is its dedicated serial communication interface. It provides selectable connections to either the hardware UART (pins D0/D1) or software serial pins on the Arduino, offering unparalleled flexibility in managing serial data streams. This direct, dedicated serial link ensures minimal latency and robust packet transmission, vital for time-sensitive control applications and data logging in wireless sensor networks.
Integrated Voltage Regulation and Pin Breakouts
Addressing the common challenge of power compatibility, the shield incorporates an efficient 3.3V voltage regulator, safely supplying the XBee module while drawing power from the Arduino’s 5V rail. Furthermore, it breaks out critical XBee pins to easily accessible header pins, allowing advanced users to interact directly with the XBee module’s various functionalities, such as RSSI, association, and configuration modes, resolving complex debugging and customization pain points.
Optimized for Performance & Integration
- Module Compatibility: Standard 20-pin XBee footprint (Series 1, Series 2, Pro, etc.)
- Logic Level Shifting: Onboard 5V to 3.3V conversion for robust data integrity
- Operating Voltage: 5V DC (from Arduino), provides regulated 3.3V to XBee
- Serial Interface: Selectable Hardware UART (D0/D1) or Software Serial pins
- Control & Status: Reset button, PWR, RSSI, and Associate indicator LEDs
- Arduino Compatibility: Form-factor compatible with Arduino Uno, Mega, Leonardo, etc.
Features & Benefits
- Universal XBee Socket: Supports all 20-pin XBee modules for flexible wireless protocol selection.
- Integrated Logic Level Shifting: Ensures safe and reliable communication between 5V Arduino and 3.3V XBee.
- Selectable Serial Interface: Easily switch between hardware UART and software serial for diverse project requirements.
- Onboard 3.3V Regulator: Provides stable and clean power to the XBee module, enhancing performance.
- Status LEDs & Reset Button: Visual feedback and convenient module reset simplify debugging and operation.
- Arduino Form Factor: Stacks directly onto popular Arduino boards for quick and secure integration.
Pro-Grade Advantages
- Streamlined XBee module integration into Arduino ecosystems.
- Automatic logic level conversion simplifies complex wiring setups.
- Provides dedicated reset and status indicators for enhanced debuggability.
- Offers flexible serial interface options for varied project needs.
Technical Considerations
- Requires an XBee module (sold separately) to function.
- May occupy critical Arduino digital pins depending on serial configuration.
What types of XBee modules are compatible with the XBee Shield V03?
The XBee Shield V03 is designed to be compatible with all standard 20-pin XBee modules, including Series 1, Series 2, XBee-PRO, and other compatible variants, ensuring broad flexibility for your wireless communication needs.
Does the shield require an external power supply for the XBee module?
No, the XBee Shield V03 integrates an onboard 3.3V voltage regulator that draws power directly from the Arduino’s 5V supply, providing stable and sufficient power to the XBee module without requiring an additional external supply.
How do I select between hardware and software serial for communication?
The XBee Shield V03 typically features jumpers or switches that allow you to select whether the XBee module communicates with the Arduino via its hardware UART pins (D0/D1) or user-definable software serial pins, offering adaptable integration.
Are the XBee module’s additional pins broken out on the shield?
Yes, the XBee Shield V03 commonly breaks out several non-UART pins of the XBee module to standard header pins, enabling advanced control and monitoring capabilities, such as RSSI, DTR, and other digital I/O lines.
Can this shield be stacked with other Arduino shields?
Yes, the XBee Shield V03 is generally designed with pass-through headers, allowing it to be stacked with other compatible Arduino shields. However, potential pin conflicts with other shields should be reviewed for specific project configurations.
What is the purpose of the onboard indicator LEDs?
The XBee Shield V03 typically includes LEDs for Power (PWR), RSSI (Received Signal Strength Indicator), and Associate. These LEDs provide crucial visual feedback on the module’s status, power, and network connection, aiding in troubleshooting and operation.
| Specification | Value |
|---|---|
| Module Interface | 20-pin XBee Socket |
| Input Voltage | 5V DC (from Arduino) |
| Output Voltage | 3.3V DC (for XBee module) |
| Logic Level Shifter | Integrated (5V to 3.3V) |
| Serial Communication | Hardware UART (D0/D1) / Software Serial (Configurable) |
| Indicator LEDs | PWR, RSSI, Associate |
| Control Elements | Reset Button |
| Arduino Compatibility | Uno, Mega, Leonardo, Due, etc. |
| Pin Breakouts | XBee Dout, Din, DTR, RST, RSSI, Associate |
