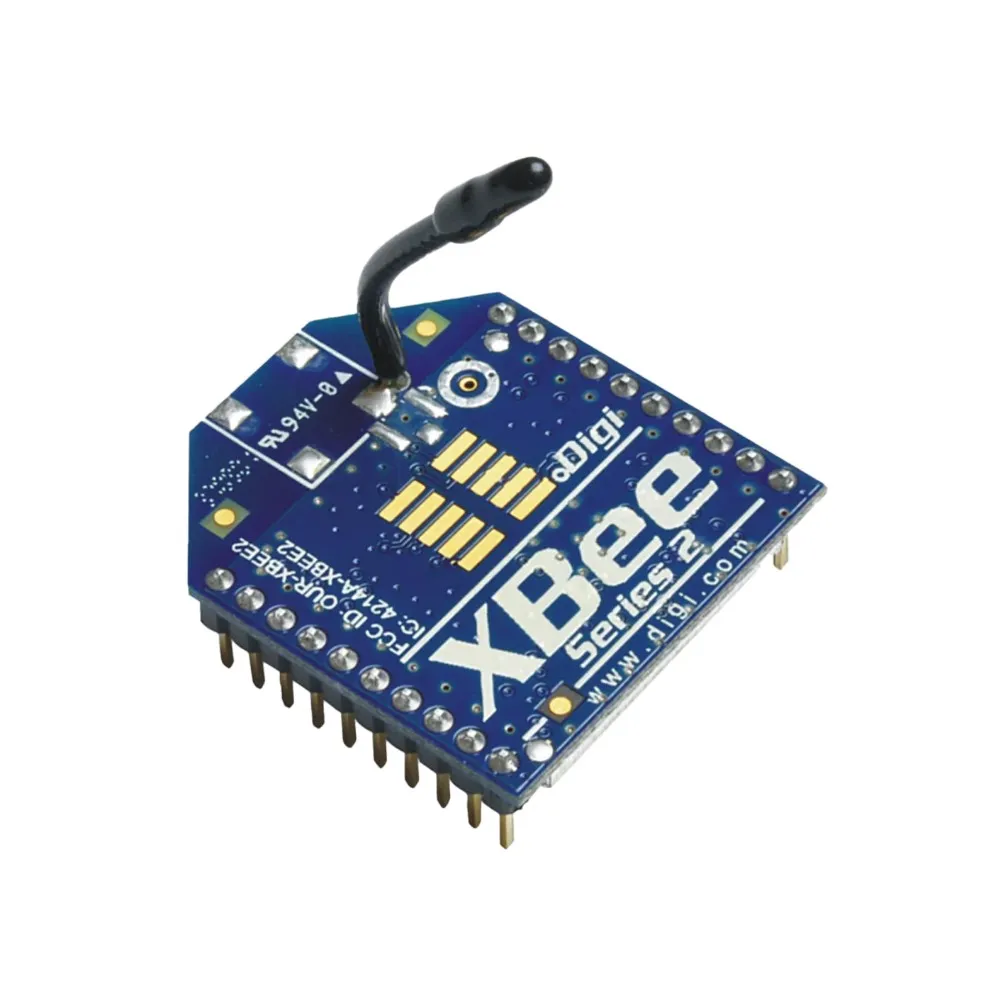

XBEE S2C 802.15.4 RF Module | Low Power Mesh Networking | UART/SPI Interface

The Engineering Behind XBEE S2C 802.15.4 RF Modules

The XBEE S2C 802.15.4 RF Module stands as a cornerstone for reliable short-range wireless communication, primarily designed for point-to-point, point-to-multipoint, and mesh network topologies. At its core, it leverages the Silicon Labs Ember EM357 (or equivalent) System-on-Chip, integrating a 2.4 GHz transceiver and a microcontroller to manage the IEEE 802.15.4 protocol stack. This architecture facilitates robust data exchange with minimal overhead, making it ideal for embedded applications requiring dependable wireless links.

Engineered for industrial-grade reliability, the module features a compact footprint suitable for integration into diverse hardware designs, from custom PCBs to development boards. Its low power consumption profile extends battery life in remote applications, while the robust RF design ensures stable connections even in challenging RF environments. The module’s straightforward serial interface simplifies integration, reducing development time for complex wireless systems.

Frequency Agile 2.4 GHz Transceiver

Operating within the globally available 2.4 GHz ISM band, the XBEE S2C module provides a versatile and widely compatible wireless communication solution. Its frequency agility and robust direct sequence spread spectrum (DSSS) modulation ensure interference resilience and reliable data packets, crucial for maintaining data integrity in crowded RF spectra found in smart homes and industrial settings. This characteristic guarantees consistent performance across a broad range of deployment scenarios.

Flexible Serial Communication Interface

The module’s primary communication interface is UART (Universal Asynchronous Receiver-Transmitter), offering a simple and widely supported method for connecting to microcontrollers, host processors, or computers. This eliminates the complexity often associated with raw RF chip integration, allowing developers to focus on application logic rather than intricate radio control. With configurable baud rates and flow control, it seamlessly adapts to various system requirements, accelerating prototype development and deployment.

Optimized for Performance & Integration

• Wireless Protocol: IEEE 802.15.4
• Frequency Band: 2.4 GHz ISM
• Data Rate: Up to 250 kbps
• Supply Voltage: 2.1 – 3.6 VDC (Typically 3.3V)
• Transmit Power: Up to 3.1 mW (+5 dBm)
• Receive Sensitivity: -100 dBm
• Antenna Options: PCB Antenna / U.FL / Wire (model dependent)
• Interface: UART (Serial), SPI (limited), Digital I/O, Analog Input

Features & Benefits

• 802.15.4 Protocol Support: Ensures robust and low-power mesh networking capabilities for reliable data transfer in embedded systems.
• 2.4 GHz ISM Band Operation: Provides global compatibility and avoids licensing requirements, simplifying international deployment.
• UART Serial Interface: Offers straightforward integration with microcontrollers, accelerating development cycles for wireless applications.
• Low Power Consumption: Extends battery life significantly, making it ideal for remote, battery-powered IoT devices and sensor nodes.
• Compact Footprint Design: Facilitates easy integration into space-constrained projects and custom PCB layouts.
• Advanced Configuration Options: Allows fine-tuning of network parameters, including addressing, security, and power modes.
