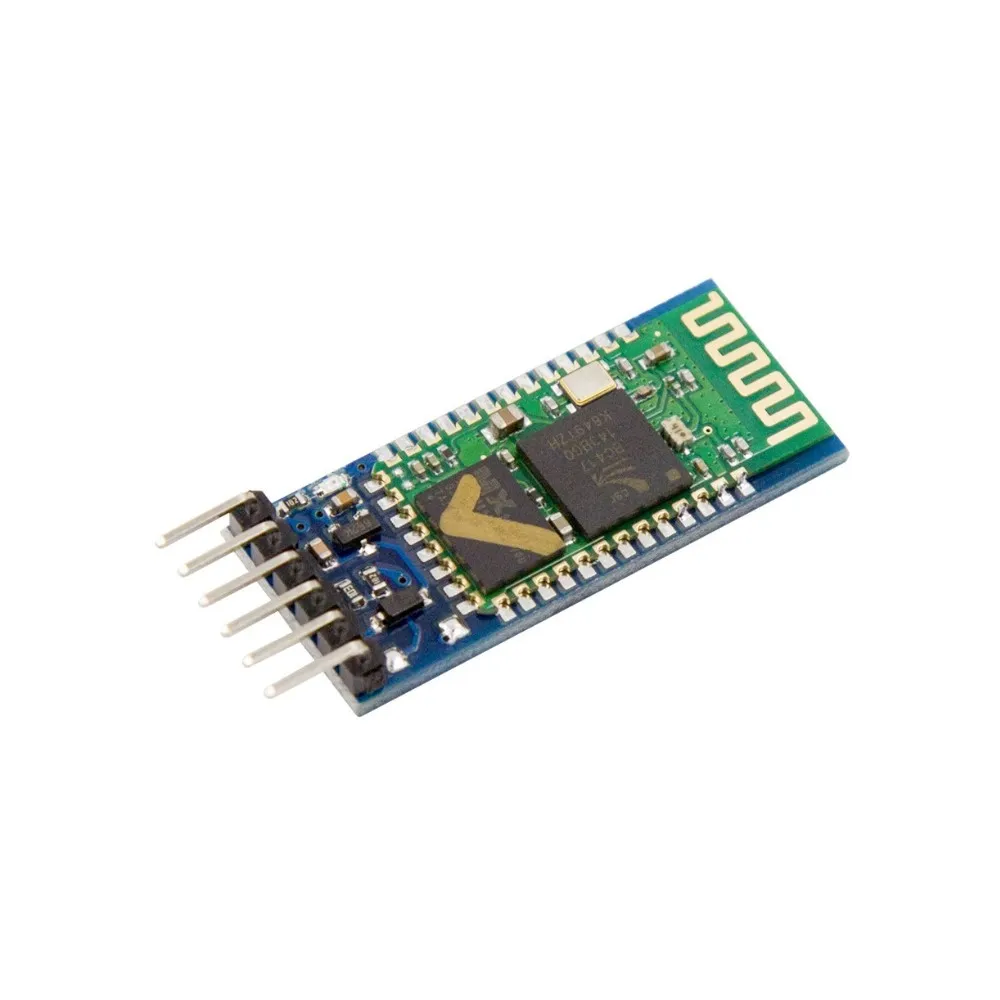

Generic HC-05 Bluetooth Module | Master/Slave Configurable | Serial SPP Communication

The Engineering Behind HC-05 Bluetooth Module

The HC-05 Bluetooth module is a highly integrated serial port protocol (SPP) module, designed around the CSR BlueCore4-Ext chipset. It facilitates wireless communication between microcontrollers and other Bluetooth-enabled devices, operating as either a Master or Slave device. Its primary function is to provide a transparent serial data link, abstracting the complexities of the Bluetooth protocol for straightforward integration into embedded systems via UART.

Engineered for reliability and ease of use, the HC-05 module typically comes mounted on a breakout board featuring voltage regulation, an LED status indicator, and clearly labeled pins. This standard integration allows for direct interfacing with both 3.3V and 5V logic level systems, ensuring broad compatibility with popular development platforms like Arduino and Raspberry Pi without external level shifters.

Bidirectional Serial Protocol (SPP)

The HC-05 leverages the Serial Port Profile (SPP), enabling transparent, bidirectional data exchange over a virtual serial port. This means that data sent to the module’s UART pins is wirelessly transmitted to a paired device, and vice versa, as if a physical serial cable were connected. This simplicity makes it ideal for applications requiring wireless data logging, remote control, and sensor data transmission, greatly simplifying the software interface.

Master and Slave Configuration

A key engineering advantage of the HC-05 is its configurable operating mode. It can be set as a Slave, waiting for connections from other Bluetooth devices (like a smartphone or another HC-05 Master), or as a Master, actively searching for and initiating connections with other Bluetooth Slave devices. This flexibility resolves traditional operational pain points by allowing for diverse network topologies, from simple point-to-point links to more complex multi-device interactions, all manageable via straightforward AT commands.

Optimized for Performance & Integration

• Bluetooth Version: v2.0+EDR
• Chipset: CSR BlueCore4-Ext
• Operating Modes: Master, Slave, Loop-back
• Operating Voltage: 3.3V to 6V (module logic 3.3V)
• Default Baud Rate: 9600 bps (configurable via AT commands)
• Range: ~10 meters (Class 2)
• Frequency: 2.4GHz ISM band
• Interface: UART (Serial)

Features & Benefits

• Bluetooth 2.0+EDR: Ensures broad compatibility with existing devices and stable data transfer.
• Master/Slave Operation: Provides flexible configuration for connecting to other Bluetooth devices or acting as a central hub.
• UART (Serial) Interface: Simplifies integration with microcontrollers like Arduino, requiring minimal code for communication.
• AT Command Set: Allows advanced customization of module parameters, including name, baud rate, and pairing mode.
• Wide Voltage Compatibility: Operates reliably with both 3.3V and 5V systems via on-board regulator.
• Integrated Antenna: Offers compact design and adequate range for typical project requirements without external components.
