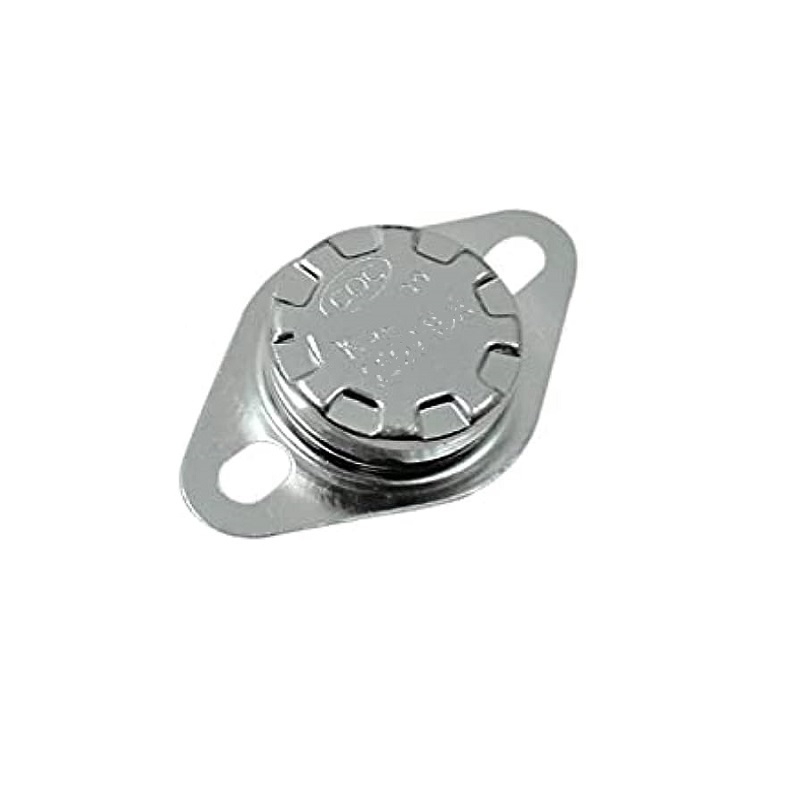

Generic Ceramics KSD302 80°C NC Temperature Control Switch Thermostat - 250V 16A
The Ceramics KSD302 is a normally closed (NC) thermal switch designed for automatic temperature control in appliances and heating systems. It opens the circuit at 80°C, rated for 250V AC and 16A, featuring a durable ceramic housing for electrical insulation and thermal stability.
Features
- Normally Closed (NC) snap-action thermal switch opens at 80°C (±5°C typical).
- High-current rating of 16A at 250V AC for direct control of heating elements or motors.
- Durable ceramic housing provides excellent electrical insulation and thermal conductivity.
- Bimetallic disc actuator ensures reliable, repeatable switching with long operational life.
- Compact form factor with screw terminals for easy integration into control panels and appliances.
Out of stock
The KSD302 is a bimetallic disc thermostat, a fundamental component for over-temperature protection and basic temperature regulation. When the ambient temperature reaches its calibrated set point of 80°C, the bimetallic disc snaps, mechanically opening the normally closed contacts to break the circuit. This action provides a failsafe cutoff for heating elements, motors, or transformers without requiring external power.
Constructed with a ceramic body, the switch offers high dielectric strength and resistance to tracking, making it suitable for mains-voltage applications. The robust design ensures consistent performance across its operating temperature range, with a typical hysteresis of a few degrees Celsius for stable cycling. It is a cost-effective and reliable solution for applications requiring a simple, self-contained thermal cutoff.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 11 × 7 × 2 cm |
