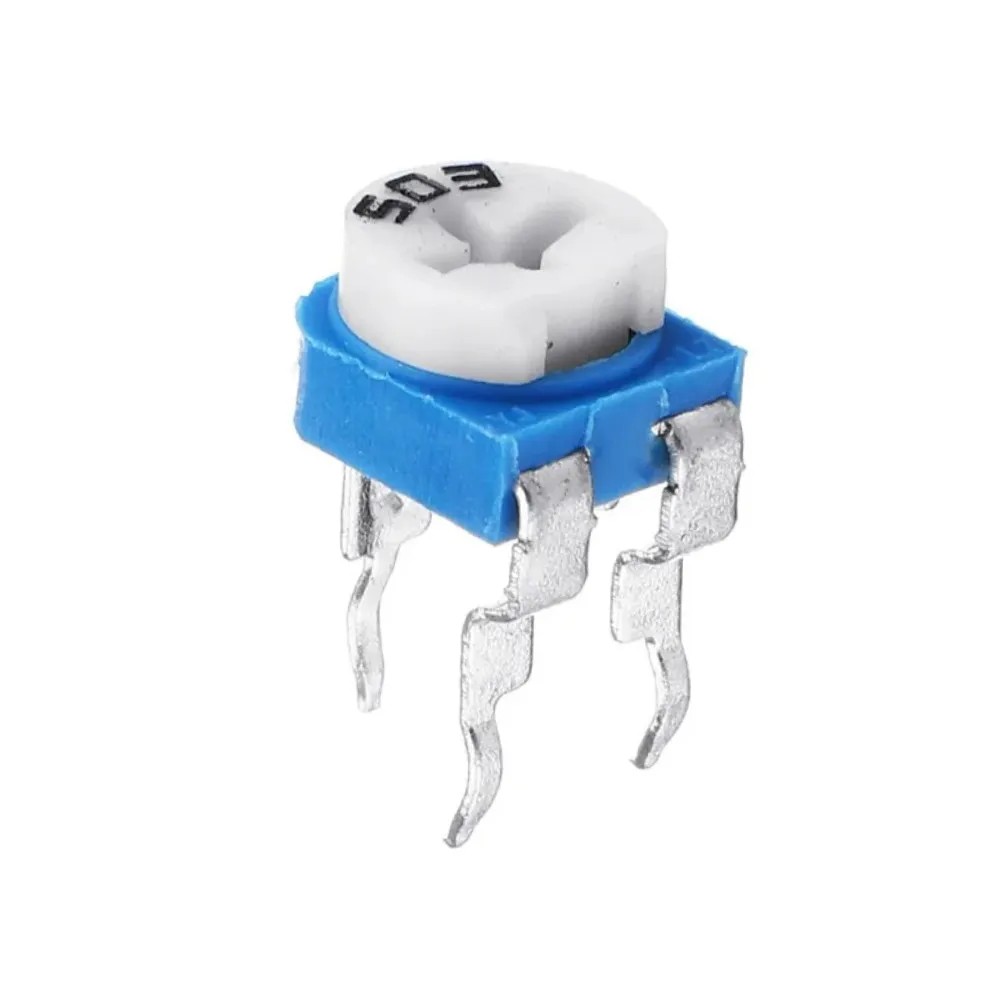

Generic BOCHEN RM065-503 Potentiometer – 50K Ohm (Single Piece)
₹45.00₹80.00 (price_including_tax) (-44%)
Achieve precise resistance adjustment in your electronic projects. This RM065-503 50K potentiometer is ideal for volume control, sensor calibration, and voltage division. Built for consistent performance and durability in demanding applications.
This BOCHEN RM065-503 potentiometer offers reliable 50K variable resistance, crucial for precise circuit tuning and control.
Enables accurate tuning for sensitive circuits, ensuring optimal performance across diverse applications reliably.
Constructed for enduring use, resisting wear and maintaining consistent electrical contact effectively.
Effortlessly fits into various electronic projects, enhancing functionality and design flexibility widely.
The Engineering Behind BOCHEN RM065-503 50K Potentiometer
The BOCHEN RM065-503 series potentiometer, specifically the 50K variant, is a robust variable resistor engineered for precise electrical control in a multitude of circuit designs. Its core architecture involves a resistive track and a wiper mechanism, allowing for dynamic adjustment of resistance across its terminals, making it indispensable for controlling current, voltage, and signal levels in analog circuits.
Constructed with high-grade resistive materials and a durable mechanical interface, this potentiometer is designed for longevity and consistent performance under repeated adjustments. Its compact plugin form factor facilitates easy integration onto prototyping boards and PCBs, ensuring a reliable connection for critical applications from audio equipment to industrial controls.
Precision Resistance Modulation
The RM065-503’s primary feature is its ability to provide finely granular resistance modulation. With a 50K Ohm nominal value and a ±25% tolerance, engineers can accurately dial in desired resistance levels, enabling precise calibration of sensor inputs, setting specific voltage reference points, or fine-tuning frequency responses within active filter designs, critical for system optimization.
Robust Plugin Design and Power Handling
Its plugin form factor ensures secure physical and electrical integration, minimizing intermittent contact issues common with lower-quality components. Capable of handling up to 100mW, this potentiometer is suitable for a wide range of low-power control applications, effectively managing signal attenuation or gain without compromising component integrity, thereby resolving typical operational constraints in compact designs.
Optimized for Performance & Integration
- Resistance Value: 50K Ohms
- Tolerance: ±25%
- Power Rating: 100mW
- Series: RM065-503
- Manufacturer: BOCHEN Chengdu Guosheng Tech
- Compliance: ROHS
- Type: Single Turn Potentiometer
Features & Benefits
- 50K Ohm Resistance: Provides versatile control for a broad range of electronic circuits.
- ±25% Tolerance: Ensures reliable performance for general-purpose variable resistance applications.
- 100mW Power Rating: Suitable for low-power signal control and voltage division in compact designs.
- Plugin Form Factor: Facilitates easy and secure integration onto breadboards and PCBs.
- ROHS Compliant: Meets environmental standards for safe and responsible component usage.
- Durable Construction: Guarantees long-term stability and repeated adjustment cycles.
Pro-Grade Advantages
- Offers precise resistance adjustment for critical circuit tuning.
- Durable construction ensures long operational lifespan and reliability.
- Compact plugin design simplifies integration into various projects.
- ROHS compliance supports environmentally conscious product development.
Technical Considerations
- ±25% tolerance may require calibration for highly sensitive applications.
- 100mW power limit restricts use to lower-power control circuits.
What is the nominal resistance value of the RM065-503 potentiometer?
The nominal resistance value is 50K Ohms, making it suitable for a wide range of applications requiring variable resistance.
What is the power rating of this potentiometer?
This potentiometer has a power rating of 100mW, suitable for low-power control and signal conditioning circuits.
What is the tolerance for the RM065-503 50K potentiometer?
The resistance tolerance is ±25%, which is standard for general-purpose variable resistors and sufficient for most non-precision applications.
Is the RM065-503 potentiometer ROHS compliant?
Yes, the BOCHEN RM065-503 50K potentiometer is fully ROHS compliant, adhering to environmental and safety standards.
What are common applications for a 50K Ohm potentiometer?
Common applications include volume control in audio circuits, dimming LED lights, sensor calibration, and setting bias points in amplifier designs.
| Specification | Value |
|---|---|
| Model Number | RM065-503 |
| Resistance Value | 50K Ohms |
| Resistance Tolerance | ±25% |
| Power Rating | 100mW |
| Manufacturer | BOCHEN Chengdu Guosheng Tech |
| Operating Temperature | -25°C to +70°C |
| Rotation Angle | ~270° |
| Mounting Type | Through-hole / Plugin |
| Lifespan (Rotations) | ~10,000 Cycles |
| Compliance | ROHS |
Additional information
| Brand | Generic |
|---|---|
| Technology | Potentiometer |
| Value | 50K Ohm |
| Tolerance | ±25% |
| Power Rating | 100mW |
