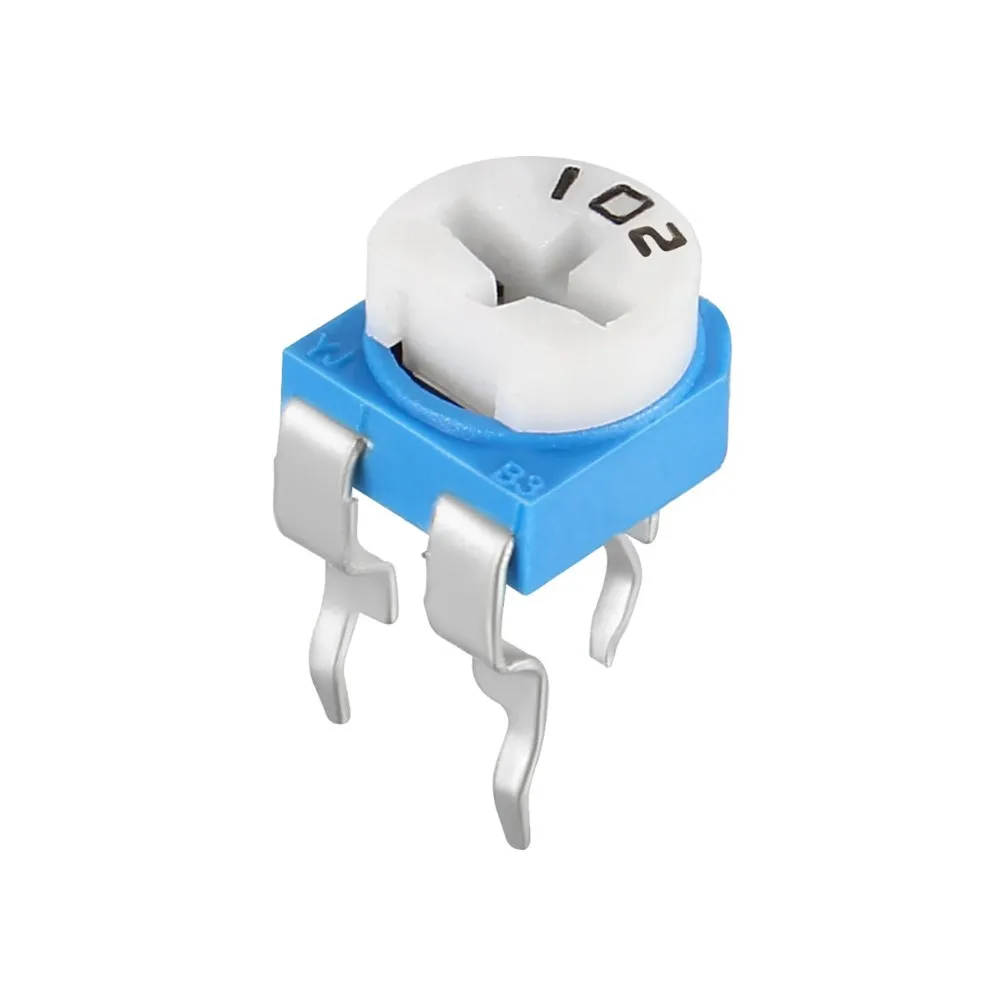

Generic 100K Potentiometer Trimmer – Preset Variable Resistor (Single Unit)
₹0.50₹2.00 (price_including_tax) (-75%)
Achieve meticulous circuit calibration with this 100K Ohm preset variable potentiometer trimmer. Seamlessly integrate this compact component for precise voltage division and signal conditioning. Engineered for consistent performance and long-term reliability in diverse electronic projects.
Precise 100K potentiometer trimmer offers reliable resistance adjustment for fine-tuning circuits with unwavering stability.
Achieve exact circuit adjustments, ensuring optimal performance across all your critical applications.
Integrates seamlessly into compact PCBs, maximizing component density without sacrificing functionality.
Guaranteed consistent reliability and stable performance for long-term operational integrity in demanding setups.
The Engineering Behind the 100K Potentiometer Trimmer
The 100K Potentiometer Trimmer is a fundamental passive electronic component designed for precise, adjustable resistance within a circuit. Its core architecture involves a resistive track and a wiper contact, allowing for variable resistance when the adjustment screw is turned. This enables engineers and hobbyists to finely tune voltage division, current limiting, and signal gain, crucial for calibration in sensitive analog circuits and sensor interfaces.
Constructed with durable materials, typically a carbon film or cermet resistive element housed in a miniature package, these trimmers are built for stability and longevity. Their robust design ensures reliable performance under varying operational conditions, making them ideal for set-and-forget calibration tasks in development boards, audio equipment, and control systems.
Precise Resistance Adjustment
The primary technical feature of the 100K potentiometer trimmer is its ability to provide a continuously variable resistance up to 100 kilohms. This fine-grained control is indispensable for calibrating analog inputs, setting bias points for transistors, or adjusting the sensitivity of sensors, ensuring optimal circuit behavior and desired output characteristics.
Compact PCB Integration
Designed for compact integration, these preset trimmers occupy minimal board space, typically featuring through-hole or surface-mount configurations. This structural choice resolves the common operational pain point of crowded PCBs, allowing for high-density component placement while still providing accessible adjustment points during prototyping or manufacturing.
Optimized for Performance & Integration
- Resistance Value: 100 KOhms
- Type: Preset Variable Trimmer Potentiometer
- Pin Configuration: 3-Pin (Voltage Input, Wiper Output, Ground)
- Adjustment Method: Top Adjust Screw
- Mounting: Through-hole
- Tolerance: ±20%
- Max Power Rating: 0.2W
Features & Benefits
- 100K Ohm Resistance: Provides a wide range for precise voltage and signal tuning in various applications.
- Preset Variable Design: Allows for ‘set and forget’ adjustments, maintaining calibration even after installation.
- Compact Form Factor: Minimizes PCB footprint, enabling high-density component placement in constrained designs.
- Reliable Carbon Film Element: Ensures stable resistance values and consistent performance over its operational life.
- Easy Top Adjustment: Facilitates simple and accessible calibration with a standard screwdriver.
- Versatile Application: Ideal for controlling volume, contrast, brightness, or setting thresholds in analog circuits.
Pro-Grade Advantages
- Offers precise, fine-grained control for analog signal calibration.
- Compact footprint allows for integration into dense circuit designs.
- Cost-effective solution for variable resistance requirements.
- Generally robust against minor vibrations once set.
Technical Considerations
- Limited power handling capacity compared to larger potentiometers.
- Mechanical wear can occur over many adjustment cycles, reducing lifespan.
What is the primary function of a 100K potentiometer trimmer in a circuit?
It primarily functions as a variable resistor to precisely adjust voltage division, current, or signal levels within an electronic circuit.
What is the typical power rating for a small preset trimmer like this?
Small preset trimmers typically have a power rating ranging between 0.1W and 0.5W, suitable for low-power control applications.
Can this 100K trimmer be used for high-frequency applications?
While functional, trimmers generally introduce some parasitic capacitance and inductance, making them less ideal for critical high-frequency circuits where signal integrity is paramount.
How many terminals does a standard potentiometer trimmer usually have?
A standard potentiometer trimmer has three terminals: two connected to the ends of the resistive track and one for the movable wiper contact.
What is the benefit of a ‘preset’ potentiometer over a panel-mount type?
Preset trimmers are designed for internal, ‘set-and-forget’ adjustments during assembly or calibration, while panel-mount types are for user-facing, frequent adjustments.
| Specification | Value |
|---|---|
| Resistance | 100 kΩ |
| Resistance Taper | Linear |
| Tolerance | ±20% |
| Power Rating | 0.2W @ 70°C |
| Operating Temperature | -55°C to +125°C |
| Mounting Type | Through Hole |
| Adjustment Type | Top Adjust |
| Number of Turns | 1 (Single-Turn) |
| Pins | 3 |
Additional information
| Value | 100 KOhms |
|---|---|
| Package | Trimmer |
| Tolerance | ±20% |
| Power Rating | 0.2 W |
| Technology | Carbon Film |
