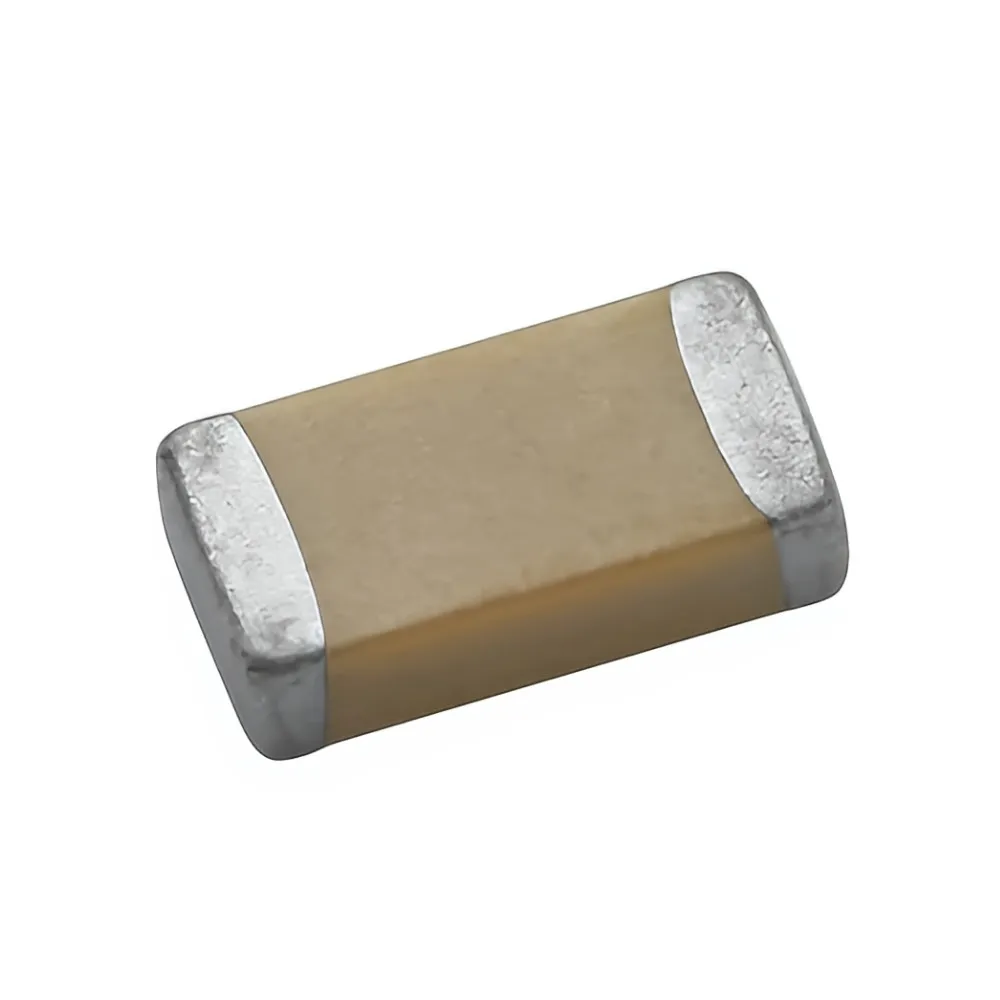

Generic 1uF 50V Ceramic Capacitor – 1206 SMD Package
₹4.00₹10.00 (price_including_tax) (-60%)
Essential for stable power delivery and signal integrity. Integrates seamlessly into compact PCB designs for filtering and decoupling. Manufactured to exacting standards for consistent performance in demanding applications.
Reliable 1uF 50V ceramic capacitor in a compact 1206 SMD package for precise circuit filtering and energy storage.
Maximizes board space efficiency, crucial for miniature and high-density electronic assemblies.
Offers robust electrical characteristics ensuring long-term stability in demanding applications.
Ideal for power filtering, signal conditioning, and timing in a broad range of circuits.
The Engineering Behind 1uF 50V 1206 SMD Capacitor
This 1uF 50V capacitor is a Multi-Layer Ceramic Capacitor (MLCC) engineered for surface mount applications. Its primary function involves energy storage, signal coupling/decoupling, and noise filtering in a wide array of electronic circuits. The ceramic dielectric material provides high volumetric efficiency and excellent performance across broad frequency ranges, crucial for modern high-speed digital and analog systems.
Utilizing the globally recognized 1206 (3.2mm x 1.6mm) SMD package, this capacitor is designed for robust structural execution and compatibility with automated pick-and-place manufacturing processes. Its construction adheres to industry-standard component grades, ensuring reliable operation and resistance to common environmental stressors, making it suitable for both prototyping and mass production environments.
Precise Capacitance for Stable Operation
With a nominal capacitance of 1 microfarad (1000 nanofarads), this component is ideally suited for critical power supply decoupling applications, effectively shunting high-frequency noise to ground and stabilizing voltage rails. It significantly enhances signal integrity by mitigating ripple and transient voltage spikes, thereby improving the overall performance and reliability of sensitive electronic systems.
Robust 50V Voltage Rating and 1206 SMD Footprint
The 50V DC voltage rating provides substantial operational headroom, allowing for integration into various power domains without compromising component longevity. The standardized 1206 SMD footprint resolves traditional operational pain points associated with through-hole components, enabling ultra-compact PCB designs, higher component densities, and reduced assembly costs due to its suitability for reflow soldering processes.
Optimized for Performance & Integration
- Capacitance: 1µF (1000nF)
- Voltage Rating: 50V DC
- Package Type: 1206 SMD (Surface Mount Device)
- Dielectric Type: Ceramic (e.g., X7R/X5R)
- Tolerance: ±10%
- Operating Temperature: -55°C to +125°C
- Mounting Style: Surface Mount
- RoHS Compliance: Yes
Features & Benefits
- 1µF Capacitance: Ensures effective power supply decoupling and signal filtering for stable circuit operation.
- 50V Voltage Rating: Provides ample voltage headroom, enhancing reliability across various applications.
- 1206 SMD Package: Enables compact PCB layouts and efficient automated pick-and-place assembly.
- Multi-Layer Ceramic Construction: Offers high volumetric efficiency and excellent high-frequency performance.
- Wide Operating Temperature Range: Guarantees consistent performance in diverse environmental conditions.
- Low ESR & ESL: Minimizes power loss and improves transient response in critical circuits.
Pro-Grade Advantages
- Extremely compact 1206 SMD form factor for dense PCBs.
- Excellent high-frequency response critical for modern digital systems.
- Cost-effective solution for general-purpose decoupling and filtering.
- Good temperature stability with appropriate ceramic dielectric types.
Technical Considerations
- Capacitance can exhibit variation with applied DC bias voltage.
- Susceptible to mechanical stress and potential cracking if improperly handled or mounted.
What does ‘1206 SMD Package’ signify?
The ‘1206’ refers to the standardized physical dimensions of the surface mount device (SMD) package, specifically 0.12 inches by 0.06 inches (approximately 3.2mm x 1.6mm), indicating its compact footprint for PCB integration.
What are the primary applications for a 1uF 50V ceramic capacitor?
These capacitors are widely used for power supply decoupling, signal filtering, bypassing, energy storage, and general-purpose applications in microcontrollers, sensors, and various analog and digital circuits.
What is the benefit of a 50V voltage rating for this component?
A 50V rating provides significant voltage headroom, allowing the capacitor to be safely used in circuits operating at lower voltages (e.g., 3.3V, 5V, 12V) with a generous margin, enhancing reliability and preventing premature failure due to voltage spikes.
How is this SMD capacitor typically mounted onto a PCB?
This SMD capacitor is designed for surface mount technology (SMT) and is typically mounted to a PCB using reflow soldering processes, compatible with automated pick-and-place assembly lines.
Does the dielectric material (ceramic) affect its performance?
Yes, the ceramic dielectric (e.g., X7R or X5R) provides excellent high-frequency characteristics, low equivalent series resistance (ESR) and inductance (ESL), making it highly effective for noise suppression and signal integrity at high speeds.
| Specification | Value |
|---|---|
| Capacitance Value | 1 µF (1000 nF) |
| Rated Voltage | 50 V DC |
| Package Size (EIA) | 1206 |
| Metric Size | 3216 (3.2mm x 1.6mm) |
| Dielectric Material | Ceramic (e.g., X7R) |
| Capacitance Tolerance | ±10% |
| Operating Temperature Range | -55°C to +125°C |
| Mounting Style | Surface Mount Device (SMD/SMT) |
| Terminal Type | Solder Pads |
| Lead Free Status / RoHS Status | Lead Free / RoHS Compliant |
Additional information
| Dimensions | 0.32 × 0.16 × 0.09 cm |
|---|---|
| Capacity | 1uF |
| Operating Voltage | 50V |
| Package | 1206 SMD |
| Tolerance | ±10% |
| Technology | Ceramic (MLCC) |
