Generic A2212 1000KV Brushless Motor Set with SimonK 30A ESC and OrangeRX 1045 Propellers - 4-Pack

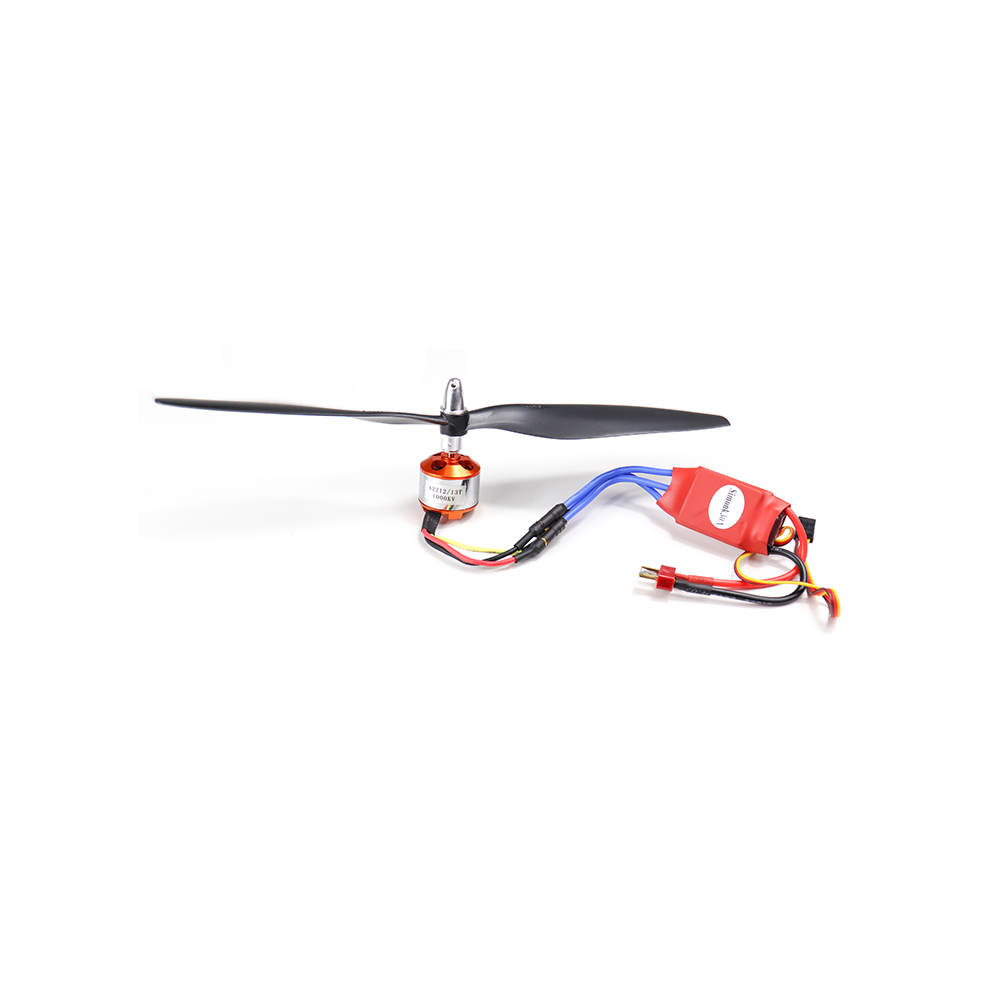

The Generic A2212 1000KV Brushless Motor Set is a complete propulsion package for medium-sized multirotors, including four motors, SimonK 30A ESCs, and OrangeRX 1045 propellers. Designed for 2S-3S LiPo batteries, this combo offers a cost-effective entry point for quadcopter and hexacopter builds, providing reliable thrust for training and endurance-focused platforms.
Features
- Complete 4-Pack Propulsion System: Includes four A2212 1000KV brushless motors, four SimonK 30A ESCs, and four pairs of OrangeRX 1045 propellers.
- Optimized for Endurance: The 1000KV rating paired with 10×4.5-inch propellers delivers efficient thrust for long-range and stable multirotor flight on 2S-3S LiPo power.
- Integrated Power Management: Each 30A ESC features an onboard 5V/3A BEC to power flight controllers and auxiliary electronics without an external regulator.
- User-Friendly Connectivity: Motors come with female 3.5mm bullet connectors, and ESCs have male connectors for straightforward, solder-free assembly.
- Firmware Flexibility: SimonK firmware on the ESCs ensures reliable, fast throttle response and is easily flashable for advanced tuning and bidirectional operation.
Out of stock

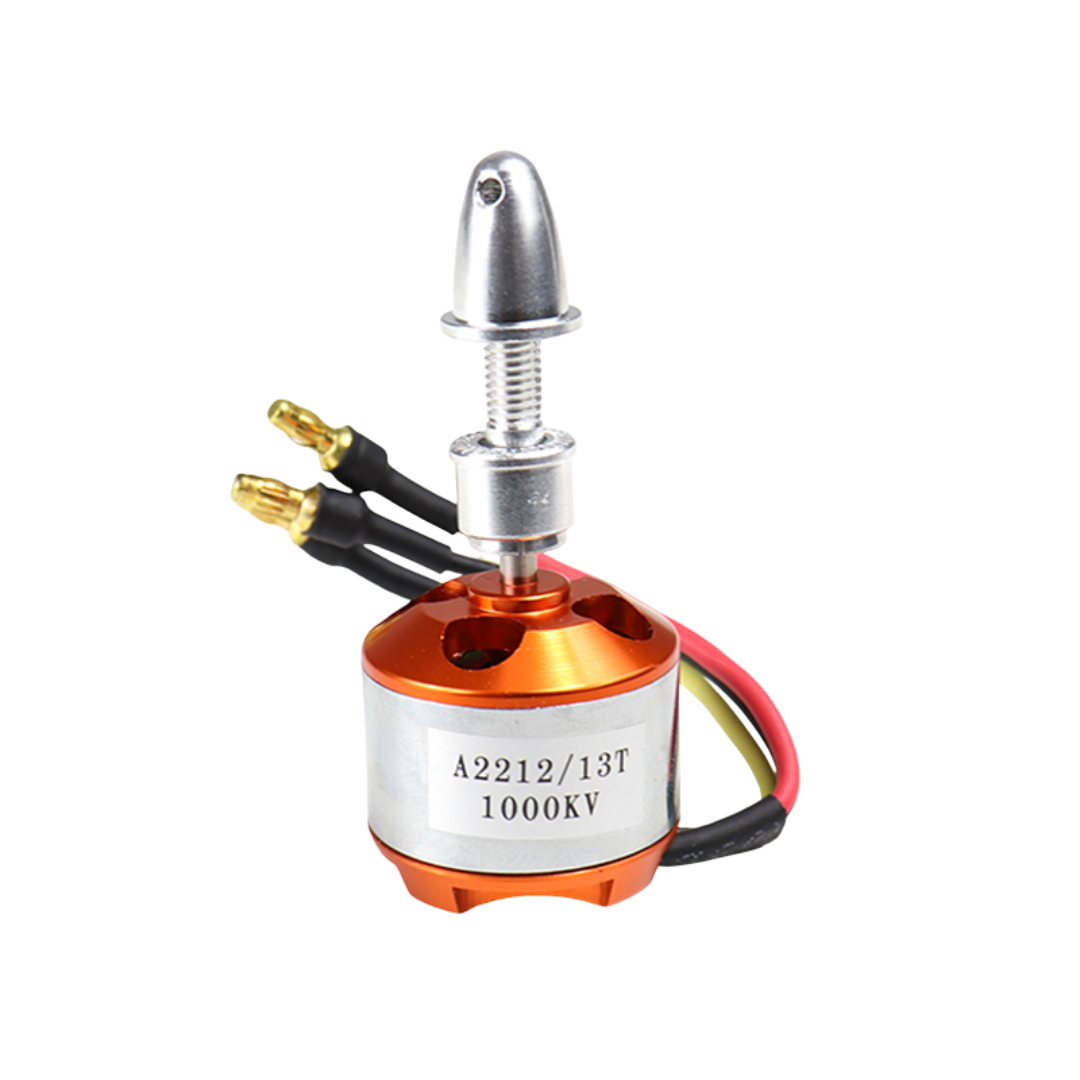

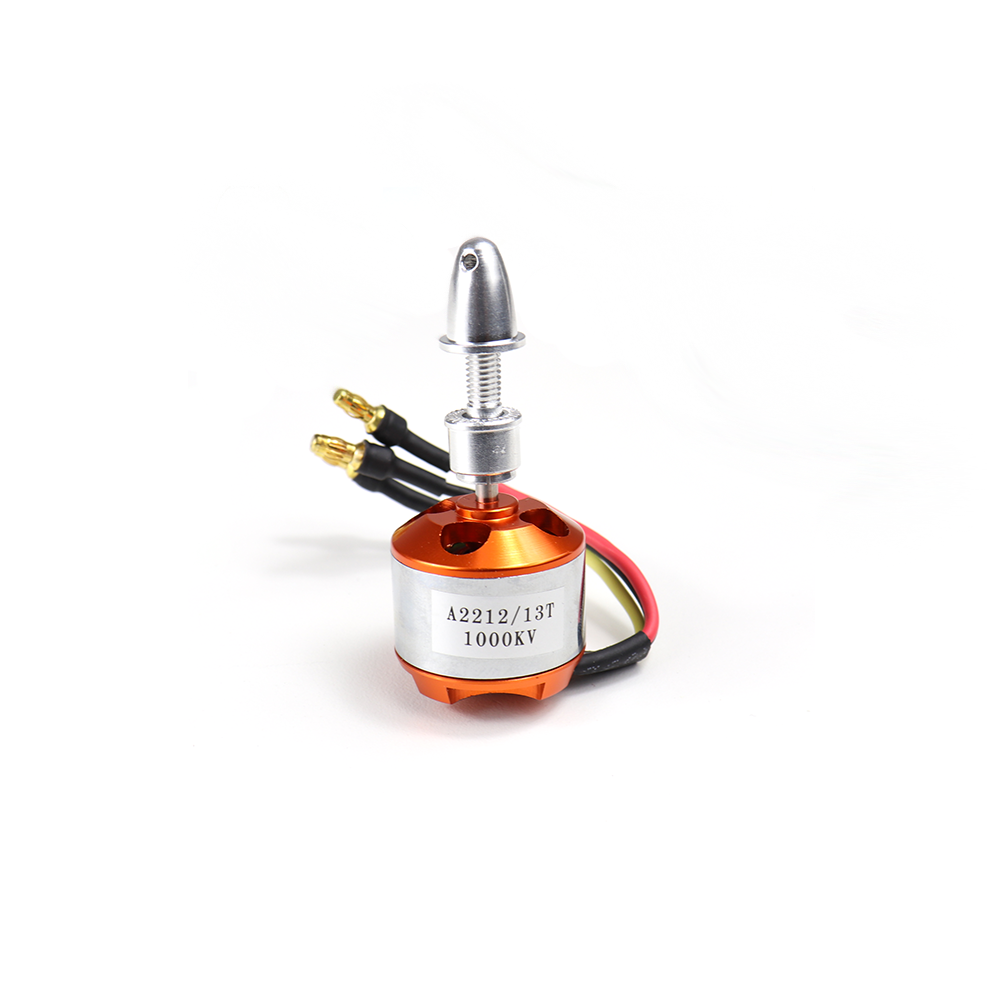

The A2212 1000KV brushless motor is built around a 14-pole stator design housed in a solid metal case, providing a durable foundation for training and utility drones. With a shaft diameter of 3.17mm, it accommodates standard prop adapters and is rated for a maximum power of 150W, operating efficiently within a 4-10A current range. This motor prioritizes functional reliability and high-value construction for pilots building their first multirotor or requiring a cost-effective replacement set.

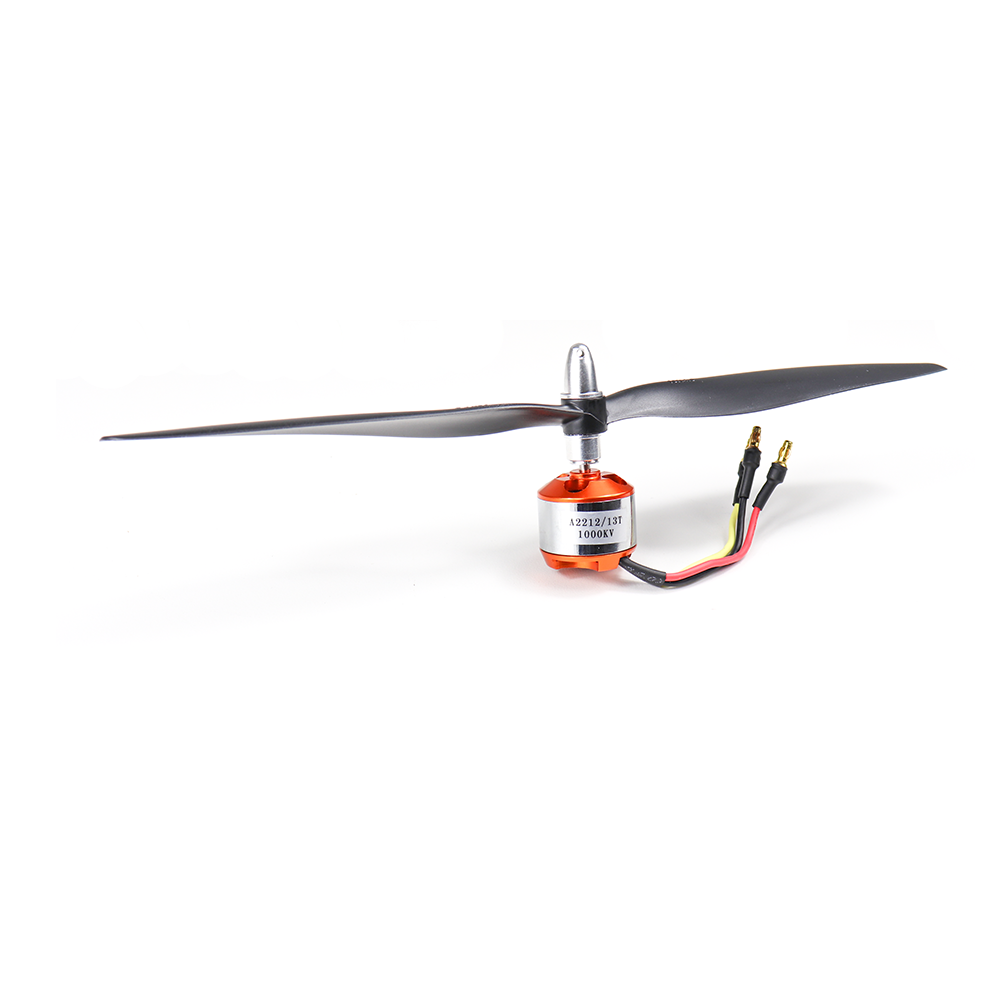

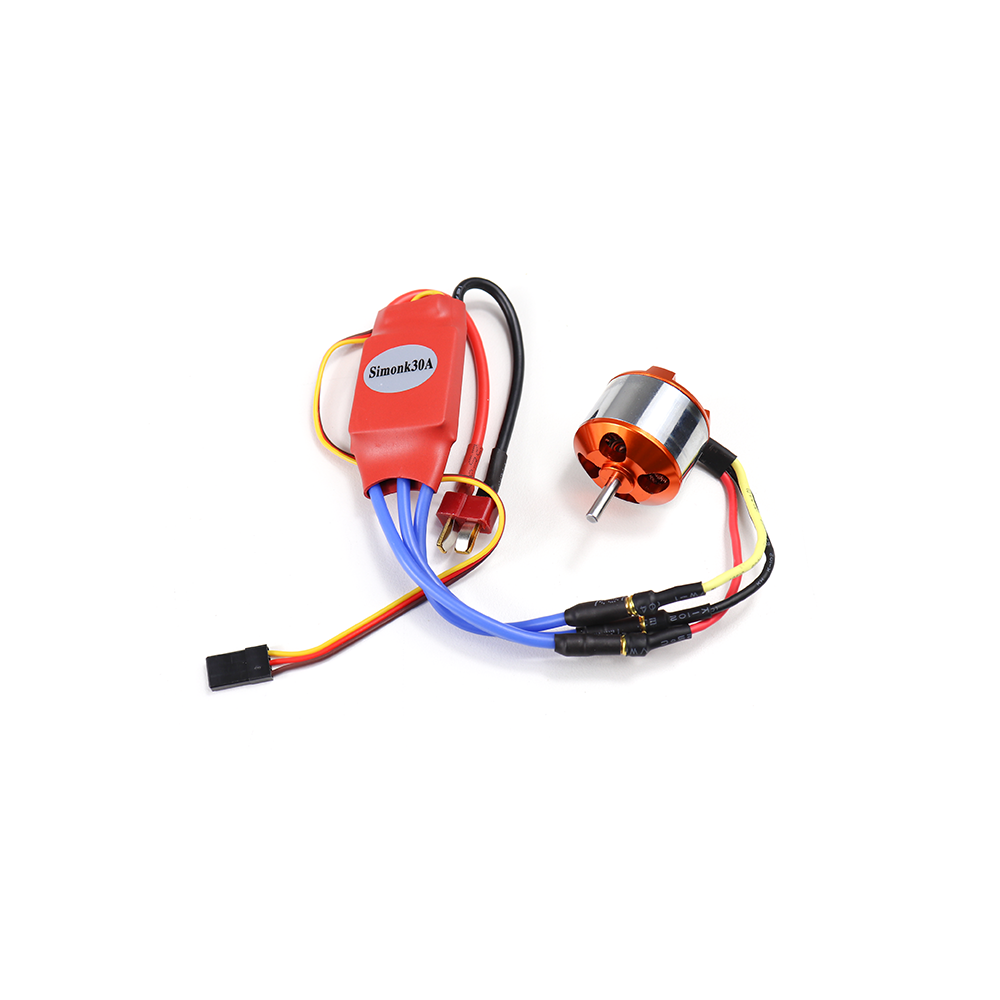

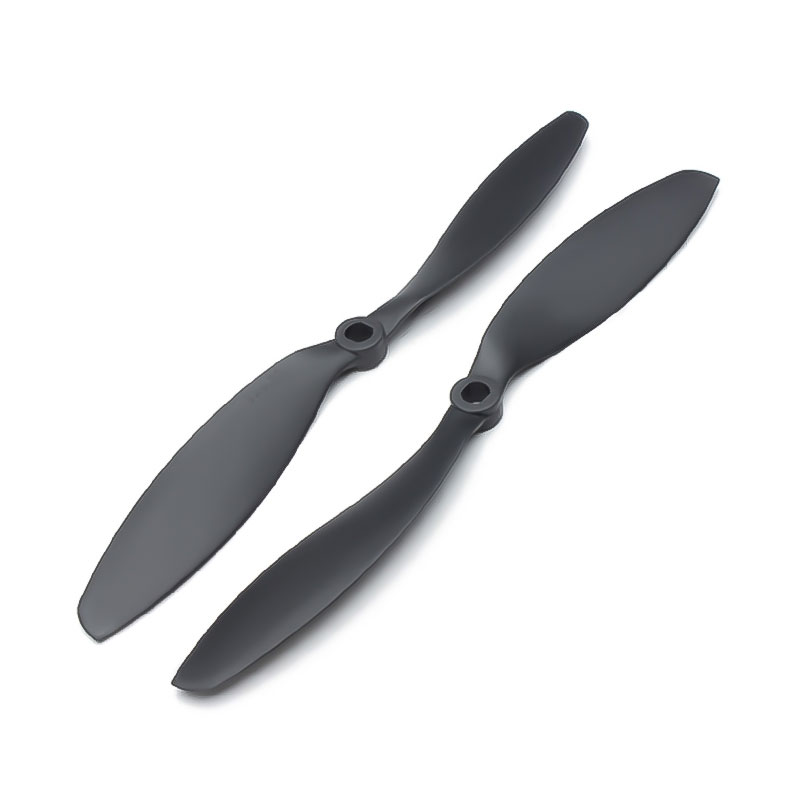

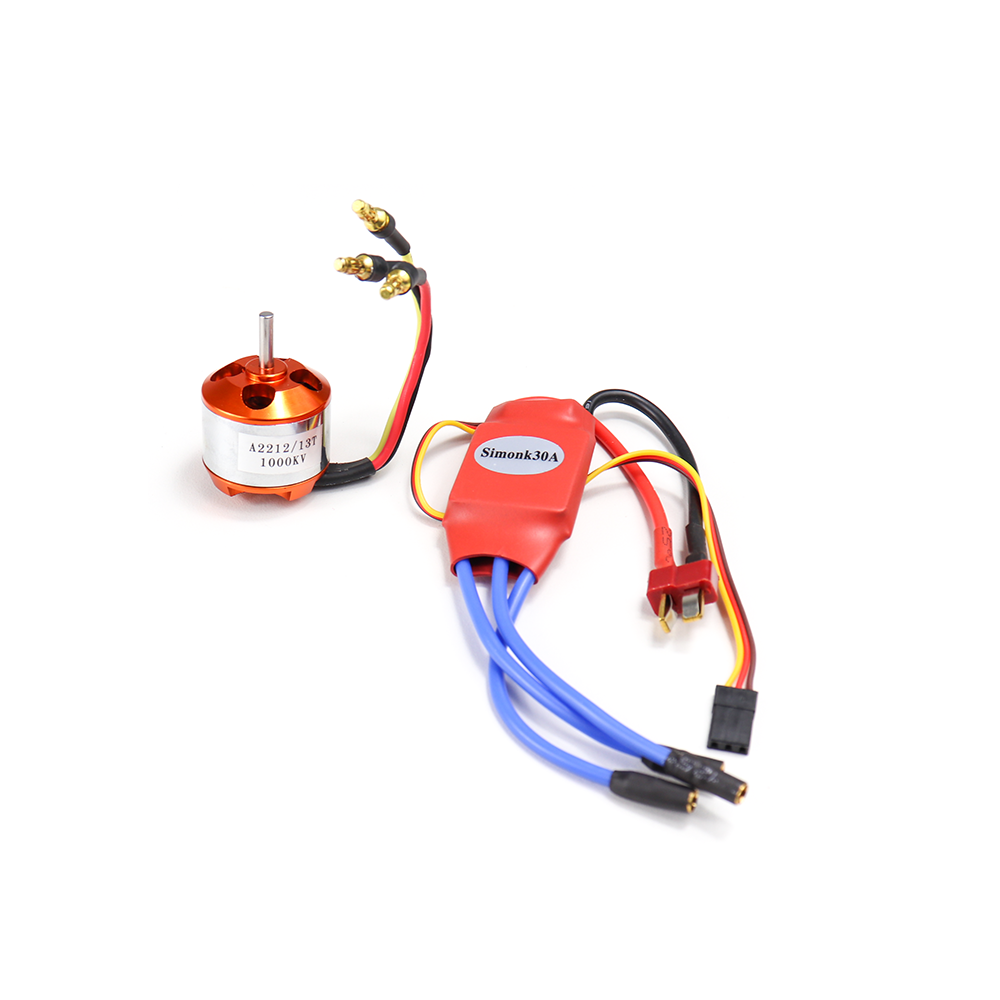

Paired with the SimonK 30A ESCs, this combo establishes a robust electrical propulsion system. The ESCs measure 45x24x9mm and are designed with a low internal resistance of 90mΩ for efficient power delivery. The included OrangeRX HD 1045 propellers, made from black ABS plastic, are 10 inches in diameter with a 4.5-inch pitch, optimized to generate substantial thrust at lower KV and RPMs, making them ideal for 450-class quadcopter frames and similar endurance-focused builds.
Additional Information
| Weight | 0.067 kg |
|---|---|
| Dimensions | 12 × 8 × 5 cm |
