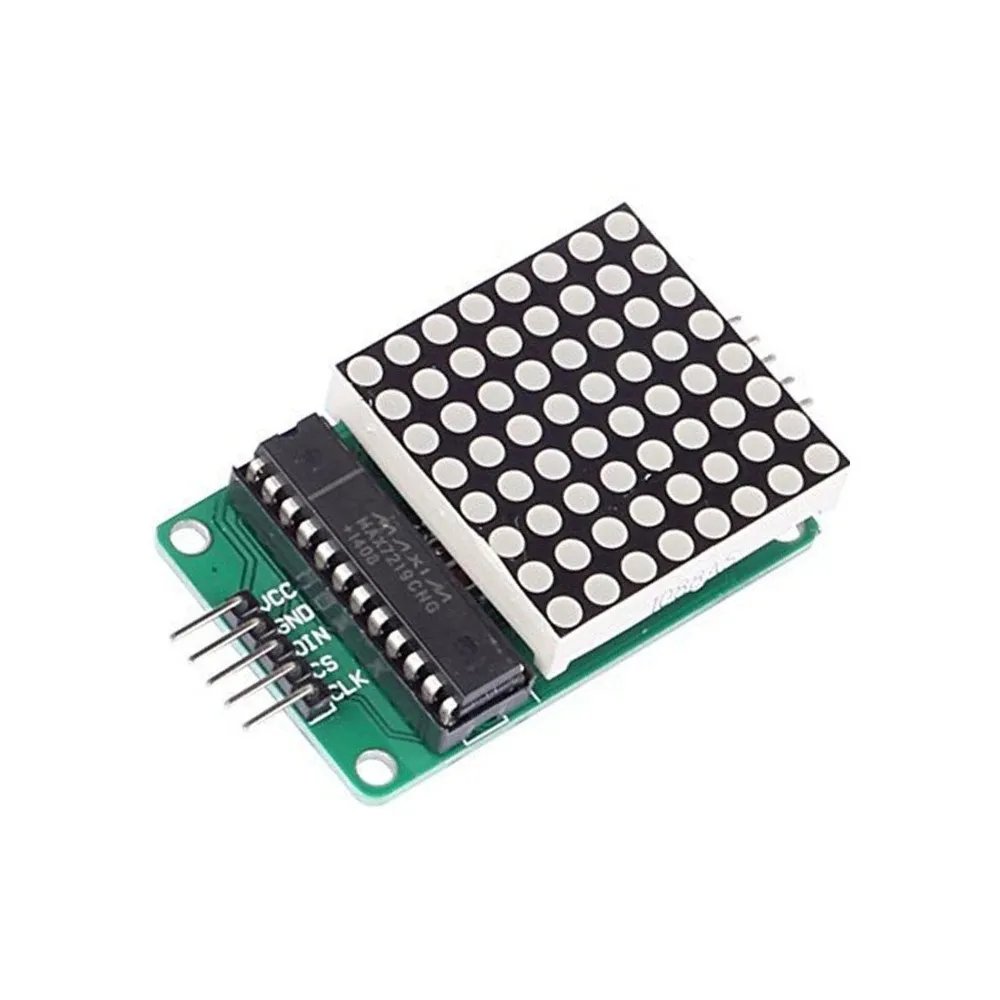

Name: Generic MAX7219 Dot LED Matrix Module | 8x8 Display for MCU | SPI Interface
Brand: Generic
SKU: OL-GEN-MAX7219LED
Price: 149.00 INR
Availability: InStock

Effortless Connectivity

Integrates seamlessly with MCUs using a simple 3-wire SPI interface for rapid project deployment.

Scalable Display Potential

Daisy-chain multiple modules to construct expansive, custom visual output solutions for any application.

Precision Brightness Control

Adjust LED intensity digitally or analogically, ensuring perfect visibility across diverse environmental conditions.

The Engineering Behind MAX7219 Dot LED Matrix Module

The MAX7219 Dot LED Matrix Module is a robust, multiplexed display driver designed to interface an 8×8 LED matrix with a microcontroller using minimal I/O lines. At its core, the module leverages the Maxim Integrated MAX7219 serial input/output common-cathode display driver, efficiently managing individual LED states for dynamic visual output. This architecture significantly reduces the complexity and pin count required for driving large matrix displays.

Engineered for reliability, the module typically features a high-quality PCB with clearly labeled pinouts, ensuring straightforward integration into development boards like Arduino or Raspberry Pi. Its compact design and industrial-grade components ensure stable operation and extended lifespan, making it suitable for both educational prototypes and professional embedded systems.

SPI Serial Interface

The module communicates via a 3-wire SPI (Serial Peripheral Interface) protocol, comprising DIN (data in), CLK (clock), and LOAD (chip select) lines. This efficient serial communication minimizes the number of data lines required from the host microcontroller, freeing up valuable I/O resources for other peripherals. The SPI protocol allows for daisy-chaining multiple modules, enabling the creation of larger, continuous LED displays with expanded visual real estate.

Brightness Control and Decoding Capabilities

Integrated digital and analog brightness control, via intensity registers, allows precise adjustment of the LED luminosity without external components. Additionally, the MAX7219 supports BCD code-B decoding, enabling simplified display of numerical and hexadecimal characters. This dual functionality offers designers unparalleled control over visual presentation and data representation, enhancing user experience and system feedback clarity.

Optimized for Performance & Integration

Driver IC: MAX7219
Display Type: 8×8 Common-Cathode Red Dot Matrix LED
Communication Protocol: SPI (Serial Peripheral Interface)
Operating Voltage: 5V DC
Current Consumption: ~150mA (typical, all LEDs on)
Cascade Support: Daisy-chainable for larger displays
Mounting: Standard header pins for breadboard/PCB mounting

Features & Benefits

MAX7219 Driver IC: Efficiently controls an 8×8 LED matrix with minimal I/O, simplifying your microcontroller projects.
SPI Serial Interface: Utilizes only 3 pins (DIN, CLK, LOAD) for communication, conserving precious microcontroller resources.
Daisy-Chainable Design: Easily connect multiple modules to create larger, continuous scrolling or animated displays.
Adjustable Brightness: Programmatically control LED intensity for optimal visibility in various lighting conditions.
Integrated Decoding: Simplifies displaying numbers and specific characters without complex software routines.
5V DC Operation: Directly compatible with popular microcontrollers like Arduino, ESP32, and Raspberry Pi.

Pro-Grade Advantages

Minimal MCU I/O pins required due to efficient serial SPI communication.
Supports daisy-chaining for expandable, larger multi-matrix displays.
Integrated intensity control and decoding simplify complex display operations.
Robust, compact design suitable for embedded systems and prototyping applications.

Technical Considerations

Common-cathode matrix specific, requiring compatible LED arrays.
Limited to monochrome display unless using specific multi-color matrices.

What is the primary function of the MAX7219 driver IC in this module?

The MAX7219 is a serial input/output common-cathode display driver that controls an 8×8 LED matrix, managing individual LED states and brightness with minimal microcontroller I/O lines.

How does the SPI interface benefit microcontroller integration?

The SPI (Serial Peripheral Interface) uses only three data lines (DIN, CLK, LOAD), significantly reducing the number of microcontroller pins required, thereby freeing up I/O for other peripherals.

Can I connect multiple MAX7219 modules together?

Yes, the MAX7219 module is designed to be daisy-chained, allowing you to connect multiple modules in series to create larger, continuous LED displays from a single microcontroller interface.

What operating voltage does this module require?

This MAX7219 Dot LED Matrix Module typically operates on a standard 5V DC supply, making it compatible with most common development boards like Arduino and Raspberry Pi.

Does the module support brightness control?

Absolutely. The MAX7219 driver IC provides both digital and analog intensity control capabilities, allowing precise programmatic adjustment of the LED display’s brightness.

What kind of LED matrix does this module drive?

The MAX7219 is specifically designed to drive 8×8 common-cathode dot matrix LED displays, offering efficient control over the individual LEDs within the matrix.

Specification	Value
Driver IC	MAX7219
Display Type	8×8 Common-Cathode Red Dot Matrix
Operating Voltage	5V DC
Logic Voltage	5V DC
Communication Protocol	SPI (3-wire)
Number of I/O Pins Used	3 (DIN, CLK, LOAD)
Brightness Control	Digital (16 levels)
Cascade Support	Yes (Daisy-chainable)
LED Color	Red (typical)
Operating Temperature	0°C to 70°C
