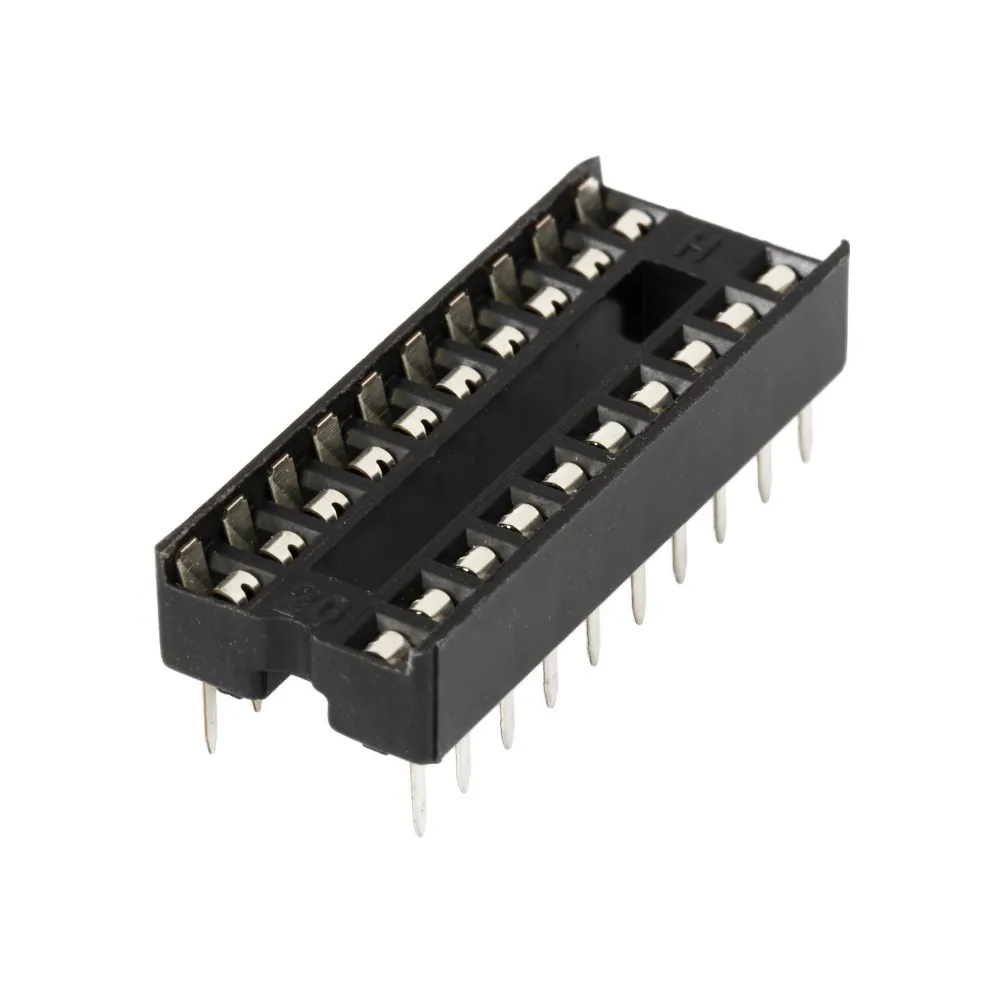

Generic 20 Pin Integrated Circuit (IC) Base DIP Socket – Standard Pitch (Single Unit)
₹45.00₹80.00 (price_including_tax) (-44%)
Achieve reliable circuit integration with this 20-pin DIP IC socket. Facilitates easy installation and removal of DIP package ICs, simplifying prototyping and maintenance. Engineered for consistent electrical contact and mechanical durability in demanding applications.
Reliable 20-pin DIP socket ensures robust IC connections for secure prototyping and permanent circuit integration.
Facilitate quick component changes and extensive circuit testing without damaging sensitive ICs.
Ensures stable, high-integrity connections, critical for sensitive analog and digital signals.
Accelerate development cycles by enabling fast iteration and debugging with minimal effort.
The Engineering Behind 20 Pin DIP IC Sockets
The 20 Pin Dual In-line Package (DIP) IC Socket serves as a critical interface for through-hole integrated circuits, enabling secure and replaceable mounting onto printed circuit boards. Engineered to accommodate standard 20-pin DIP ICs, this component eliminates the need for direct soldering of valuable ICs, protecting them from heat damage during assembly and facilitating rapid prototyping, testing, and field replacement. Its robust design ensures excellent electrical conductivity and mechanical stability.
Constructed from high-grade dielectric materials for insulation and featuring precision-formed contacts, this socket provides a reliable connection point. Its durable build quality is crucial for applications requiring frequent IC insertions and removals, making it indispensable in development environments and for long-term operational integrity. The socket’s architecture is designed to withstand repeated mechanical stress without compromising signal integrity.
Pin-Header Compatibility and Isolation
The primary technical feature of this DIP socket is its precise pin-header compatibility, designed to perfectly align with standard 20-pin DIP packages. Each contact point is engineered for optimal grip and low contact resistance, ensuring that every signal and power line maintains its integrity. This design prevents intermittent connections and signal degradation, which are critical for the stable operation of sensitive integrated circuits.
Enhanced Prototyping Flexibility
This socket significantly resolves traditional operational pain points in prototyping by offering a solderless interface for ICs. Engineers can quickly swap out different ICs for testing, debug circuits without risking damage to microcontrollers or specialized chips, and perform upgrades or repairs efficiently. This flexibility dramatically reduces development time and component expenditure, making it an invaluable tool for any electronics workbench.
Optimized for Performance & Integration
- Pin Count: 20 Pins
- IC Package Type: Dual In-line Package (DIP)
- Mounting Type: Through-hole
- Contact Material: Phosphor Bronze or Beryllium Copper (typical for reliability)
- Insulator Material: PBT or PPS (typical for high temperature/electrical resistance)
- Pitch: 2.54mm (0.1 inch) Standard
- Operating Temperature Range: -40°C to +105°C (typical)
- Current Rating: 1A (per pin, typical)
Features & Benefits
- 20-Pin DIP Configuration: Provides a standardized interface for a wide array of 20-pin through-hole integrated circuits.
- Through-Hole Mounting: Ensures a strong mechanical bond and reliable electrical connection to your PCB.
- IC Protection: Shields delicate ICs from soldering heat, extending their lifespan and preventing damage during assembly.
- Rapid Prototyping: Allows for quick insertion and removal of ICs, streamlining testing and iteration cycles.
- Enhanced Maintainability: Simplifies fault diagnosis and component replacement in finished products or development boards.
- Durable Construction: Manufactured with robust materials for long-term reliability and consistent performance.
Pro-Grade Advantages
- Eliminates soldering stress on sensitive ICs.
- Allows for easy replacement and upgrades of integrated circuits.
- Provides secure mechanical and electrical contact.
- Reduces development time in prototyping and debugging phases.
Technical Considerations
- Adds a small amount of height to the overall circuit profile.
- Can introduce minor parasitic capacitance or inductance at high frequencies.
What is the standard pitch for a 20-pin DIP IC socket?
The standard pitch for a 20-pin DIP IC socket is 2.54mm (0.1 inch), conforming to industry-standard through-hole component spacing.
Can this socket be used with surface-mount (SMT) ICs?
No, this 20-pin DIP socket is specifically designed for Dual In-line Package (DIP) through-hole integrated circuits, not for surface-mount devices.
What materials are typically used for the contacts and body of the socket?
The contacts are typically made from Phosphor Bronze or Beryllium Copper for optimal conductivity and spring retention, while the body uses PBT or PPS for insulation and durability.
What is the maximum operating temperature range for a standard DIP socket?
Most standard DIP sockets, like this 20-pin version, are rated for an operating temperature range of -40°C to +105°C, suitable for most industrial and commercial applications.
Why use a socket instead of directly soldering an IC?
Using a socket prevents heat damage to the IC during soldering, allows for easy replacement or upgrades, and facilitates rapid prototyping and troubleshooting without desoldering components.
| Specification | Value |
|---|---|
| Pin Count | 20 |
| IC Package Type | DIP (Dual In-line Package) |
| Mounting Type | Through-hole |
| Pin Pitch | 2.54mm (0.1 inch) |
| Contact Material | Phosphor Bronze / Beryllium Copper |
| Insulator Material | PBT / PPS |
| Operating Temperature | -40°C to +105°C |
| Max Current Per Pin | 1A |
| Insulation Resistance | > 1000 MΩ |
| Dielectric Withstanding Voltage | > 500VAC |
| Durability | Min. 100 Insertions/Extractions |
Additional information
| Brand | Generic |
|---|---|
| Package | DIP (Dual In-line Package) |
| Value | 20 Pins |
| Max Current | 1A (per pin) |
| Control Interface | Direct Electrical Contact |
