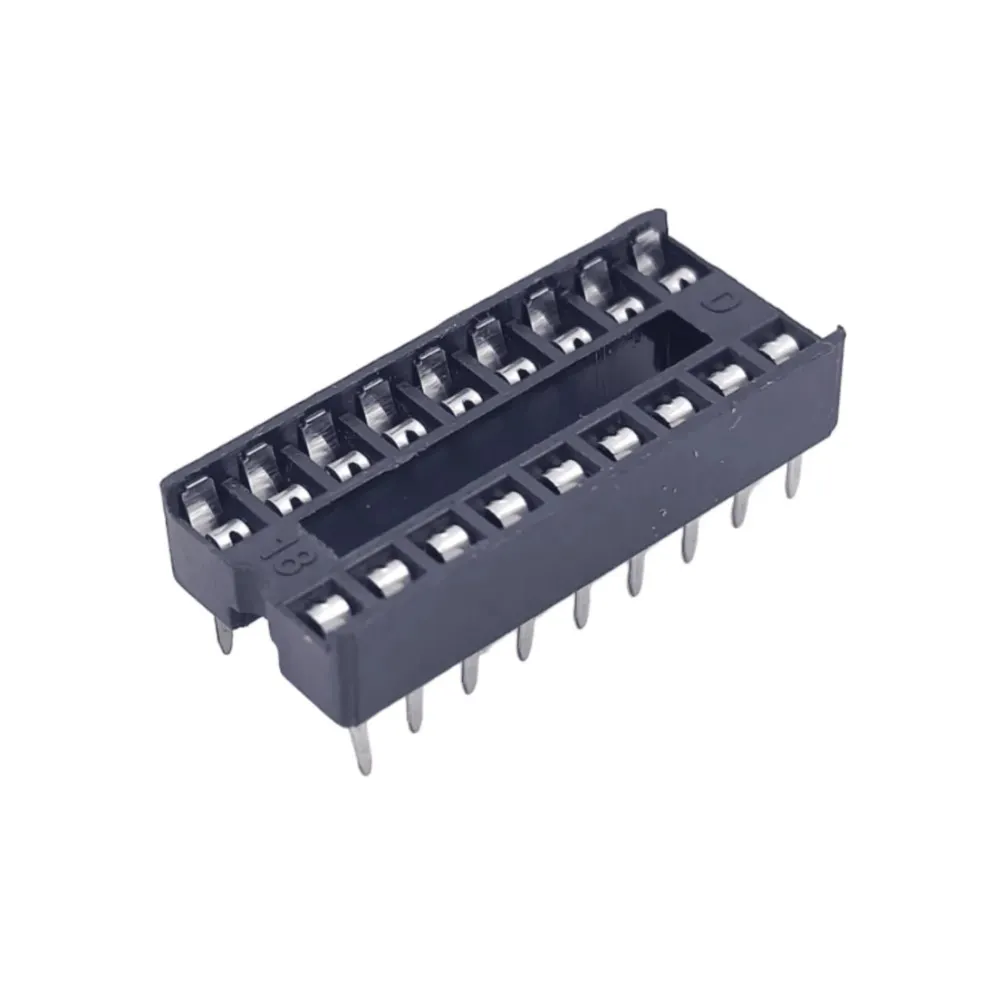

Generic 18 Pin DIP IC Socket | Secure Integrated Circuit Mounting | Easy Prototyping & Replacement
₹45.00₹80.00 (price_including_tax) (-44%)
Offers dependable interfacing for through-hole ICs. Transforms circuit development by enabling solder-free IC installation and quick swapping. Engineered with high-quality materials, ensuring stable performance and prolonged operational life.
This 18-pin DIP socket ensures reliable electrical connections for integrated circuits, facilitating robust prototyping and component interchangeability.
Effortlessly change ICs for testing or upgrades, dramatically accelerating your project development.
Shields sensitive integrated circuit pins from soldering heat and potential physical damage effectively.
Provides a steadfast electrical connection, ensuring consistent performance for all your applications.
The Engineering Behind Generic 18 Pin DIP IC Socket
Primary application: Securely mount 18-pin Dual In-line Package (DIP) integrated circuits onto printed circuit boards (PCBs) without permanent soldering. It acts as an intermediary connection, protecting delicate IC pins during prototyping, testing, or in applications requiring frequent component replacement. The socket design ensures a robust mechanical and electrical interface, crucial for reliable circuit operation.
Structural execution: Manufactured from high-grade PBT (Polybutylene Terephthalate) or similar thermoplastic for insulation, combined with precisely formed tin-plated beryllium copper or phosphor bronze contacts. This construction provides excellent dielectric strength, thermal stability, and corrosion resistance, ensuring long-term contact integrity even under varying environmental conditions. Its durable build supports repeated insertion and extraction cycles.
Universal 18-Pin DIP Compatibility
This socket is meticulously engineered to conform to standard 18-pin DIP footprints, ensuring seamless integration with a vast array of common microcontrollers, memory chips, op-amps, and other logic ICs. This universal compatibility simplifies design processes and inventory management, providing a versatile solution for diverse electronic projects from hobbyist builds to industrial control systems.
Enhanced Prototyping and Maintenance Efficiency
By eliminating the need for direct soldering, this DIP socket dramatically reduces assembly time and simplifies debugging phases. Components can be easily swapped for testing, upgrades, or replacement without risking damage to the PCB or the IC itself. This structural choice resolves traditional pain points associated with desoldering and resoldering, particularly in fault isolation and component lifecycle management.
Optimized for Performance & Integration
- Pin Configuration: 18 Pins
- Package Type: DIP (Dual In-line Package)
- Contact Material: Tin-plated Beryllium Copper / Phosphor Bronze
- Insulation Material: PBT (Polybutylene Terephthalate)
- Contact Resistance: Low, ensuring signal integrity
- Operating Temperature: -55°C to +105°C (typical)
- Insertion Force: Engineered for ease of use while maintaining contact
- Lifespan: Rated for multiple insertion/extraction cycles
Features & Benefits
- 18-Pin DIP Footprint: Guarantees compatibility with a wide range of standard integrated circuits.
- Solderless IC Mounting: Facilitates quick installation, removal, and replacement of chips without direct soldering.
- Durable Construction: Utilizes high-quality plastics and metal contacts for extended operational life and reliability.
- Reduced Prototyping Time: Speeds up development cycles by allowing fast component swaps and debugging.
- Pin Protection: Safeguards delicate IC pins from heat damage during soldering and mechanical stress.
- Reliable Electrical Connection: Ensures stable signal transmission and power delivery to the mounted IC.
Pro-Grade Advantages
- Facilitates rapid prototyping and testing of ICs.
- Protects ICs from heat damage during soldering.
- Allows for easy replacement or upgrade of components.
- Ensures reliable electrical contact over time.
Technical Considerations
- Increases overall PCB height compared to direct soldering.
- Adds a potential point of failure if contacts degrade.
What type of ICs are compatible with this socket?
This socket is designed for 18-pin Dual In-line Package (DIP) integrated circuits, accommodating common logic gates, microcontrollers, and memory chips with that footprint.
Can this socket be reused multiple times?
Yes, the socket is engineered for multiple insertion and extraction cycles, making it ideal for prototyping and testing where components are frequently swapped.
What are the primary benefits of using a DIP socket over direct soldering?
Benefits include easier IC replacement, protection of ICs from soldering heat, and simplified troubleshooting by quickly swapping components.
What material are the contacts made from to ensure reliability?
The contacts are typically made from tin-plated beryllium copper or phosphor bronze, chosen for their excellent conductivity and spring retention properties.
Does using a socket affect signal integrity in high-frequency applications?
For most low to moderate frequency applications, the impact on signal integrity is negligible. For very high-frequency designs, direct soldering is often preferred to minimize parasitic capacitance and inductance.
| Specification | Value |
|---|---|
| Pin Count | 18 |
| Pin Spacing (Pitch) | 2.54 mm (0.1 inch) |
| Row Spacing | 7.62 mm (0.3 inch) |
| Contact Type | Open Frame / Machined Pin |
| Contact Plating | Tin |
| Insulator Material | PBT |
| Current Rating Per Contact | 1 A (Typical) |
| Dielectric Withstanding Voltage | 1000 VAC (Min) |
| Insulation Resistance | 1000 MΩ (Min) |
| Durability | 100 Cycles (Min) |
Additional information
| Brand | Generic |
|---|---|
| Package | DIP |
| Channels | 18 |
| Value | 18 Pin |
| Technology | Interconnect |
