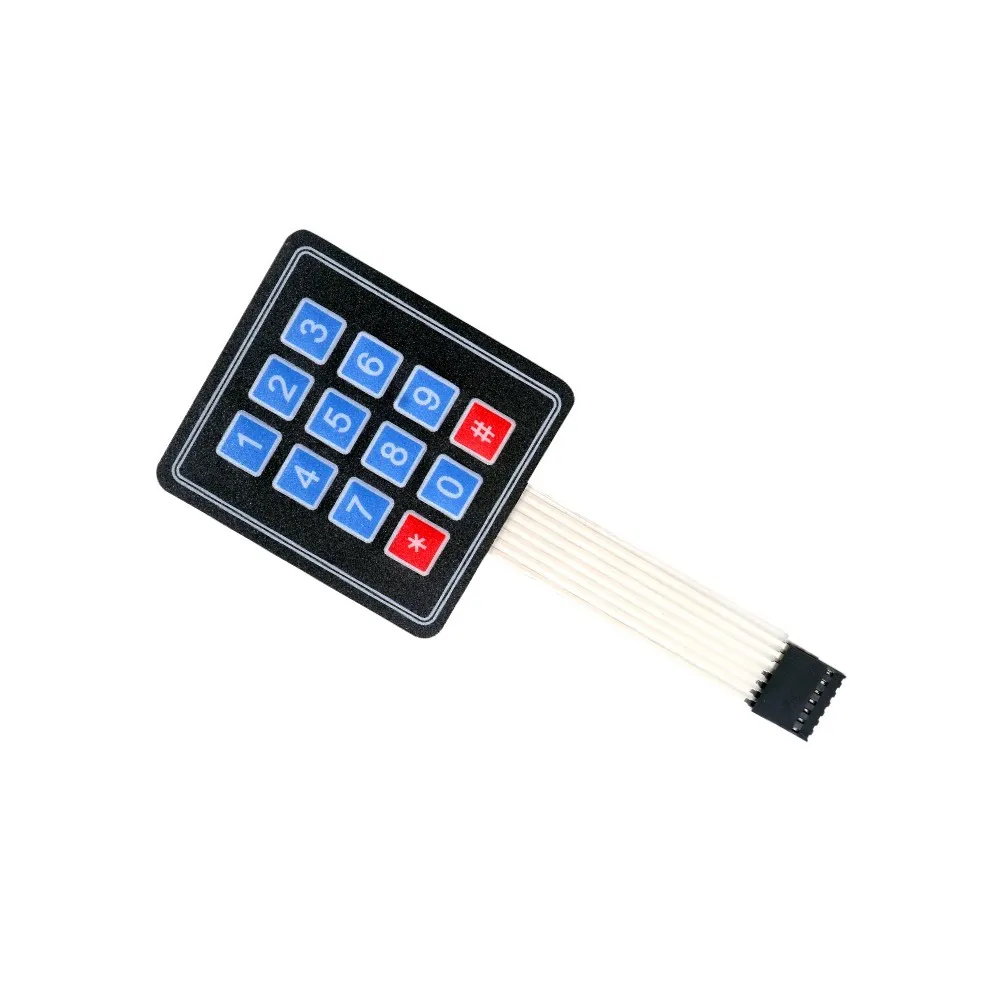

Generic 4×3 Membrane Type Keypad 12 Keys | Tactile Input | Microcontroller Compatible

The Engineering Behind 12-Key Membrane Matrix Keypad

This 4×3 Matrix Membrane Type Keypad serves as a fundamental human interface device for microcontrollers, enabling users to input numerical and functional commands. Its core architecture relies on a row-column scanning mechanism, where pressing a key effectively connects a specific row line to a column line. By cyclically scanning rows and checking for column responses, the microcontroller can precisely identify which of the 12 keys has been actuated, offering a compact and efficient input solution.

Constructed with a thin, flexible PCB substrate and a durable membrane overlay, this keypad offers a low-profile and sealed design, making it resistant to dust and minor liquid spills. The integrated adhesive backing simplifies mounting, allowing for flush integration into control panels or project enclosures. Its robust build quality ensures a high number of actuation cycles, making it suitable for both educational STEM projects and long-term industrial applications.

Efficient Row-Column Scanning

The 4×3 matrix configuration is a hallmark of efficiency. Instead of requiring 12 individual I/O pins for each key, this design ingeniously reduces the pin count to just 7 (4 for rows, 3 for columns). This conservation of precious microcontroller I/O resources is invaluable, especially in projects where pin availability is a limiting factor, enabling more complex functionalities without additional hardware overhead.

Durable Membrane Construction

The keypad’s membrane construction is key to its longevity and versatility. Unlike traditional mechanical buttons that can wear out or accumulate dirt, the sealed membrane protects the internal contacts from environmental contaminants. This design choice resolves common operational pain points such as contact oxidation, premature failure due to debris, and the physical bulk associated with individual switches, offering a reliable, maintenance-free, and slim input solution.

Optimized for Performance & Integration

• Key Layout: 4×3 Matrix
• Number of Keys: 12
• Interface Pins: 7 (4 Rows, 3 Columns)
• Operating Voltage: 3.3V to 5V (Logic Level)
• Connection Type: Female DuPont Jumper Compatible
• Actuation Life: >1,000,000 Presses
• Material: PET Membrane, Flexible PCB
• Mounting: Self-adhesive Backing

Features & Benefits

• 4×3 Matrix Layout: Efficiently provides 12 distinct inputs using only 7 I/O pins, conserving microcontroller resources.
• Membrane Type Construction: Offers a low-profile, dust-resistant, and spill-resistant interface, ideal for various environments.
• Flexible Adhesive Backing: Allows for easy and secure mounting onto flat surfaces, simplifying integration into enclosures.
• Tactile Feedback: Provides a clear response upon key press, ensuring positive user confirmation and improved usability.
• Wide Compatibility: Easily interfaces with Arduino, Raspberry Pi, ESP32, and other microcontrollers for versatile project use.
• High Durability: Engineered for over a million key presses, guaranteeing extended operational life in demanding applications.
