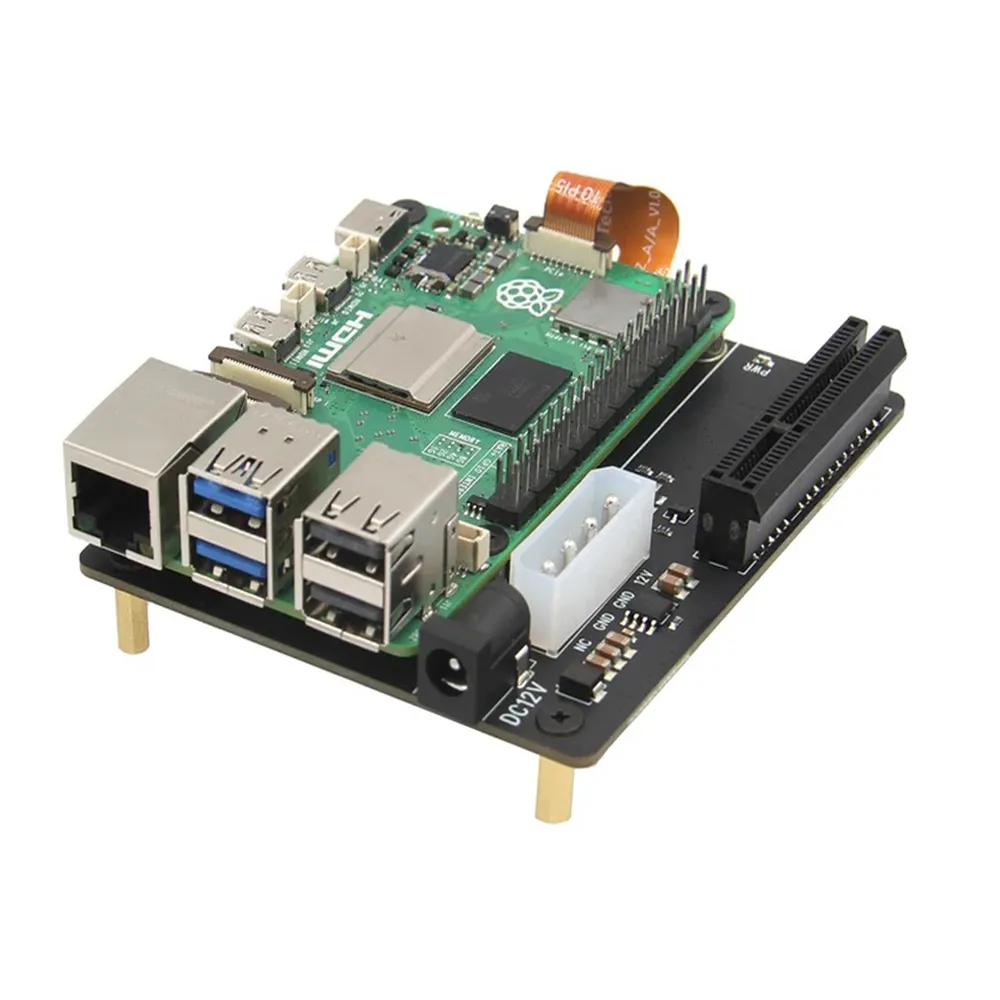

Geekworm X1010 PCIe x4 Expansion Board for Raspberry Pi 5
The Geekworm X1010 is a PCIe FFC to standard PCIe x4 slot expansion board designed for Raspberry Pi 5, enabling seamless integration of various high-speed PCIe add-on cards. It offers versatile power options and efficiently delivers power to both the Pi 5 and connected PCIe devices, enhancing overall system capabilities.
Features
- Enables standard PCIe x4 card connectivity for Raspberry Pi 5 via FFC.
- Offers flexible 12V DC input via jack or ATX 4-pin for robust power delivery.
- Supplies 5.5A to Raspberry Pi 5 and 3.3V at 5.5A for PCIe devices.
- Allows simultaneous use of Raspberry Pi HATs by connecting underneath the Pi 5.
- Supports HAT+ STANDBY power state for intelligent PCIe device power management.
Out of stock
The X1010 PCIe FFC connector to standard PCIe x4 slot expansion board is meticulously engineered for the Raspberry Pi 5, facilitating effortless integration of a broad spectrum of PCIe add-on cards. This includes Graphics Processing Units (GPUs), RAID cards, USB expansion cards, high-speed Ethernet cards, Wi-Fi modules, and NVMe SSDs, all designed to significantly augment the capabilities of your Raspberry Pi 5 for diverse applications.
Featuring versatile power options, the X1010 supports 12V input via a common DC jack (5.5×2.1mm) or an ATX 4-pin peripheral power connector. It is equipped with high-efficiency DC/DC step-down converters that deliver a maximum of 5.5A to power your Raspberry Pi 5 directly via pogo pins, while also providing a stable 3.3V at 5.5A for the connected PCIe device. By connecting to the underside of the Raspberry Pi 5, the X1010 negates the need for GPIO passthrough, ensuring you can seamlessly utilize your preferred HATs alongside the expanded PCIe functionality.
Additional Information
| Weight | 0.09 kg |
|---|---|
| Dimensions | 13 × 11 × 3 cm |
