Geekworm X1002 NVMe M.2 SSD PCIe Bottom Board for Pi 5
The Geekworm X1002 is a bottom-mounted PCIe to NVMe M.2 SSD expansion board designed specifically for the Raspberry Pi 5. It utilizes the Pi 5’s dedicated PCIe interface to provide high-speed data transfer and ultra-fast boot capabilities, supporting various M.2 2230 to 2280 form factors.
Features
- Leverages Raspberry Pi 5’s dedicated PCIe interface for high-speed NVMe M.2 SSD integration.
- Enables ultra-fast boot times and accelerated data transfer rates for enhanced system performance.
- Supports a wide range of NVMe M.2 SSD form factors, including 2230, 2242, 2260, and 2280.
- Designed for bottom-mounting on the Raspberry Pi 5, maintaining compatibility with top-side HATs and active coolers.
- Includes a customized FFC PCIe cable for easy installation and features an “ACT” LED indicator.
Out of stock

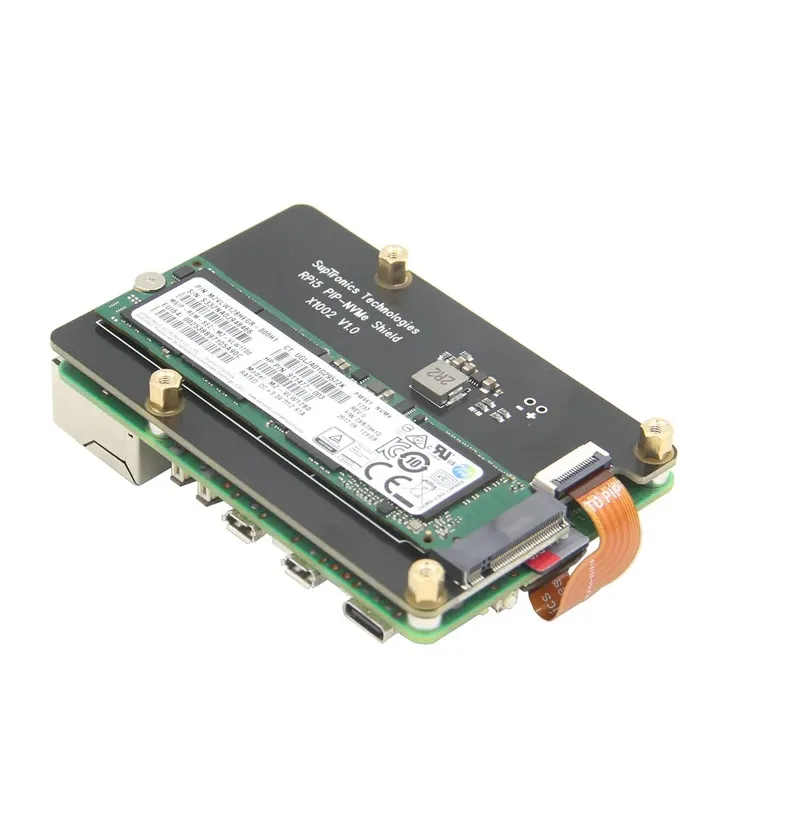

The Geekworm X1002 V1.0 is a dedicated PCIe Peripheral Board (PIP) engineered for seamless integration with the Raspberry Pi 5. This expansion shield directly utilizes the Raspberry Pi 5’s native PCIe interface, transforming it into a high-performance platform for NVMe M.2 SSD storage. By leveraging NVMe technology, the X1002 enables dramatically faster data transfers and significantly accelerates boot times, enhancing the overall responsiveness and capability of your Raspberry Pi 5 system.
Designed specifically for M.2 NVMe SSDs, the X1002 ensures optimal performance while maintaining crucial compatibility. It is important to note that this board is not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other non-NVMe M.2 devices. For new NVMe SSDs, initial partitioning and formatting are required when first connected to the Raspberry Pi 5. The X1002’s bottom-mount form factor ensures full compatibility with other HAT shields mounted on top and supports the installation of official active coolers, allowing for comprehensive system cooling.
Additional Information
| Weight | 0.044 kg |
|---|---|
| Dimensions | 10 × 8 × 2.5 cm |
