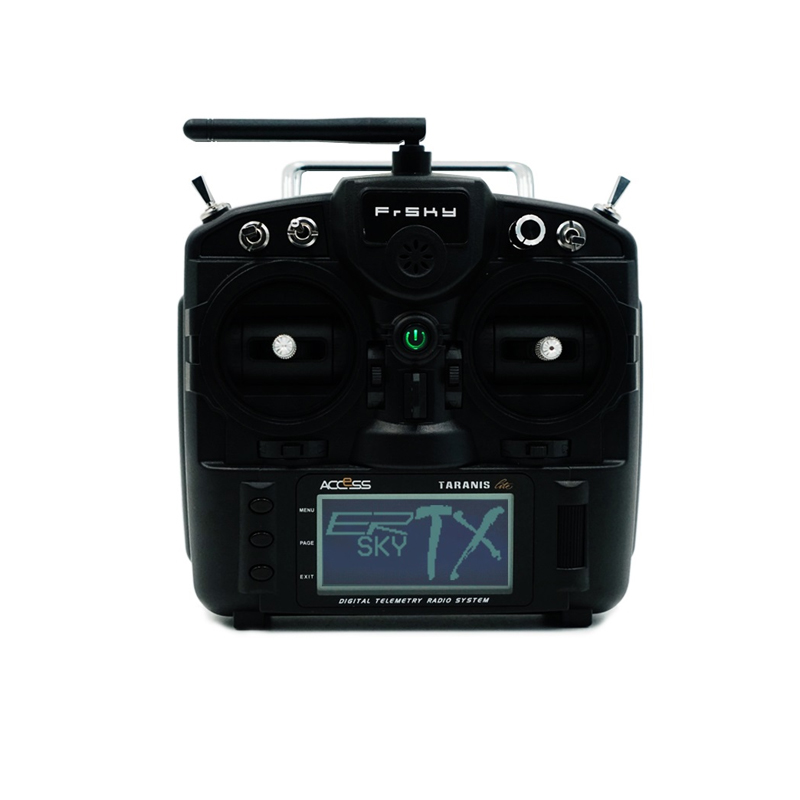

FrSky Taranis X9 Lite ACCESS 2.4G 24CH Radio Transmitter with X8R Receiver - Black

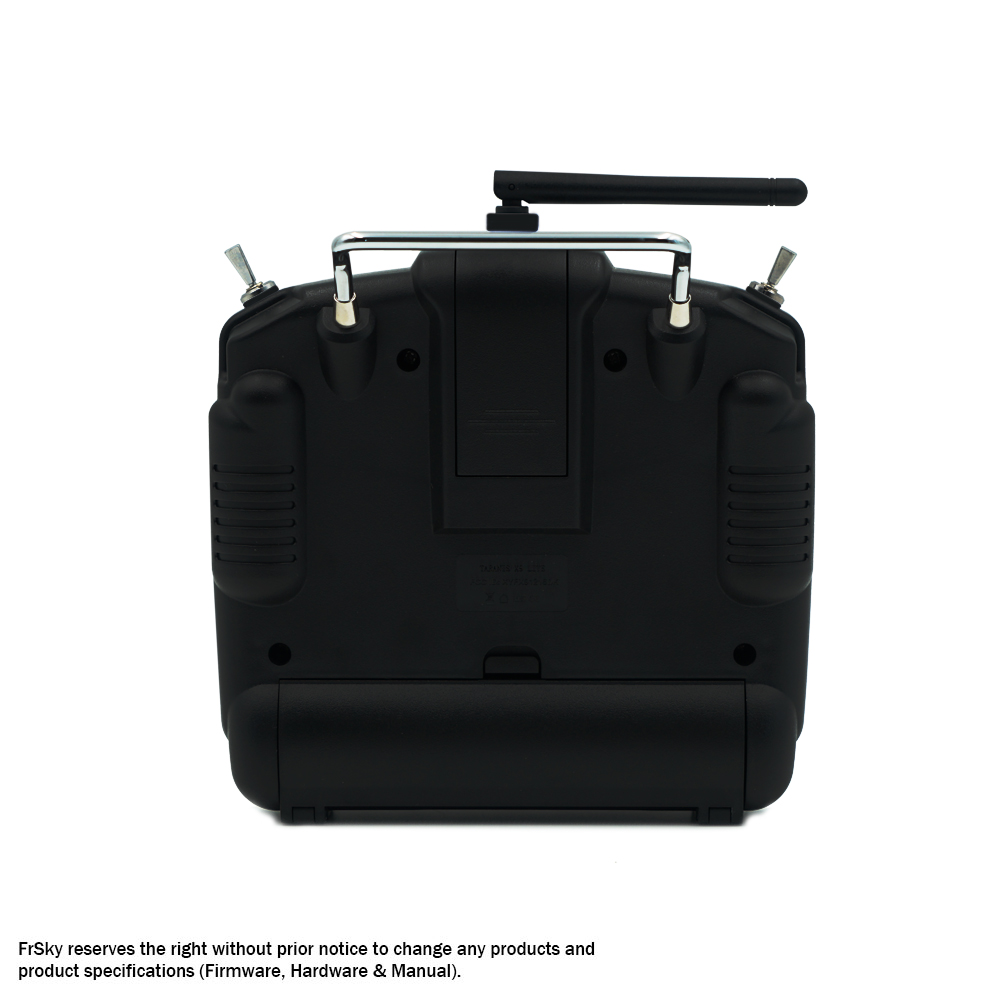

FrSky Taranis X9 Lite ACCESS 2.4G 24CH Radio Transmitter with X8R Receiver - Black - Image 2
SKU: DRFC-3443
📋 GST Invoice Available

FrSky Taranis X9 Lite ACCESS 2.4G 24CH Radio Transmitter with X8R Receiver - Black

₹19,429.00 (Inclusive of all taxes)
Out of Stock

The FrSky Taranis X9 Lite ACCESS is a compact 24-channel radio transmitter featuring the ACCESS protocol for secure, low-latency control, compatible with ACCST D16 and ACCESS receivers. It runs the open-source ErskyTX/OpenTX firmware and includes a full-duplex X8R telemetry receiver for advanced model telemetry.

Features

  • ACCESS protocol for secure, low-latency communication and wireless firmware updates.
  • 24-channel capacity with high-speed digital module interface and spectrum analyzer.
  • Ergonomic compact design with G7 Noble potentiometer gimbals and haptic vibration alerts.
  • OpenTX/ErskyTX firmware with 60 model memories, expandable via Micro SD card.
  • Includes FrSky X8R 8/16ch Full Duplex Telemetry Receiver for advanced telemetry data.

Out of stock

Description

The FrSky Taranis X9 Lite ACCESS transmitter merges a portable, classic grip design with modern RF technology. Its internal ISRM-N module implements the ACCESS protocol, delivering a robust link with features like over-the-air updates and a spectrum analyzer for signal health monitoring. The system operates on a 6.0–8.4V input, typically powered by dual 18650 Li-ion batteries (not included), and draws approximately 190mA at 7.4V.

Built for precision, the transmitter employs G7 Noble potentiometer gimbals for smooth, accurate stick control and includes a backlit 128×64 LCD. Connectivity is comprehensive, featuring Smart Port, Micro USB, and DSC ports for firmware updates, simulator use, and external module attachment. The included X8R receiver provides full duplex telemetry, allowing real-time feedback on flight parameters directly to the transmitter.

Key Features

  • ACCESS Protocol: Enables secure model binding, faster baud rate, lower latency, and wireless firmware updates.
  • G7 Noble Potentiometer Gimbals: Provide high-resolution, smooth control input with excellent centering accuracy.
  • Open-Source Firmware: Runs ErskyTX/OpenTX, offering extensive customization and scripting capabilities for complex models.
  • High-Speed Digital Interface: Supports external modules and features a built-in spectrum analyzer for RF environment analysis.
  • Haptic & Voice Alerts: Delivers tactile vibration and spoken audio feedback for switch positions, timer alerts, and telemetry warnings.
  • Wired Trainer Port: Allows beginners to connect with an instructor's transmitter for safe, guided skill development.
  • Expandable Memory: Stores 60 models internally, with capacity expandable via a Micro SD card slot.
  • Robust Construction: Lightweight yet durable chassis designed for comfortable, extended flight sessions.

Applications

  • FPV Racing Drones: Provides low-latency control and telemetry for 5-inch and larger racing quadcopters.
  • Freestyle & Cinematic FPV Builds: Customizable OpenTX scripts and 24 channels support complex gimbal and VTX control.
  • Fixed-Wing & Glider Models: The X8R receiver's full-range telemetry is ideal for monitoring altitude, vario, and RSSI.
  • Scale & Warbird RC Aircraft: High channel count accommodates multi-servo setups, retracts, and lighting systems.
  • Drone Training & Instruction: The wired trainer function allows an instructor to take over control for beginner pilots.

Technical Specifications

Item TypeTransmitter
Channels24
RF ProtocolFrSky ACCESS, ACCST D16
Internal RF ModuleISRM-N
Operating Voltage6.0–8.4 VDC
Operating Current~190mA @ 7.4V
Operating Temperature-10°C to 60°C (14°F to 140°F)
DisplayBacklit LCD, 128 x 64 pixels
FirmwareErskyTX / OpenTX
Model Memory60 models (expandable via Micro SD)
GimbalsG7 Noble Potentiometer
Default ModeMode 2 (Left-Hand Throttle)
ConnectivitySmart Port, Micro USB, DSC Port, Micro SD Slot
Weight (without battery)505 g
Dimensions (L x W)184 x 170 mm
Included ReceiverFrSky X8R 8/16ch Full Duplex Telemetry Receiver

Frequently Asked Questions

What receivers are compatible with the Taranis X9 Lite ACCESS transmitter?

The X9 Lite ACCESS transmitter is natively compatible with all FrSky receivers using the ACCST D16 v2.x and ACCESS protocols, including the included X8R. It can also bind to older ACCST D16 v1.x receivers via a firmware update on the receiver. For legacy ACCST D8 receivers, an external multimodule or a firmware-downgraded external XJT module may be required.

Can I update the firmware wirelessly with ACCESS?

Yes, a key feature of the ACCESS protocol is Wireless Firmware Update (WFU). This allows you to update the firmware of both the internal ISRM-N module in the transmitter and any bound ACCESS-compatible receiver (like an Archer series) over the air, without needing a physical cable connection, provided both devices support the feature.

What type of batteries does the X9 Lite use, and are they included?

The X9 Lite transmitter is designed to use two replaceable 18650 Li-ion batteries with button-top contacts. The batteries are not included in the package. The operating voltage range is 6.0V to 8.4V, making it compatible with standard 2S Li-ion packs or two individual 18650 cells in series.

How do I use the wired trainer function?

Connect a standard 3.5mm mono audio cable from the DSC port on the back of the instructor's transmitter to the DSC port on the student's X9 Lite. Within the OpenTX/ErskyTX model setup menu on the instructor's radio, you can configure the trainer mode to send specific channels or full control to the student's transmitter, allowing for instant instructor takeover if needed.

Package Includes

  • 1 x FrSky Taranis X9 Lite ACCESS Transmitter (Black)
  • 1 x FrSky X8R 8/16ch Full Duplex Telemetry Receiver
  • 1 x User Manual

Additional Information

Weight 0.505 kg
Dimensions 18.4 × 17 cm
