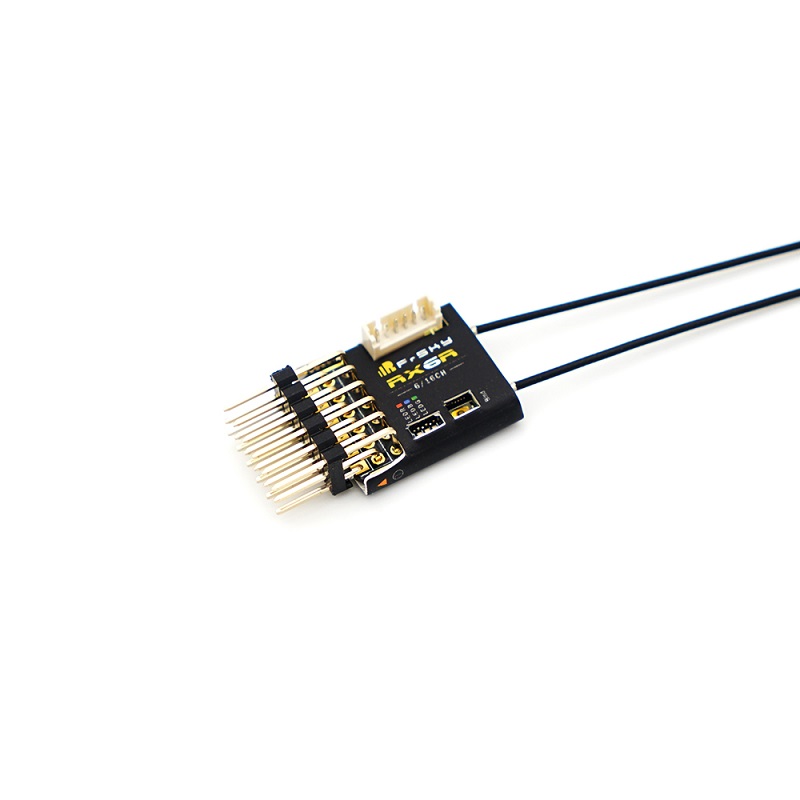

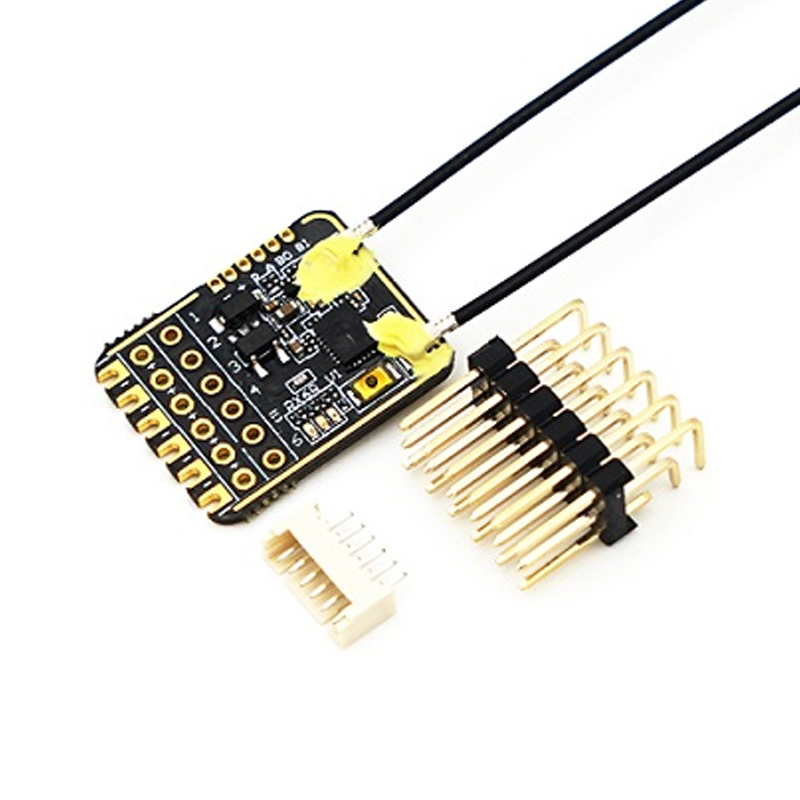

FrSky RX6R Receiver 6/16 Channels
The FrSky RX6R is a high-sensitivity, 6/16-channel PWM receiver designed for FPV and RC aircraft, featuring a 40% range increase over previous X-series models, redundancy support, Smart Port telemetry, and low-latency 9ms PWM output for precise control.
Features
- 40% increased range sensitivity over previous FrSky X-series receivers.
- 6 high-precision PWM outputs with 9ms lower latency in high-speed mode.
- Supports receiver redundancy for failsafe backup system integration.
- Smart Port enabled for real-time telemetry data transmission.
- Low power consumption of 100mA at 5V operating voltage (3.5V-10V).
Out of stock
The FrSky RX6R Receiver consolidates advanced RF performance into a compact, standalone unit, delivering 6 direct PWM channels and access to all 16 channels via its SBUS output. Its redesigned RF front-end provides a significant 40% increase in operational range and link reliability compared to legacy X-series hardware, making it suitable for long-range FPV and fixed-wing applications where signal integrity is critical.
Engineered for low-latency control, the RX6R reduces PWM output delay by 9ms in high-speed mode, enhancing responsiveness for acrobatic and racing drones. The integrated redundancy function allows a secondary receiver to be paired as a hot backup, ensuring continuous control link preservation. A conformal coating protects the PCB from moisture and debris, while dual detachable IPEX 4 antennas provide flexible installation and optimal polarization.
Additional Information
| Weight | 0.0029 kg |
|---|---|
| Dimensions | 2.11 × 1.7 × 0.73 cm |
