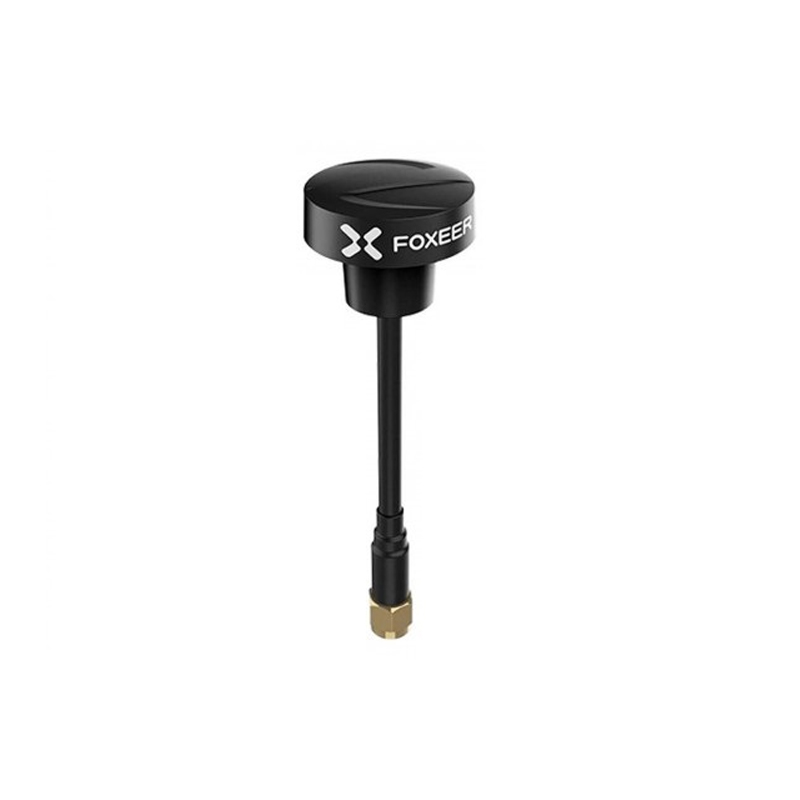

Foxeer Pagoda Pro 5.8GHz RHCP Omni FPV Antenna - Black
The Foxeer Pagoda Pro is a 5.8GHz RHCP omnidirectional FPV antenna engineered for reliable signal reception and 360-degree coverage, compatible with standard RP-SMA connectors on VTXs and goggles.
Features
- 5.8GHz RHCP (Right Hand Circular Polarization) design for enhanced signal clarity and reduced multi-path interference.
- 3dBi gain with a wide 5.5GHz to 6GHz bandwidth for stable video link performance across common FPV channels.
- High radiation efficiency of 98% and low SWR (<1.22) for optimal power transfer and signal integrity.
- Durable PC+ABS composite construction in a compact, lightweight (11.5g) form factor to minimize airframe drag.
- Omnidirectional radiation pattern provides consistent 360-degree coverage for flexible flight orientations.
Out of stock
The Foxeer Pagoda Pro antenna utilizes a refined circularly polarized pagoda design to deliver robust 5.8GHz video transmission for FPV drones. Its Right Hand Circular Polarization (RHCP) is engineered to mitigate signal nulls and fading caused by reflections, providing a cleaner video feed in complex environments like race courses or urban areas. The antenna maintains a stable impedance match, evidenced by its low SWR, ensuring efficient power transfer from your video transmitter.

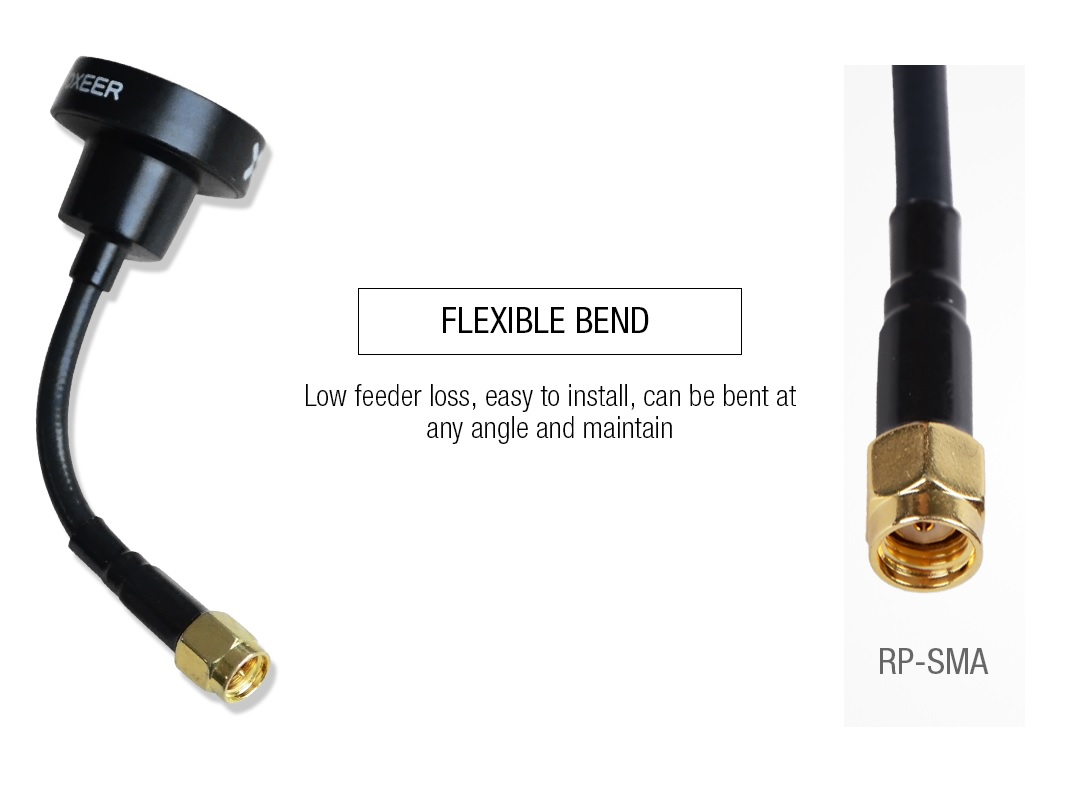

Constructed from impact-resistant PC+ABS materials, the Pagoda Pro is built to withstand the physical demands of FPV racing and freestyle crashes. Its compact dimensions (86mm length, 17x23mm base) and minimal weight contribute to a streamlined aerodynamic profile without compromising on reception quality. The integrated RP-SMA connector ensures broad compatibility with a wide range of FPV video transmitters and receiver modules.
Additional Information
| Weight | 0.0115 kg |
|---|---|
| Dimensions | 8.6 × 2.3 × 1.7 cm |
