SKU: DRFC-3346
📋 GST Invoice Available

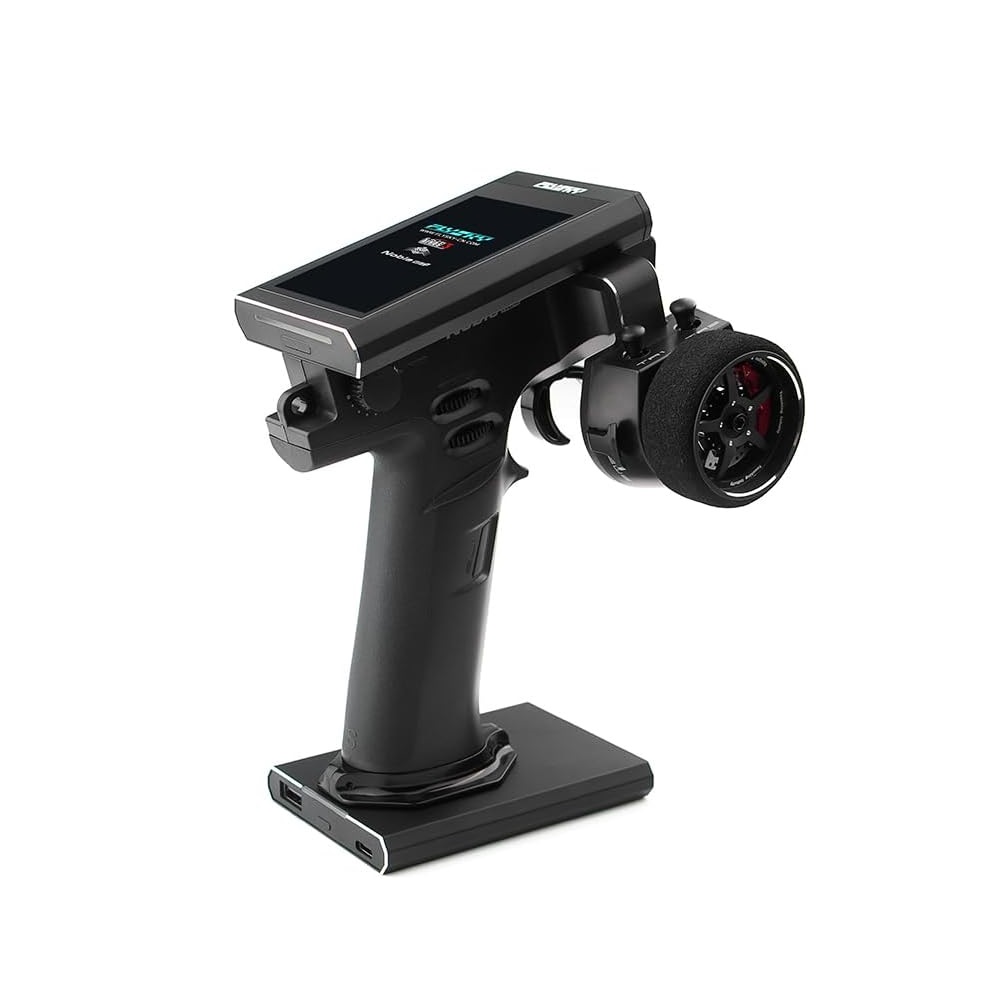

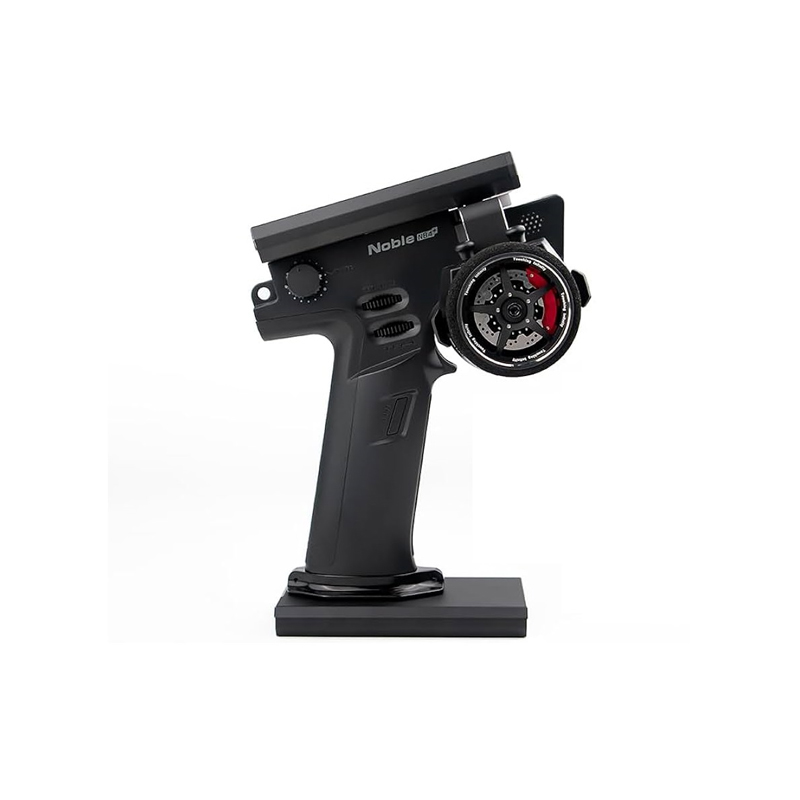

FlySky Noble NB4+ Radio Transmitter - Black

₹24,019.00 (Inclusive of all taxes)
Out of Stock

The FlySky Noble NB4+ is an 8-channel 2.4GHz AFHDS 3 protocol radio transmitter featuring a high-resolution color touchscreen and extensive telemetry support, designed for advanced RC car, boat, and multirotor applications.

Features

  • Advanced 2.4GHz AFHDS 3 protocol with frequency hopping for robust, low-interference control links.
  • High-resolution 3.5-inch IPS color touchscreen for intuitive menu navigation and telemetry data display.
  • Supports real-time telemetry monitoring for vehicle speed, temperature, and battery voltage.
  • Programmable multi-channel mixing and multiple model memory slots for versatile setup management.
  • Dual internal power system with a 1S 4300mAh LiPo and a 3450mAh 18650 cell for extended operational time.

Out of stock

Description

The FlySky Noble NB4+ transmitter integrates professional-grade RF engineering with an ergonomic, user-focused interface. Its AFHDS 3 technology ensures a secure digital link with advanced frequency hopping, providing reliable control for high-speed and long-range applications where signal integrity is critical.

Built around a powerful 32-bit processor, the system delivers 4096-step channel resolution for precise control input. The dual-battery power architecture offers redundancy and extended field runtime, supporting intensive use in competitive and recreational environments. The chassis is designed for prolonged, comfortable handling, reducing operator fatigue during extended sessions.

Key Features

  • AFHDS 3 2.4GHz digital spread spectrum protocol with <20 dBm output power.
  • 3.5-inch 320x480 full-dot Matrix IPS capacitive touchscreen display.
  • Comprehensive telemetry support for real-time vehicle parameter feedback.
  • 8 proportional channels with programmable endpoints, curves, and mixing.
  • High-capacity model memory for storing complex configurations for multiple vehicles.
  • Dual USB Type-C ports for data output and battery charging.
  • Integrated low-voltage alarm for the transmitter's internal battery.
  • Ergonomic grip design with customizable switch and control layouts.

Applications

  • High-performance RC car and truck racing requiring precise throttle and steering control.
  • FPV drone and multirotor builds utilizing compatible AFHDS 3 protocol receivers.
  • Scale boat and marine RC models where reliable long-range control is essential.
  • Competitive surface vehicle platforms leveraging advanced telemetry for performance tuning.
  • Multi-model enthusiasts needing a single transmitter for a fleet of different vehicles.

Technical Specifications

Item TypeController
Channels8
Frequency2.4 GHz ISM Band
ProtocolAFHDS 3
Transmitting Power< 20 dBm
Channel Resolution4096
Display3.5-inch 320x480 IPS Touchscreen
Input Power1S 4.35V 4300mAh LiPo + 3450mAh 18650 Battery
Low Voltage Alarm< 3.65V
Data/Charging PortUSB Type-C
Antenna TypeBuilt-in Single Antenna
Operating Humidity20% to 95%
ColorBlack

Frequently Asked Questions

What receivers are compatible with the FlySky Noble NB4+ transmitter?

The Noble NB4+ is exclusively compatible with receivers using the FlySky AFHDS 3 protocol. This includes receivers like the FGr4S, FGr8S, and FGr12S. It is not backward compatible with older AFHDS 2A or AFHDS receivers.

How do I set up telemetry on the Noble NB4+ for my FPV drone?

First, ensure you are using an AFHDS 3 receiver with telemetry output pins (e.g., FGr8S). Connect the telemetry wire from the receiver to a dedicated telemetry pad on your flight controller. Then, within the NB4+'s model menu, enable the telemetry sensors for the specific data you wish to display, such as battery voltage or RSSI strength.

What is the purpose of the dual battery system in the NB4+?

The dual battery system, comprising a 1S 4300mAh LiPo and a 3450mAh 18650 cell, provides extended operational runtime and power redundancy. The system is designed to draw from both sources efficiently, significantly increasing time between charges compared to single-battery transmitters, which is crucial for long event days.

Package Includes

  • 1 x FlySky Noble NB4+ Transmitter (Black)

Additional Information

Weight 1.228 kg
Dimensions 25 × 24 × 10 cm
