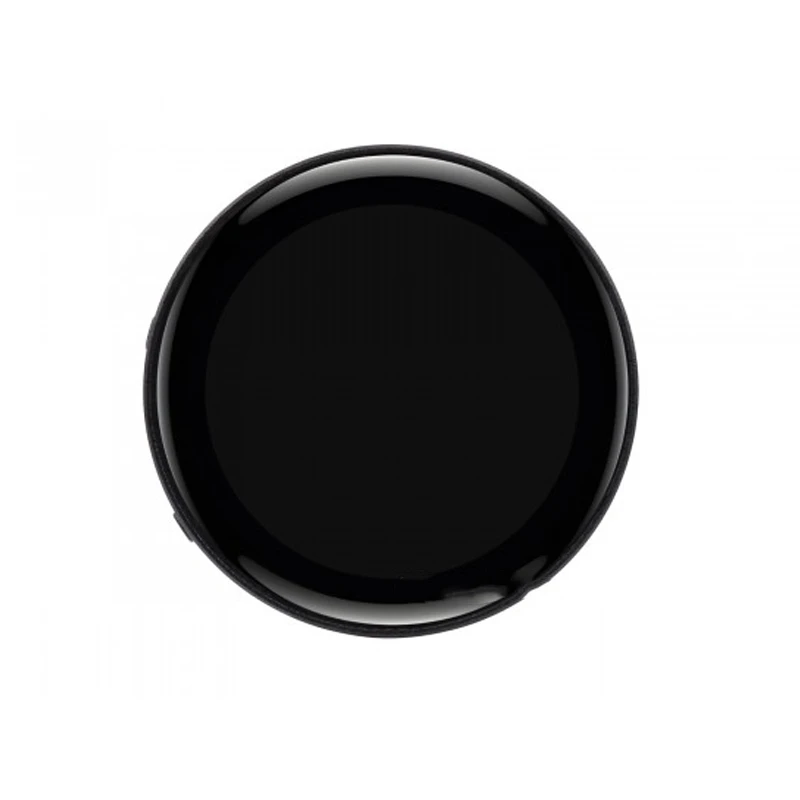

Waveshare ESP32-S3 1.43-Inch AMOLED Display Dev Board w/ IMU & CNC Case

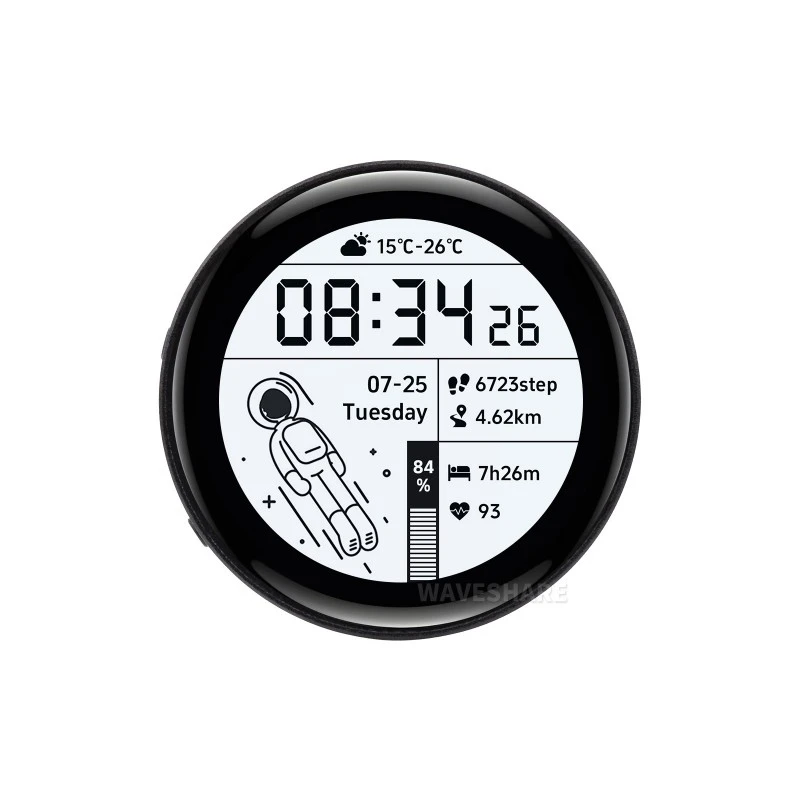

Waveshare ESP32-S3 1.43-Inch AMOLED Display Dev Board w/ IMU & CNC Case - Image 2

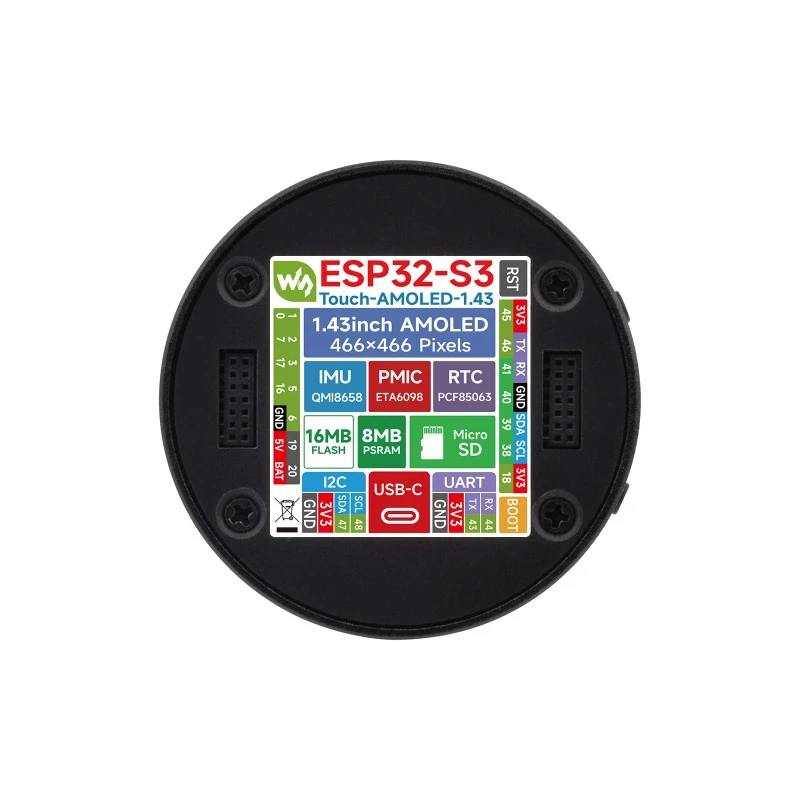

Waveshare ESP32-S3 1.43-Inch AMOLED Display Dev Board w/ IMU & CNC Case - Image 3

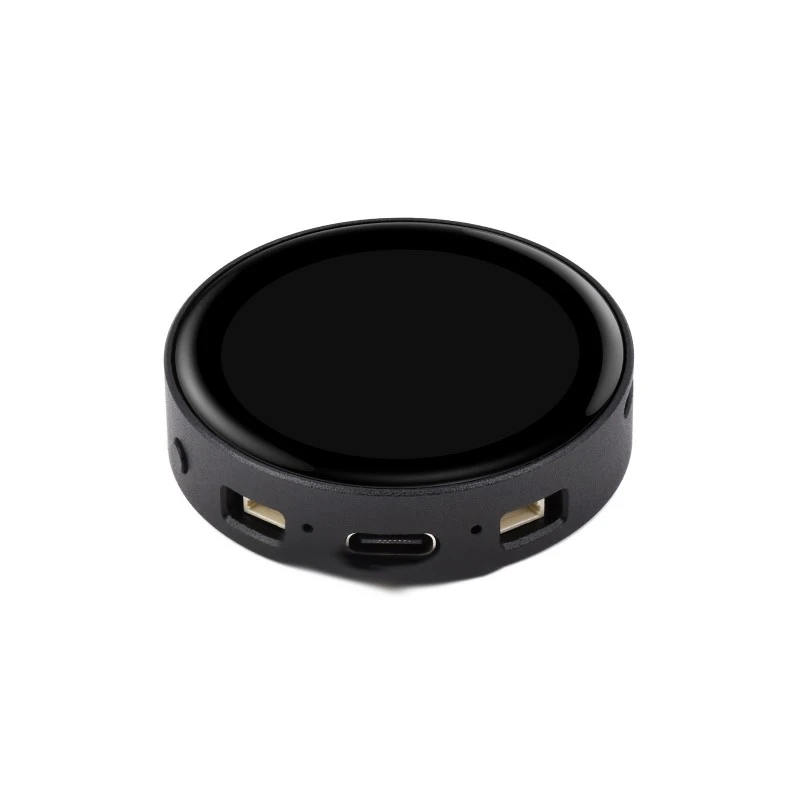

Waveshare ESP32-S3 1.43-Inch AMOLED Display Dev Board w/ IMU & CNC Case - Image 4
SKU: IOWC-0913
📋 GST Invoice Available

Waveshare ESP32-S3 1.43-Inch AMOLED Display Dev Board w/ IMU & CNC Case

₹3,779.00 (Inclusive of all taxes)
Out of Stock

The Waveshare ESP32-S3 AMOLED Display Development Board integrates a 1.43-inch round capacitive touchscreen, a 6-axis IMU sensor, and Wi-Fi/Bluetooth 5 LE connectivity on a compact platform. Powered by the ESP32-S3R8 dual-core processor with 16MB Flash and 8MB PSRAM, it is ideal for GUI-driven IoT, HMI, and wearable projects using ESP-IDF or Arduino IDE.

Features

  • ESP32-S3R8 dual-core LX7 processor (240MHz) with 16MB Flash & 8MB PSRAM for smooth graphics and multitasking.
  • High-resolution 1.43-inch AMOLED round display (466×466) with capacitive touch via I2C for rich user interfaces.
  • Integrated QMI8658 6-axis IMU (accelerometer & gyroscope) for motion sensing and gesture-based control applications.
  • Dual wireless connectivity with 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 LE for IoT and smart device projects.
  • Includes CNC metal case for durability, plus USB-C, TF card slot, RTC, and lithium battery support for portable designs.

Out of stock

Description

This Waveshare development board is engineered for advanced embedded applications requiring a high-quality graphical interface and sensor fusion. The ESP32-S3R8 provides robust processing power and ample memory to run LVGL-based graphical frameworks alongside wireless communication stacks. The QSPI interface to the SH8601/C05300 display driver ensures fast graphics rendering on the vibrant AMOLED screen.

Power management is handled via the onboard PCF85063 RTC chip and lithium battery charging circuit, enabling low-power operation in portable devices. The inclusion of a 6-axis IMU sensor opens possibilities for orientation tracking, gesture recognition, and motion-activated controls. Multiple GPIO expansion headers, UART, and I2C interfaces offer flexibility for connecting additional peripherals in complex embedded systems.

Key Features

  • High-performance ESP32-S3R8 dual-core processor with 240MHz clock speed for responsive GUI and IoT tasks.
  • Vibrant 1.43-inch round AMOLED display with 466x466 resolution, 16.7M colors, and 350 cd/m² brightness.
  • Capacitive touch interface (FT3168/FT6146 IC) supporting multi-point touch for interactive control panels.
  • Onboard QMI8658 6-axis IMU providing precise accelerometer and gyroscope data for motion sensing.
  • Dedicated RTC with backup battery support for timekeeping and wake-up functions in low-power modes.
  • TF card slot for expanding storage capacity for media files, data logging, or firmware assets.
  • USB Type-C interface for streamlined programming, debugging, and 5V power delivery.
  • Robust CNC machined aluminum enclosure included for mechanical protection and a professional finish.

Applications

  • Smart wearable devices and fitness trackers with graphical displays.
  • Industrial Human-Machine Interface (HMI) panels and control units.
  • Portable IoT data loggers and environmental monitoring stations.
  • Interactive smart home control panels and automation hubs.
  • Prototyping for consumer electronics with motion sensing and touch UI.

Technical Specifications

Microcontroller/SoCESP32-S3R8 (Xtensa LX7 Dual-Core)
Wireless ProtocolsWi-Fi 802.11 b/g/n, Bluetooth 5 LE
CPU FrequencyUp to 240MHz
Flash Memory16MB
PSRAM8MB
Display Type1.43-inch Round AMOLED
Display Resolution466 x 466 pixels
Touch InterfaceCapacitive (I2C)
IMU SensorQMI8658 6-axis (Accelerometer + Gyroscope)
Storage ExpansionTF Card Slot
RTC ChipPCF85063
USB InterfaceType-C
Battery Support3.7V Lithium (MX1.25 connector)
GPIO InterfacesUART, I2C, GPIO Headers

Frequently Asked Questions

How do I program the Waveshare ESP32-S3 AMOLED board?

You can program it using the Arduino IDE with the ESP32 board package or the official ESP-IDF framework. Connect via the USB Type-C port, select the correct COM port, and choose the 'ESP32S3 Dev Module' board. The display and IMU sensor typically require installing specific libraries from Waveshare's GitHub repository or the Arduino Library Manager for full functionality.

What is the purpose of the QMI8658 sensor on this board?

The QMI8658 is a 6-axis inertial measurement unit (IMU) combining a 3-axis accelerometer and a 3-axis gyroscope. It provides motion data for applications like gesture recognition, step counting, orientation detection, and tilt sensing. You can access its data via I2C, and example code is usually provided to read raw acceleration and gyroscope values for your embedded projects.

Can I power this development board with a battery?

Yes, the board supports a 3.7V lithium polymer battery via the onboard MX1.25 connector. It includes a charging circuit, so you can recharge the battery while the board is powered via USB Type-C. This feature is essential for creating portable, wearable, or field-deployed IoT devices that need to operate untethered for extended periods.

Which graphical library is recommended for the AMOLED display?

LVGL (Light and Versatile Graphics Library) is highly recommended and widely supported for this display. It is a free, open-source embedded graphics library optimized for microcontrollers like the ESP32-S3. Waveshare often provides example projects using LVGL to create interactive UIs with buttons, charts, and animations, leveraging the display's high resolution and color depth.

How do I connect external components using the GPIO headers?

The board exposes multiple GPIO pins via standard 2.54mm pitch headers. Refer to the pinout diagram from Waveshare to identify UART, I2C, SPI, and general-purpose digital/analog pins. You can connect sensors, actuators, or communication modules using jumper wires or compatible connectors. Ensure your external devices operate at 3.3V logic levels to match the ESP32-S3's I/O voltage.

Package Includes

  • 1 x Waveshare ESP32-S3 1.43-inch AMOLED Display Development Board (with CNC Metal Case)
  • 2 x SH1.0 4PIN cable (~100mm)

Additional Information

Weight 0.56 kg
Dimensions 9 × 11 × 4 cm
