FlySky FS-iA6 6CH AFHDS 2A 2.4G Radio Receiver
FlySky FS-iA6 6CH AFHDS 2A 2.4G Radio Receiver - Image 2
FlySky FS-iA6 6CH AFHDS 2A 2.4G Radio Receiver - Image 3
FlySky FS-iA6 6CH AFHDS 2A 2.4G Radio Receiver - Image 4
FlySky FS-iA6 6CH AFHDS 2A 2.4G Radio Receiver - Image 5
SKU: DRFC-3335
📋 GST Invoice Available

FlySky FS-iA6 6CH AFHDS 2A 2.4G Radio Receiver

₹1,119.00 (Inclusive of all taxes)
Out of Stock

The FlySky FS-iA6 is a 6-channel 2.4GHz AFHDS 2A protocol receiver featuring PWM output, dual antennas for robust signal reception, and compatibility with a wide range of FlySky transmitters for airplanes, helicopters, and multirotors.

Features

  • 6-channel PWM output for servos, ESCs, and flight controllers
  • AFHDS 2A 2.4GHz protocol compatible with FlySky FS-i6, FS-i6X, and FS-i6S transmitters

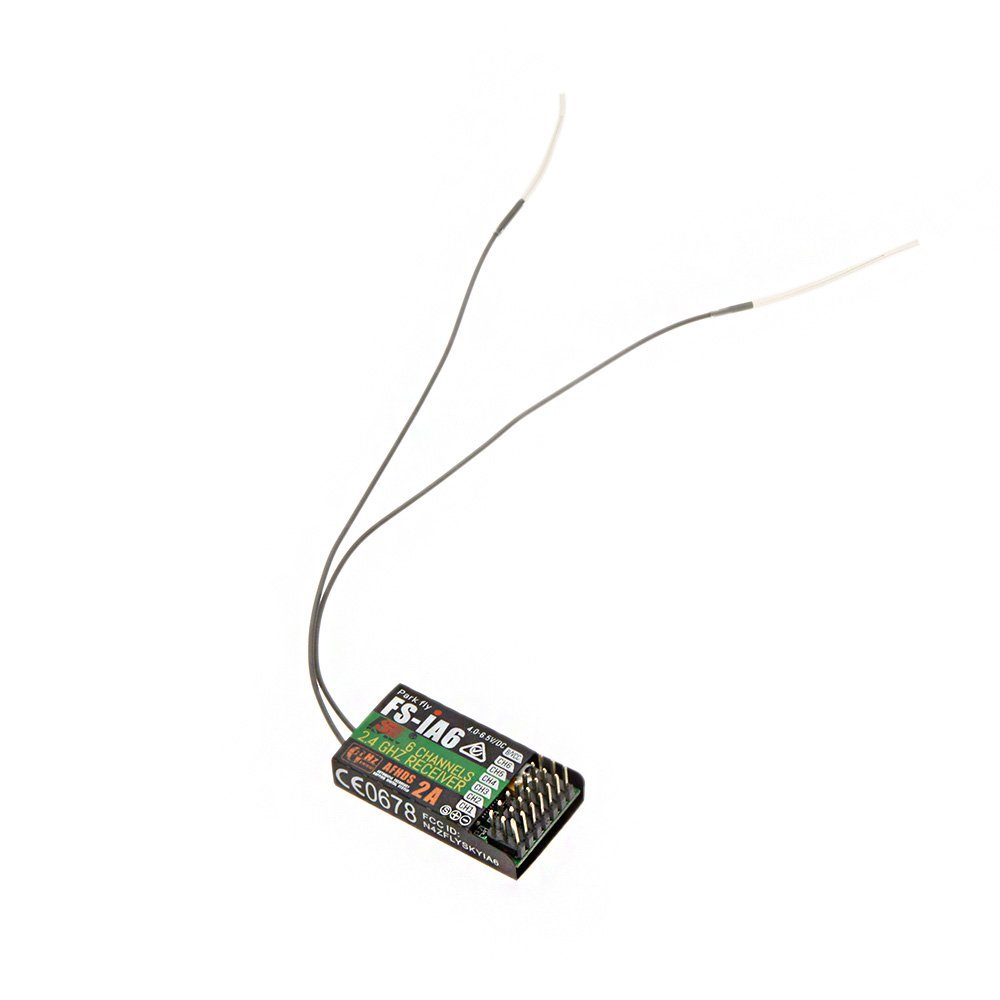

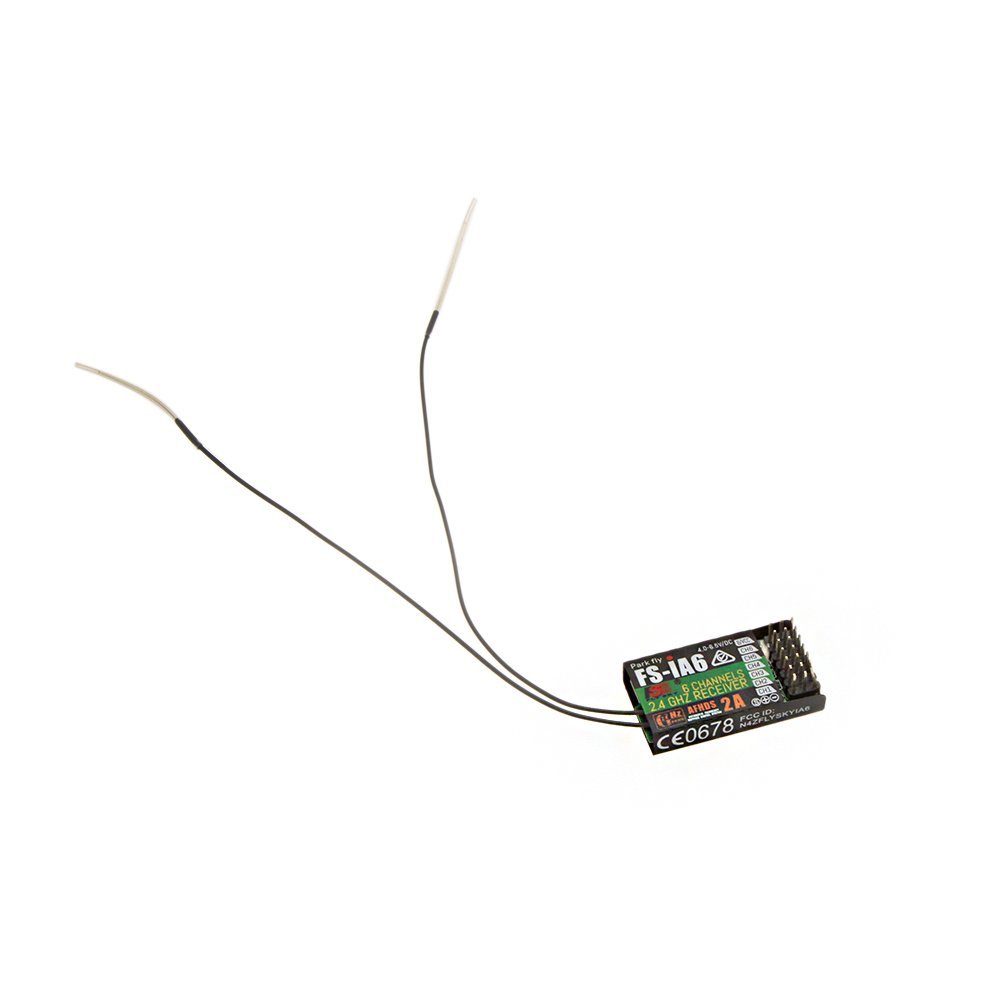

  • Dual 26mm antennas for enhanced signal diversity and interference rejection

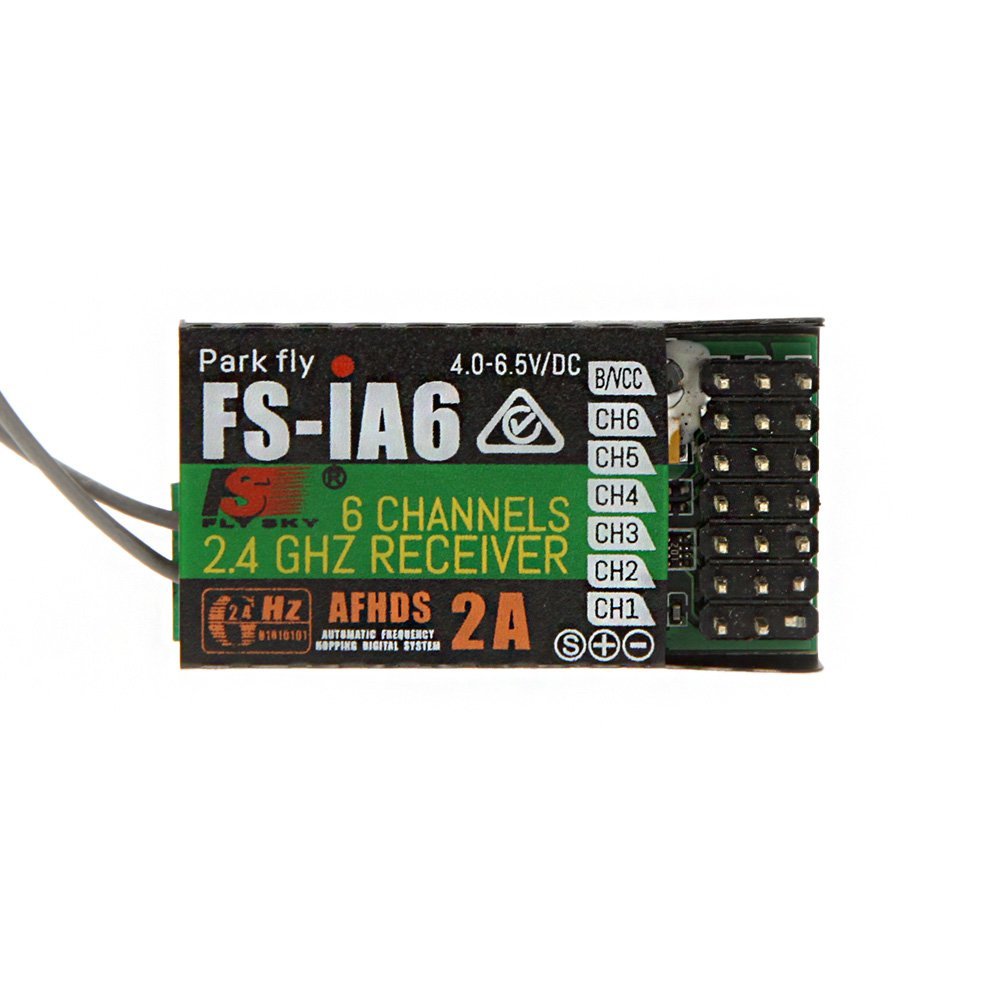

  • Compact 40x21x7mm design with end-pin connectors for tidy installations
  • Low 30mA current consumption and -105dBm receiver sensitivity

Out of stock

Description

The FS-iA6 receiver implements FlySky’s advanced AFHDS 2A (Automatic Frequency Hopping Digital System 2nd Generation) protocol, providing stable 2.4GHz control with automatic frequency hopping across 160 channels to avoid interference. Its compact, low-profile PCB is designed with end-pin connectors to simplify wiring and fit into tight airframes.

With a rated control distance of approximately 300 meters in open air and a sensitivity of -105dBm, this receiver delivers reliable command link performance for park flyers, trainers, and lightweight FPV drones. The dual wire antennas should be positioned at 90-degree angles to each other to maximize signal polarization diversity and maintain a strong link during aggressive maneuvers.

Key Features

  • AFHDS 2A 2.4GHz protocol ensures stable, low-latency communication with compatible FlySky transmitters.
  • Dual-antenna diversity system significantly improves signal reception and reduces packet loss in RF-noisy environments.
  • End-pin connector layout enables clean, direct wiring to servos and ESCs without excess cable clutter.
  • Ultra-lightweight 6.2g design minimizes impact on aircraft balance and overall weight.
  • Wide compatibility with airplane, glider, helicopter, and multirotor model types via standard PWM channels.
  • Low 30mA operational current draw helps preserve overall flight system battery life.

Applications

  • Bind-and-fly park flyer airplanes and gliders using FlySky AFHDS 2A transmitters.
  • Lightweight trainer and beginner multirotor/quadcopter builds requiring simple PWM receiver control.
  • RC helicopter setups where direct servo and tail rotor gyro PWM connections are needed.
  • Secondary or backup receiver in larger scale models where reliability through antenna diversity is critical.
  • DIY robotics and ground vehicle projects utilizing standard servo and ESC PWM control.

Technical Specifications

Channels6 Channels (PWM)
ProtocolAFHDS 2A
Frequency Range2.4–2.48 GHz
ModulationGFSK
Receiver Sensitivity-105 dBm
Transmit Power<=20 dBm
Current Consumption30 mA
Control Distance~300 m (Open Area)
Antenna Length26 mm (x2)
Dimensions (LxWxH)40 x 21 x 7 mm
Weight6.2 g
ColorBlack
Data InterfaceNone (PWM Only)
i-Bus SupportNo

Frequently Asked Questions

Which FlySky transmitters are compatible with the FS-iA6 receiver?

The FS-iA6 receiver is compatible with FlySky transmitters that support the AFHDS 2A protocol, including the popular FS-i6, FS-i6X, and FS-i6S models. Ensure your transmitter's firmware is set to AFHDS 2A mode (not the older AFHDS) for proper binding and operation.

Does the FS-iA6 receiver support PPM or serial output for flight controllers?

No, the FS-iA6 outputs only standard PWM signals on its six individual channels. It does not have a combined PPM output or a serial data interface (like i-Bus or S.Bus). For flight controller integration, you would need to connect each PWM channel individually or use a separate PWM-to-PPM/S.Bus encoder module.

What is the recommended antenna placement for the dual antennas on this receiver?

For optimal signal diversity, mount the two 26mm wire antennas perpendicular to each other (at a 90-degree angle). This setup ensures that if one antenna is in a signal null due to polarization, the other is likely to maintain a strong connection, which is crucial during rolls, loops, and other aggressive flight maneuvers.

Package Includes

  • 1 x FlySky FS-iA6 2.4G Radio Receiver

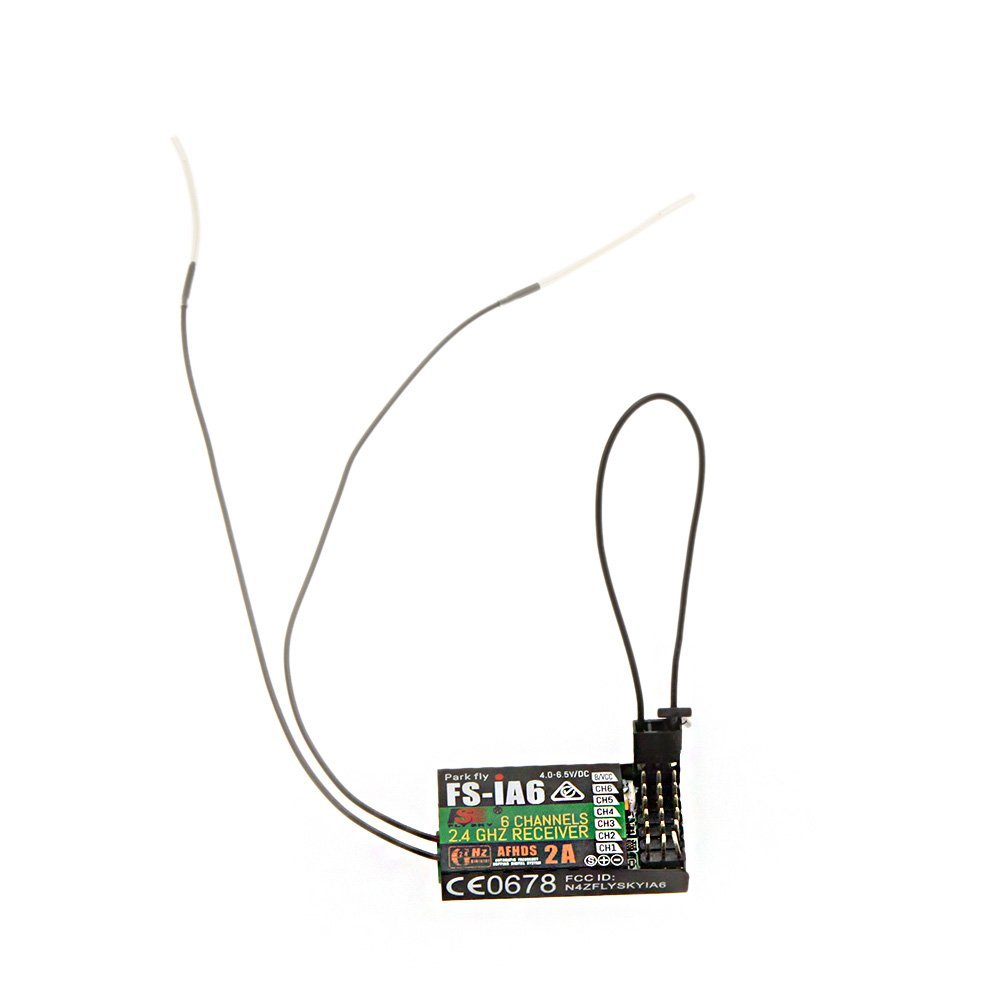

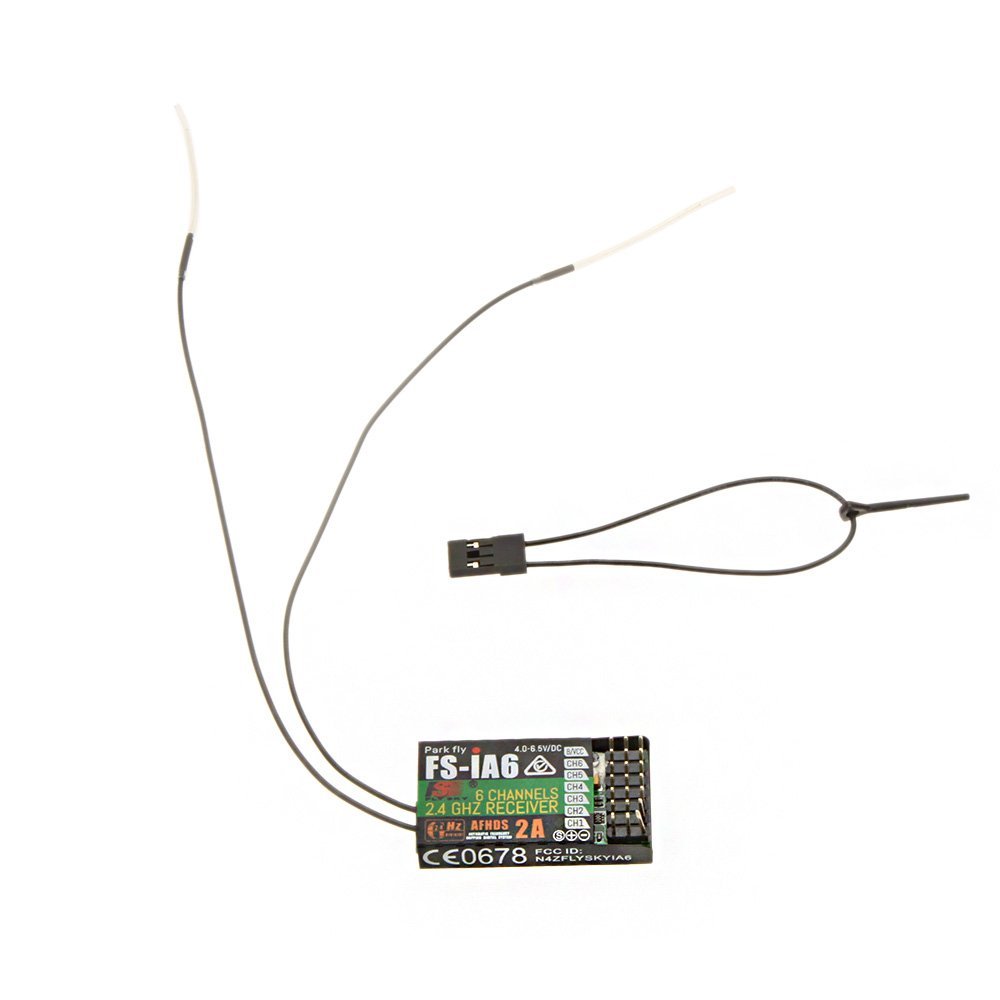

  • 1 x Jumper Connector for Binding

Additional Information

Weight 0.0062 kg
Dimensions 4 × 2.1 × 0.7 cm
