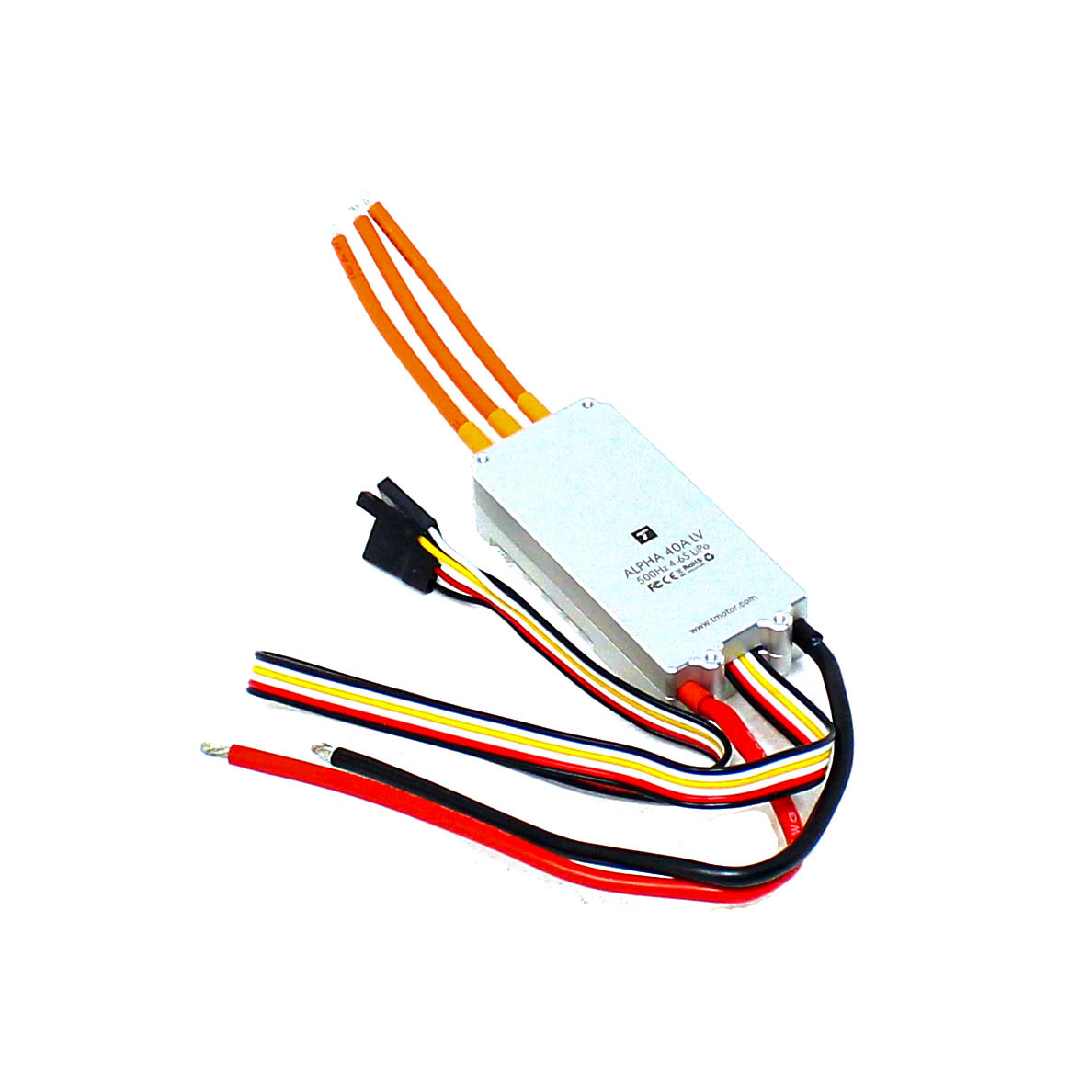

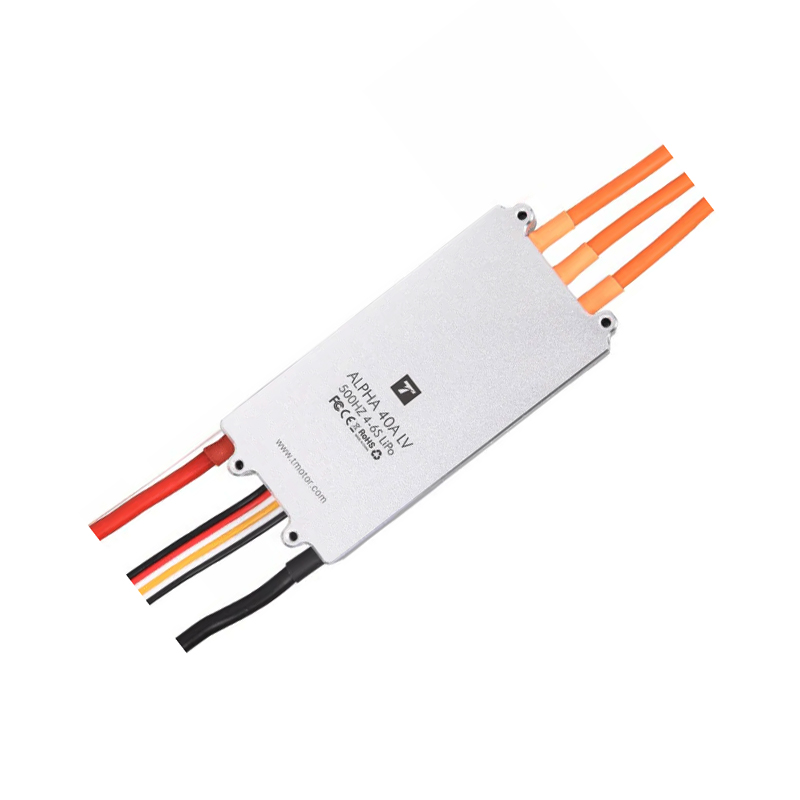

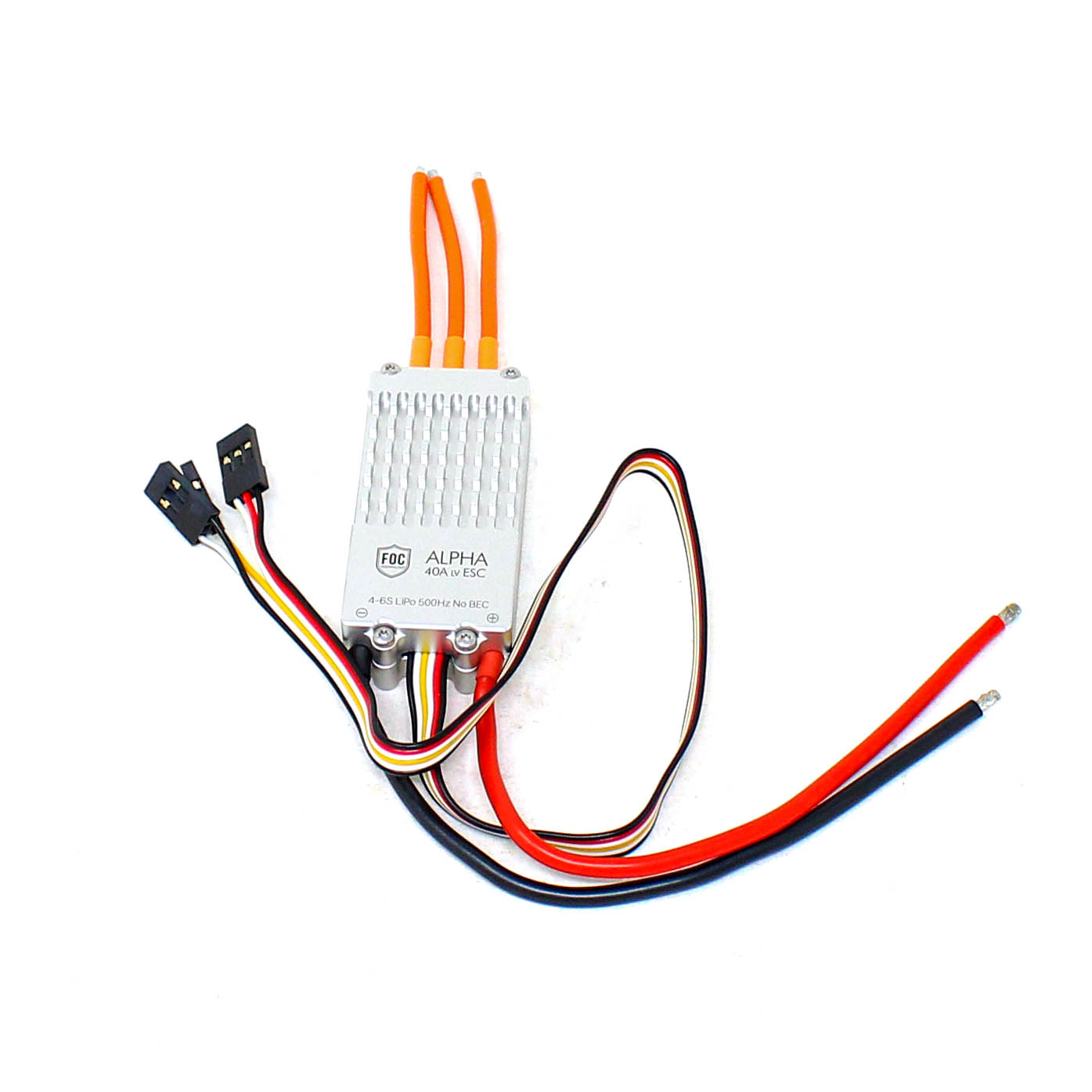

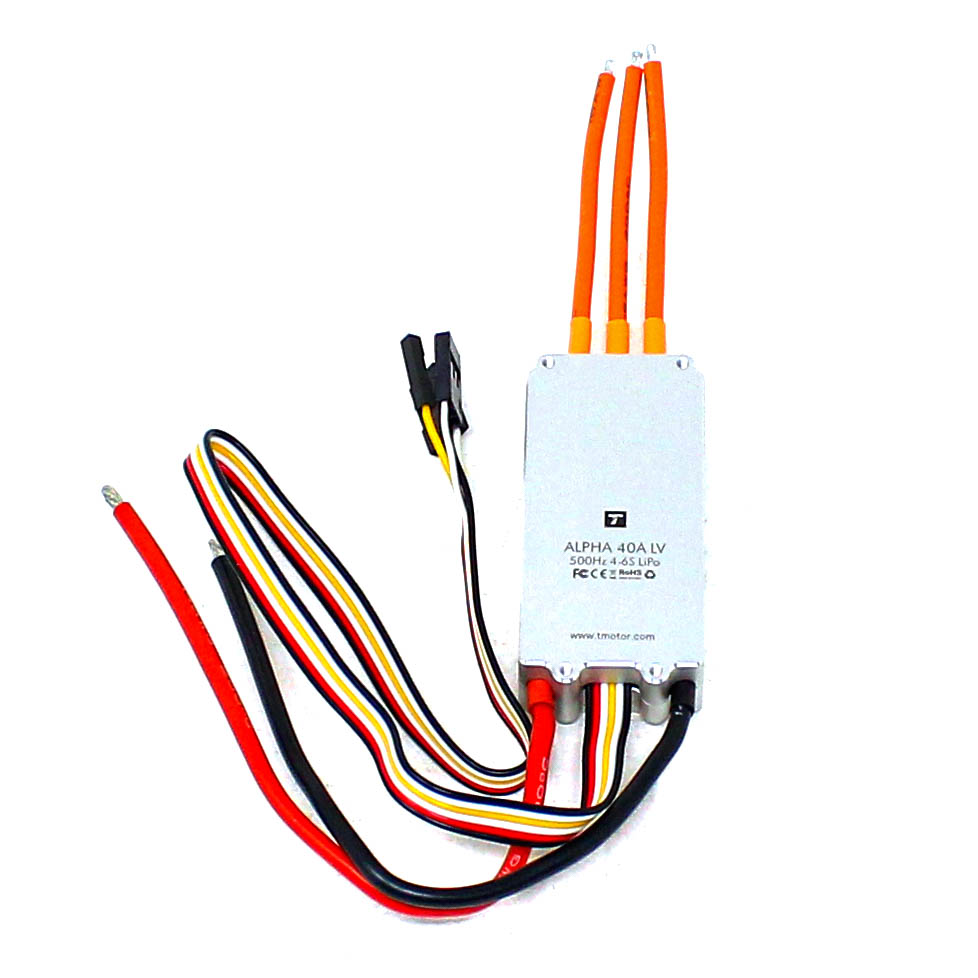

T-Motor Alpha 40A 4-6S Brushless ESC
The T-Motor Alpha 40A 4-6S ESC is engineered for multi-rotor applications, featuring a specialized core program for exceptional throttle response and enhanced stability. This ESC ensures reliable performance across a range of flight conditions, powered by an independent stabilivolt IC.
Features
- Advanced multi-rotor core program for precise throttle response.
- Stabilivolt IC ensures superior anti-jamming performance and stability.
- FOC sine driving minimizes noise and torque ripple for smoother motor operation.
- Robust IP55 grade protection against dust and liquid corrosion.
Out of stock
The T-Motor Alpha 40A 6S ESC delivers exceptional performance for multi-rotor platforms, characterized by its linear throttle response, low noise output, and efficient operation. Unlike traditional square wave driving, the Alpha ESC utilizes FOC sine driving, resulting in faster responses, reduced pulse current, and a steadier startup. This design not only enhances flight stability but also incorporates comprehensive protection features against overcurrent, motor lock-up, short circuits, and low voltage conditions.
Intelligent design allows the Alpha ESC to continuously monitor critical parameters such as voltage, current, and temperature, ensuring optimal operational health. Furthermore, its IP55 rating provides robust protection against water and dust, making it suitable for demanding environments, including agricultural spraying drones. The lightweight construction also contributes to overall efficiency without compromising durability.
Additional Information
| Dimensions | 0.6 × 0.3 cm |
|---|
