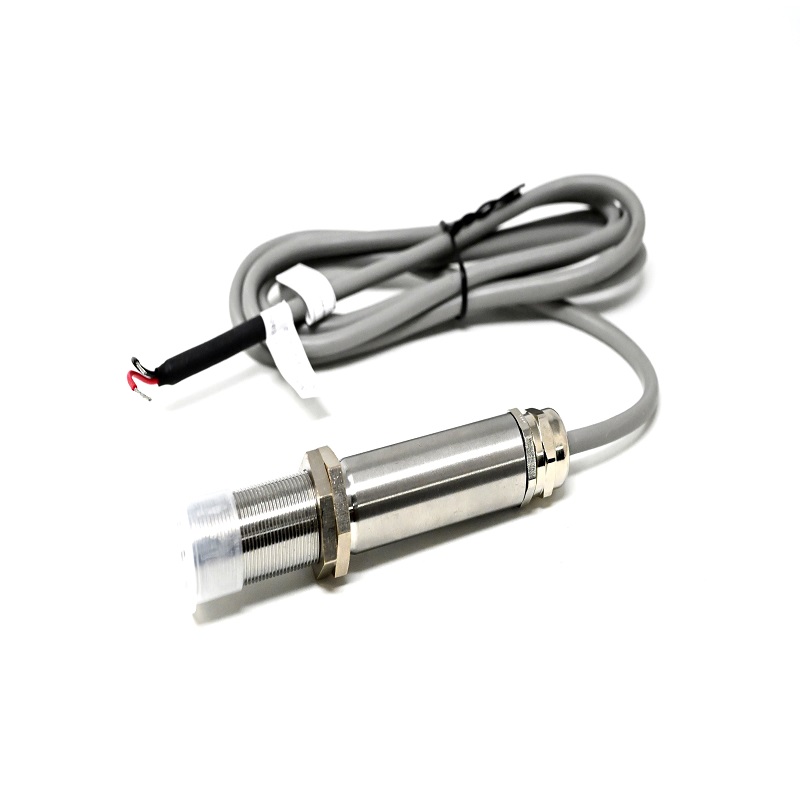

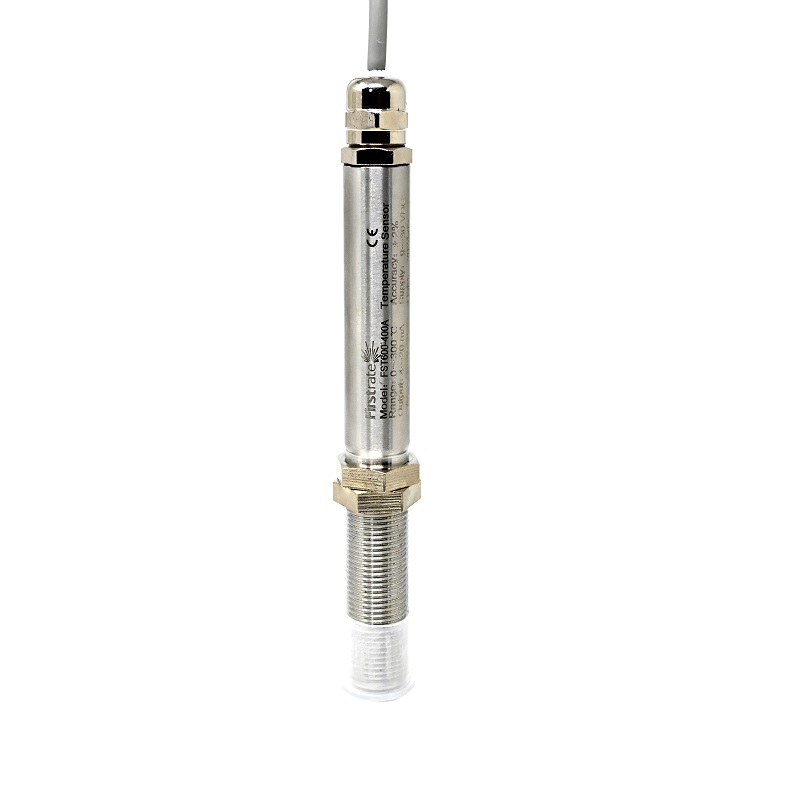

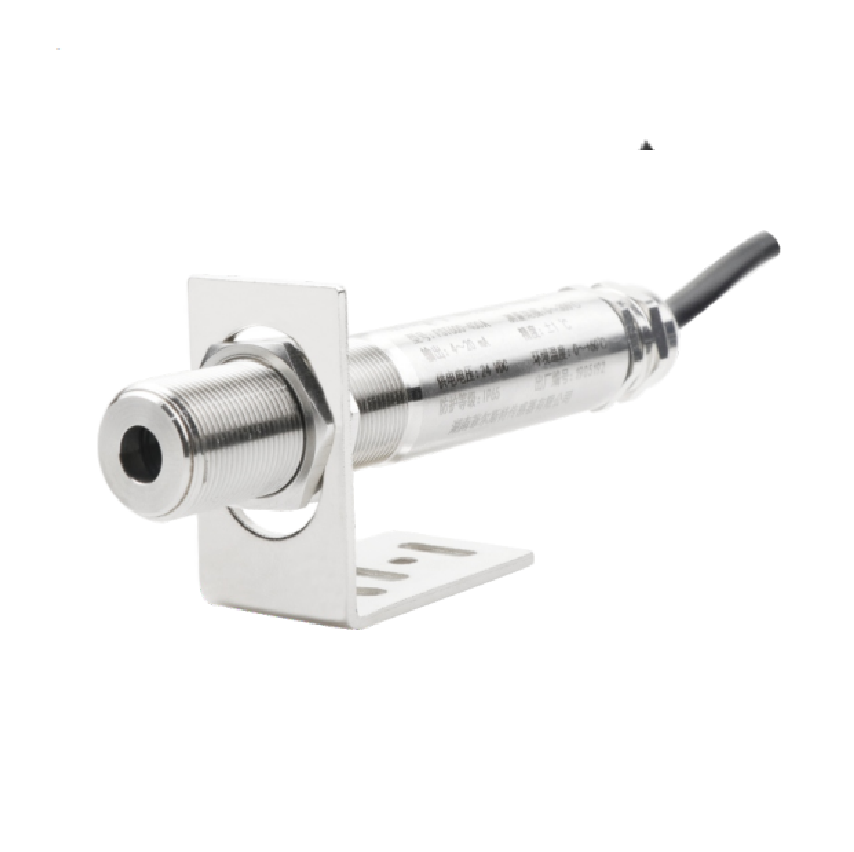

FirstRate FST600-400A Non-Contact Infrared Temperature Sensor, Range 0~300℃, 4-20mA Output, IP65, w/ 1.5m Cable
The FirstRate FST600-400A is a non-contact infrared temperature sensor delivering a 4-20mA analog output signal for industrial process control and monitoring systems. It provides reliable temperature measurement from 0 to 300°C with an optical resolution of 20:1, powered by a 9-30VDC supply and featuring an IP65-rated housing with a 1.5-meter integral cable.
Features
- Non-contact infrared temperature sensing with a 0 to 300°C measurement range
- Standard 4-20mA current loop output for robust industrial signal transmission
- IP65 protection rating for dust and water jet resistance in harsh environments
- Fast 300 ms response time for dynamic process monitoring
- Wide 9-30VDC power supply range compatible with standard industrial power rails
Out of stock
The FST600-400A infrared temperature sensor operates on the principle of detecting infrared radiation emitted by a target object. Its internal optical system focuses energy onto a photodetector, generating an electrical signal proportional to the target’s temperature, which is then conditioned into a stable 4-20mA output. This non-contact method ensures the measurement does not influence the temperature of the object being sensed, providing accurate and reliable data.
Engineered for industrial durability, the sensor is housed in an IP65-rated enclosure, protecting it from dust ingress and water jets. It is designed for continuous operation in ambient temperatures from 0 to 60°C, making it suitable for integration into factory automation, process control panels, and energy management systems where reliable, isolated temperature monitoring is critical.
Additional Information
| Weight | 0.24 kg |
|---|---|
| Dimensions | 21 × 10 × 5 cm |
