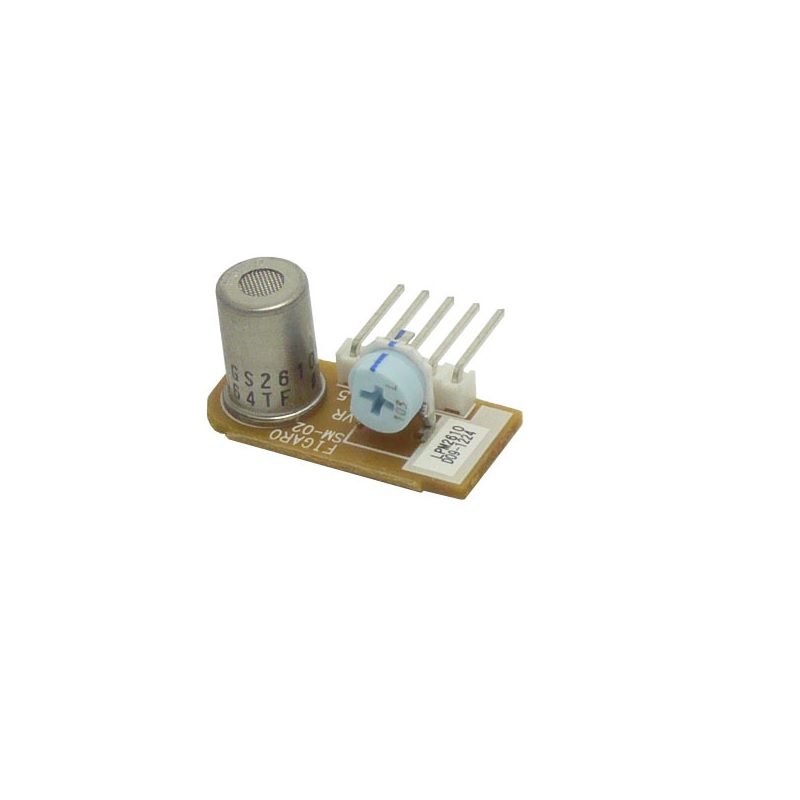

Figaro Engineering LPM2610-D09 Butane and Propane Gas Sensor Module

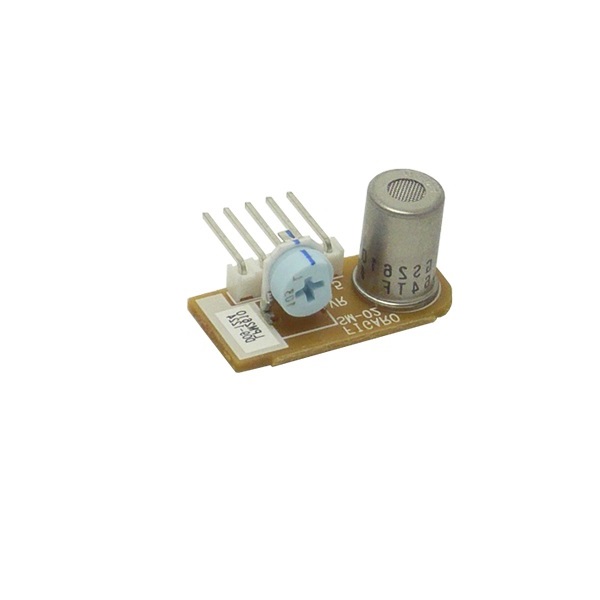

Figaro Engineering LPM2610-D09 Butane and Propane Gas Sensor Module - Image 2
SKU: SENS-0868
📋 GST Invoice Available

Figaro Engineering LPM2610-D09 Butane and Propane Gas Sensor Module

₹1,249.00 (Inclusive of all taxes)
Out of Stock

The Figaro Engineering LPM2610-D09 is a pre-calibrated, low-power gas sensor module designed for residential LP (Liquefied Petroleum) gas alarm systems. It integrates a selective TGS2610-D00 sensor with temperature compensation, operating from a 5V DC supply for easy integration into safety monitoring devices.

Features

  • Factory calibrated for iso-butane (1250±100ppm) at 20°C/65% RH, eliminating end-user calibration.
  • Features a selective TGS2610-D00 sensor with an alcohol filter for minimal interference gas response.
  • Integrated temperature compensation circuit with a built-in thermistor and adjusted load resistor.
  • Low-power operation with a 5.0V ±0.2V DC heater supply and 56±5mA heater current.
  • Compact, RoHS-compliant module designed for reliable residential LP gas alarm manufacturing.

Out of stock

Description

The LPM2610-D09 module simplifies the design and production of residential gas alarms by providing a fully calibrated and compensated sensing solution. At its core is the TGS2610-D00 metal oxide semiconductor (MOS) sensor, which is specifically filtered to provide a highly selective response to butane and propane gases while minimizing sensitivity to common interferents like alcohol.

The module includes a precision temperature compensation circuit that combines a built-in thermistor with an individually calibrated load resistor, ensuring stable sensor performance across varying environmental conditions. This integrated approach delivers a reliable, analog voltage output proportional to gas concentration, ready for direct interface with alarm threshold circuits in 5V logic systems.

Key Features

  • Pre-calibrated output for iso-butane gas, streamlining alarm point setting and manufacturing.
  • Interferent-resistant TGS2610 sensor element with integrated alcohol filter for high selectivity.
  • On-board temperature compensation network ensures consistent performance across operating temperatures.
  • Optimized for low-power, 5V DC operation suitable for continuous safety monitoring applications.
  • Compact and robust module construction compliant with RoHS environmental regulations.
  • Designed specifically for the reliable and cost-effective production of residential LP gas alarms.

Applications

  • Residential and commercial liquefied petroleum (LP) gas leak alarms and detectors.
  • Safety monitoring systems for propane and butane fuel storage in caravans, boats, or cabins.
  • Industrial safety equipment for detecting leaks in portable gas heater and stove applications.
  • Integration into smart home safety hubs and IoT environmental monitoring nodes.

Technical Specifications

Item TypeGas Sensor Module
Model No.LPM2610-D09
Heater Voltage5.0±0.2V DC
Heater Current56±5mA
Circuit Voltage (VH/VC)5.0±0.05V DC
Test Gas & Conditions1250±100ppm iso-butane in air at 20˚±2˚C, 65±5%RH
Sensor ElementTGS2610-D00 with interference gas filter
Key FeatureFactory calibrated with temperature compensation
ComplianceRoHS

Frequently Asked Questions

What gases does the Figaro Engineering LPM2610-D09 module detect?

The module is specifically calibrated and designed to detect Liquefied Petroleum (LP) gases, primarily butane and propane. Its TGS2610-D00 sensor element incorporates a filter to minimize response to common interference gases like alcohol, ensuring high selectivity for LP gas detection.

What is the required operating voltage for this gas sensor module?

The module requires a stable 5.0V DC ±0.2V supply for the sensor heater, drawing approximately 56mA ±5mA. The circuit voltage (VH and VC) is also specified at 5.0V DC ±0.05V. A well-regulated 5V power source is essential for correct operation and accurate gas concentration measurement.

Does this module require calibration before use?

No, the LPM2610-D09 is factory-calibrated by Figaro Engineering under controlled humidity and temperature conditions for a specific concentration of iso-butane gas. This pre-calibration eliminates the need for end-users to perform complex and costly calibration, simplifying integration into final alarm products.

How does the module handle performance changes due to temperature?

The module features an integrated temperature compensation circuit. This circuit combines a built-in thermistor with an individually adjusted load resistor, automatically correcting the sensor's output signal to maintain accurate gas concentration readings across its operational temperature range.

Package Includes

  • 1 x Figaro Engineering LPM2610-D09 Butane and Propane Gas Sensor Module

Additional Information

Weight 0.03 kg
Dimensions 9 × 7 × 2 cm
