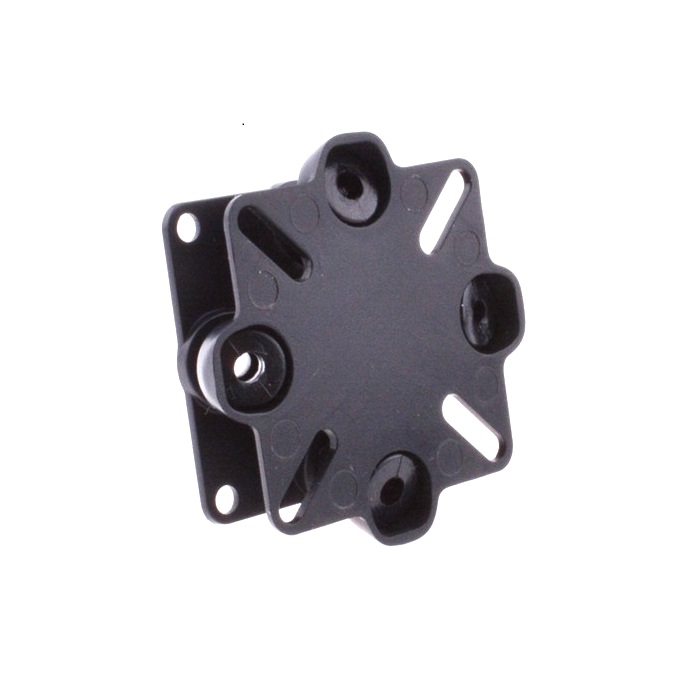

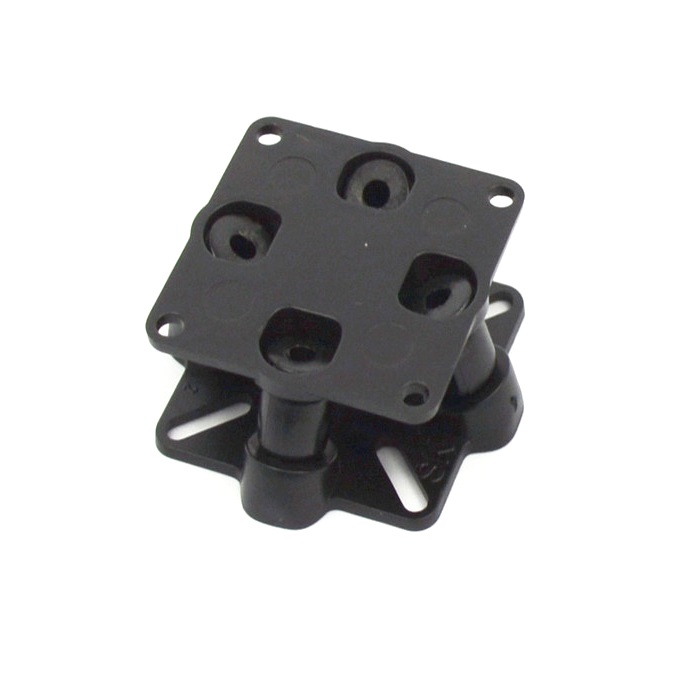

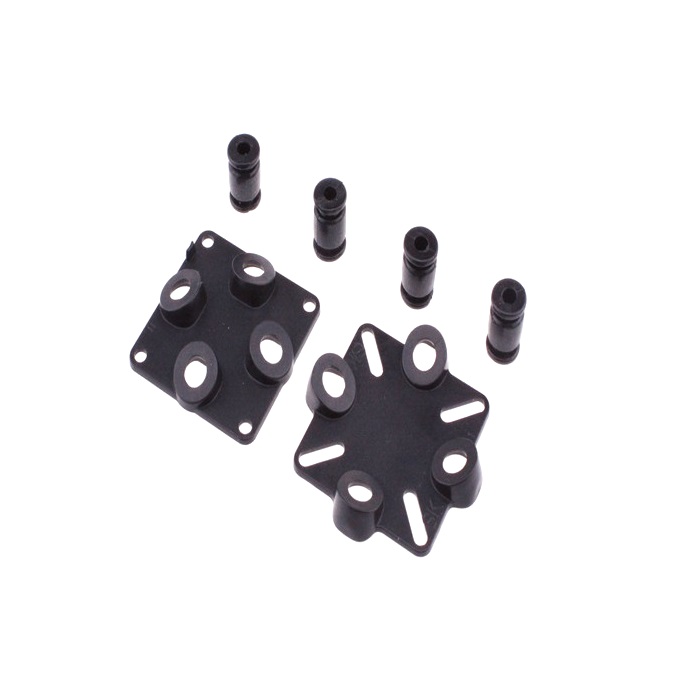

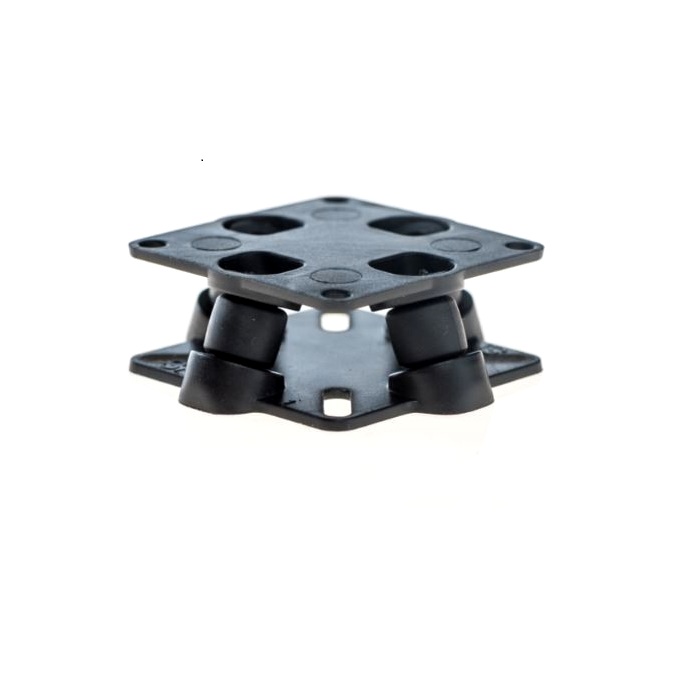

Generic Damping Plate Shock Absorber for CC3D Flip32 Naze32 Mini APM Flight Controller - Black

Yes, it is compatible. The 45x45mm plate provides a larger mounting surface. You would use the included shock absorbers and longer standoffs to mount a 30.5x30.5mm flight controller centrally on the plate, effectively isolating it from the frame. The central cutout also allows for component clearance on the bottom of the FC.

Installation is straightforward. First, secure the four rubber shock absorbers into the corners of the damping plate. Then, use M3 screws passed through the frame, through the shock absorbers, and into standoffs on top of the plate. Your flight controller is then mounted to these standoffs. Alternatively, you can use strong double-sided tape to adhere the flat bottom of the plate directly to the frame for a lower-profile install.

Vibration damping is critical because the gyroscopes and accelerometers inside flight controllers are extremely sensitive to high-frequency mechanical noise. Excessive vibration can cause these sensors to produce erroneous data, leading to unstable flight, 'twitches', poor altitude hold, and failed GPS-assisted modes. This plate and grommet system mechanically filters out these harmful vibrations before they reach the FC.
