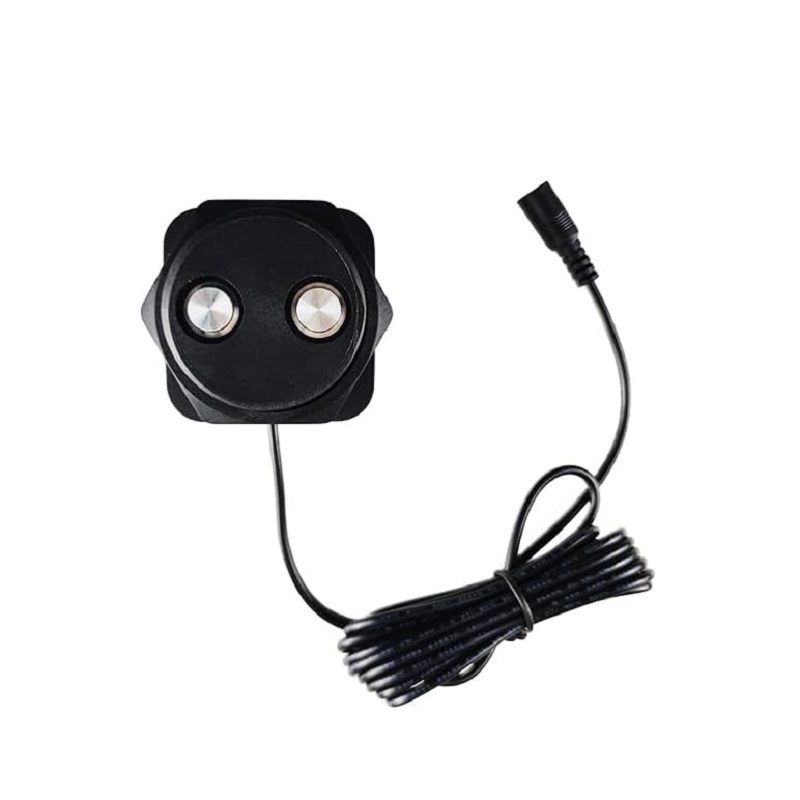

EPTTECH TLC2326 WiFi Ultrasonic Tank Level Monitor Sensor (10cm–2.9m Range) - IP67 Nylon Shell, 5V DC

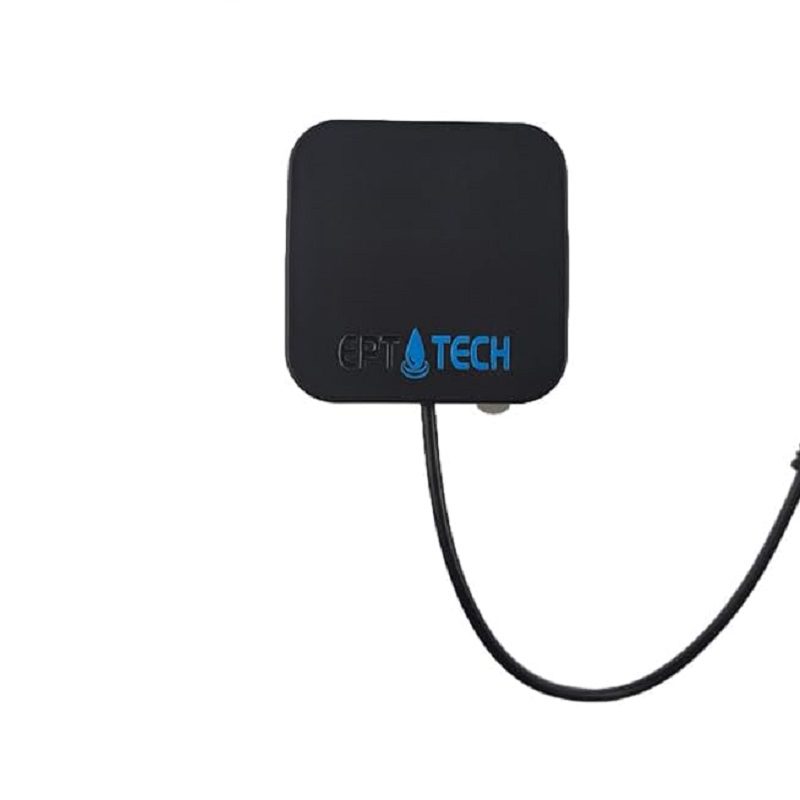

EPTTECH TLC2326 WiFi Ultrasonic Tank Level Monitor Sensor (10cm–2.9m Range) - IP67 Nylon Shell, 5V DC - Image 2
SKU: SENS-1325
📋 GST Invoice Available

EPTTECH TLC2326 WiFi Ultrasonic Tank Level Monitor Sensor (10cm–2.9m Range) - IP67 Nylon Shell, 5V DC

₹4,919.00 (Inclusive of all taxes)
Out of Stock

The EPTTECH TLC2326 is a WiFi-enabled ultrasonic tank level monitor sensor designed for non-contact liquid level measurement in water, oil, fuel, and diesel tanks. Operating on 5V DC with an IP67-rated nylon housing, it provides real-time monitoring and alarm functions via a mobile app, compatible with industrial PLCs and IoT systems.

Features

  • Ultrasonic non-contact sensing for water, oil, fuel, and diesel from 10 cm to 2.9 m.
  • Integrated WiFi module for automatic connection and remote monitoring via mobile application.
  • IP67 waterproof nylon housing for reliable operation in harsh, outdoor environments.
  • Configurable high/low level alarms with real-time alerting and multi-tank monitoring capability.
  • Compact 58mm installation diameter and lightweight design for easy tank mounting.

Out of stock

Description

The EPTTECH TLC2326 utilizes ultrasonic pulse-echo technology to measure liquid levels without direct contact, preventing sensor contamination and corrosion. The integrated signal processor calculates the time-of-flight of reflected sound waves to deliver precise level data with fast response times for real-time tank management.

Housed in a sealed, IP67-rated nylon shell, the sensor is protected against dust ingress and temporary immersion, making it suitable for outdoor and industrial installations. The built-in WiFi module enables automatic network discovery and connection, streaming level data and alarm states to a dedicated mobile app or cloud platform for remote oversight.

Key Features

  • High-precision ultrasonic transducer with 10 cm to 2.9 m measurement range.
  • Fully sealed, IP67 waterproof construction with durable nylon housing.
  • Integrated 2.4GHz WiFi module for automatic network provisioning and IoT connectivity.
  • Configurable high and low-level threshold alarms with push notification alerts.
  • Supports simultaneous monitoring of multiple tank sensors on a single network.
  • Low-power 5V DC operation optimized for continuous monitoring applications.
  • Compact 65 x 65 mm footprint with 58mm mounting diameter for versatile installation.
  • Includes 3-meter cable for flexible sensor placement relative to control unit.

Applications

  • Remote monitoring of water storage tanks, cisterns, and reservoirs in agricultural and municipal systems.
  • Fuel and diesel level tracking in generator tanks, vehicle fleets, and industrial storage facilities.
  • Chemical and oil tank level management in manufacturing plants and processing facilities.
  • IoT-based smart farming for irrigation water tank level control and alerting.
  • Wastewater and effluent level monitoring in environmental treatment and containment systems.

Technical Specifications

Item TypeLiquid Level Sensor
Model NumberTLC2326
Detecting Range10 cm to 2.9 m
Power SupplyDC 5V
Cable Length3 m
Operating Temperature-20°C to 70°C
Housing MaterialNylon
Ingress ProtectionIP67
CommunicationWiFi (2.4GHz)
Dimensions (L x W)65 mm x 65 mm
Weight150 g

Frequently Asked Questions

What is the power supply requirement for the TLC2326 sensor?

The TLC2326 operates on a standard 5V DC power supply. It is designed for low-power, continuous monitoring and should be connected to a stable 5V source, typically provided via the included adapter or a regulated DC power supply within industrial control panels.

How do I connect the sensor to my WiFi network?

The sensor features an automatic WiFi connection function. Upon power-up, it broadcasts a configuration network. You connect to this network via a mobile device, use the dedicated app to select your home/industrial WiFi credentials, and the sensor will save them for automatic reconnection, enabling remote data access.

Can this sensor monitor multiple tanks?

Yes, the system supports the simultaneous monitoring of multiple TLC2326 sensors. Each sensor is individually addressable via the mobile application, allowing you to view levels and set unique alarm thresholds for several tanks from a single dashboard, ideal for fleet or facility management.

What liquids is the TLC2326 compatible with?

The ultrasonic non-contact method makes it compatible with a wide range of non-foaming liquids, including water, oil, diesel, and most fuels. It is not suitable for highly viscous fluids or those that produce excessive surface foam, as these can interfere with the ultrasonic signal reflection.

What is the installation process for this tank level monitor?

Installation requires a 58mm diameter opening at the top of the tank. The sensor is mounted with its nylon housing facing outward, ensuring the ultrasonic transducer has a clear, unobstructed view of the liquid surface. The 3-meter cable allows the control unit to be placed remotely from harsh tank environments.

Package Includes

  • 1 x EPTTECH TLC2326 WiFi Ultrasonic Tank Level Monitor Sensor
  • 1 x 5V DC Power Adapter

Additional Information

Weight 0.15 kg
Dimensions 6.5 × 6.5 cm
