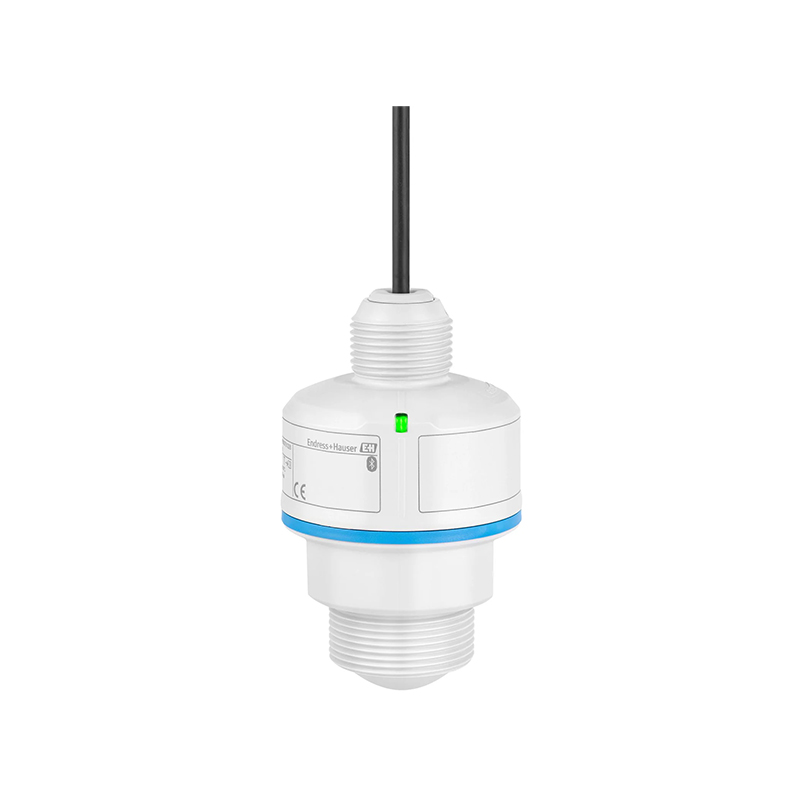

Endress+Hauser FMR20B-AABADTBMWDGWEEAR7 Level Transmitter with Flooding Protection Tube, G1-1/2, 3 bar, ±2mm - HART, 4-20mA
The Endress+Hauser Micropilot FMR20B is a high-precision, non-contact radar level transmitter designed for industrial automation. It provides continuous level measurement of liquids and bulk solids up to 30 meters with ±2mm accuracy, featuring a 4-20mA analog output with HART communication protocol for seamless integration into PLC and SCADA systems.
Features
- High-precision 80 GHz radar technology for non-contact level measurement up to 30 m.
- ±2 mm (±0.08″) measurement accuracy ensures reliable process control.
- 4–20 mA two-wire analog output with integrated HART communication protocol.
- Robust construction with PBT/PC housing, rated for –40°C to +80°C operation.
- Features Bluetooth connectivity for encrypted, remote configuration and diagnostics.
Out of stock
The FMR20B level transmitter utilizes 80 GHz frequency-modulated continuous wave (FMCW) radar technology to deliver precise, continuous level measurement without physical contact with the medium. This principle ensures reliable performance even in applications with foam, vapor, or dust. The integrated signal processing provides stable readings with high immunity to process noise and interference.
Engineered for harsh industrial environments, the transmitter operates within a wide temperature range from –40°C to +80°C and withstands process pressures up to 3 bar. Its PBT/PC housing offers excellent chemical resistance and durability. The device supports modern industrial communication via its 4-20mA/HART output, while optional Bluetooth enables safe, wireless access for configuration and diagnostics in hard-to-reach or hazardous areas.
Additional Information
| Weight | 0.7 kg |
|---|---|
| Dimensions | 17 × 13 × 13 cm |
