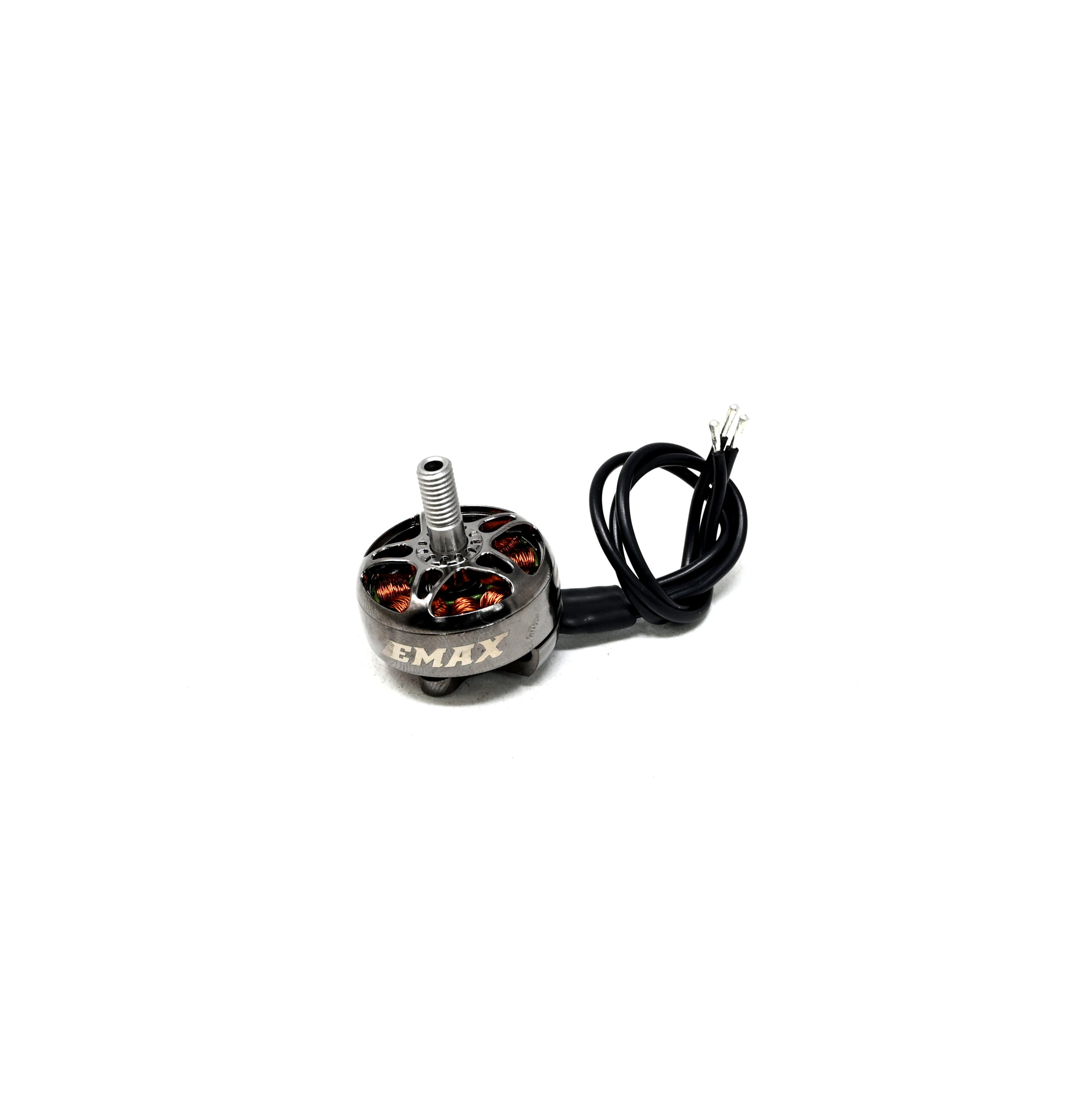

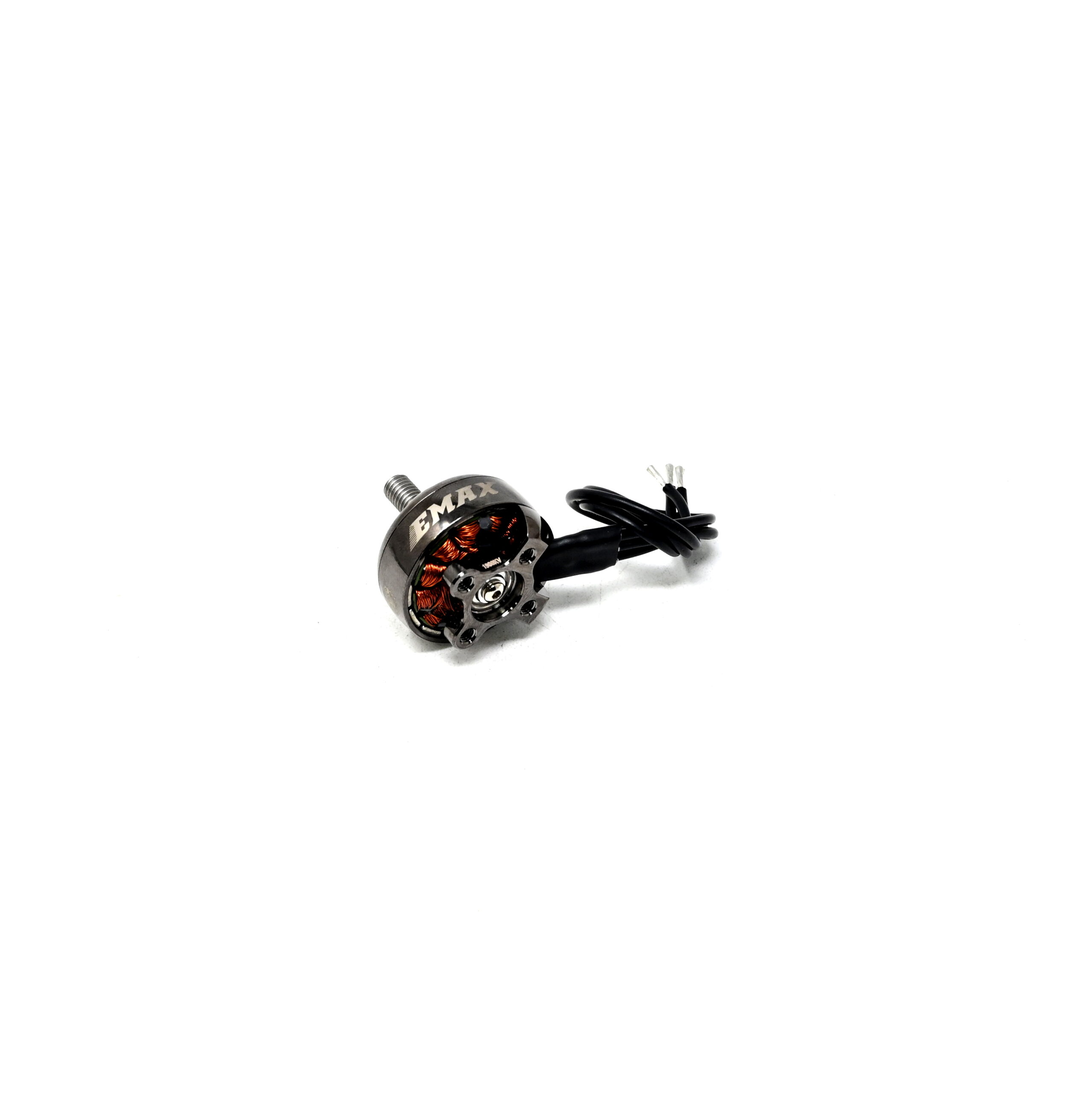

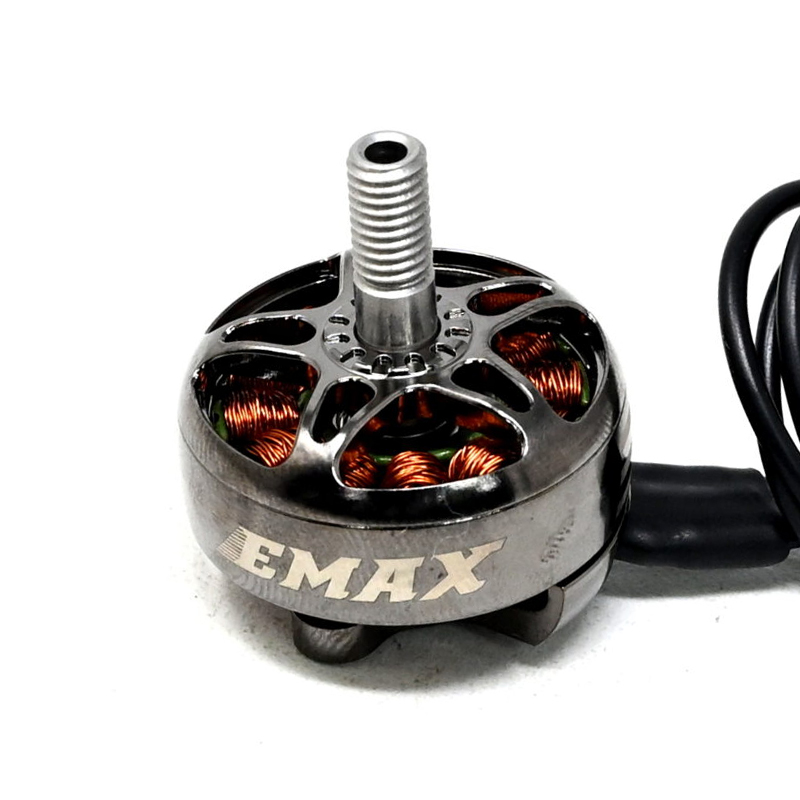

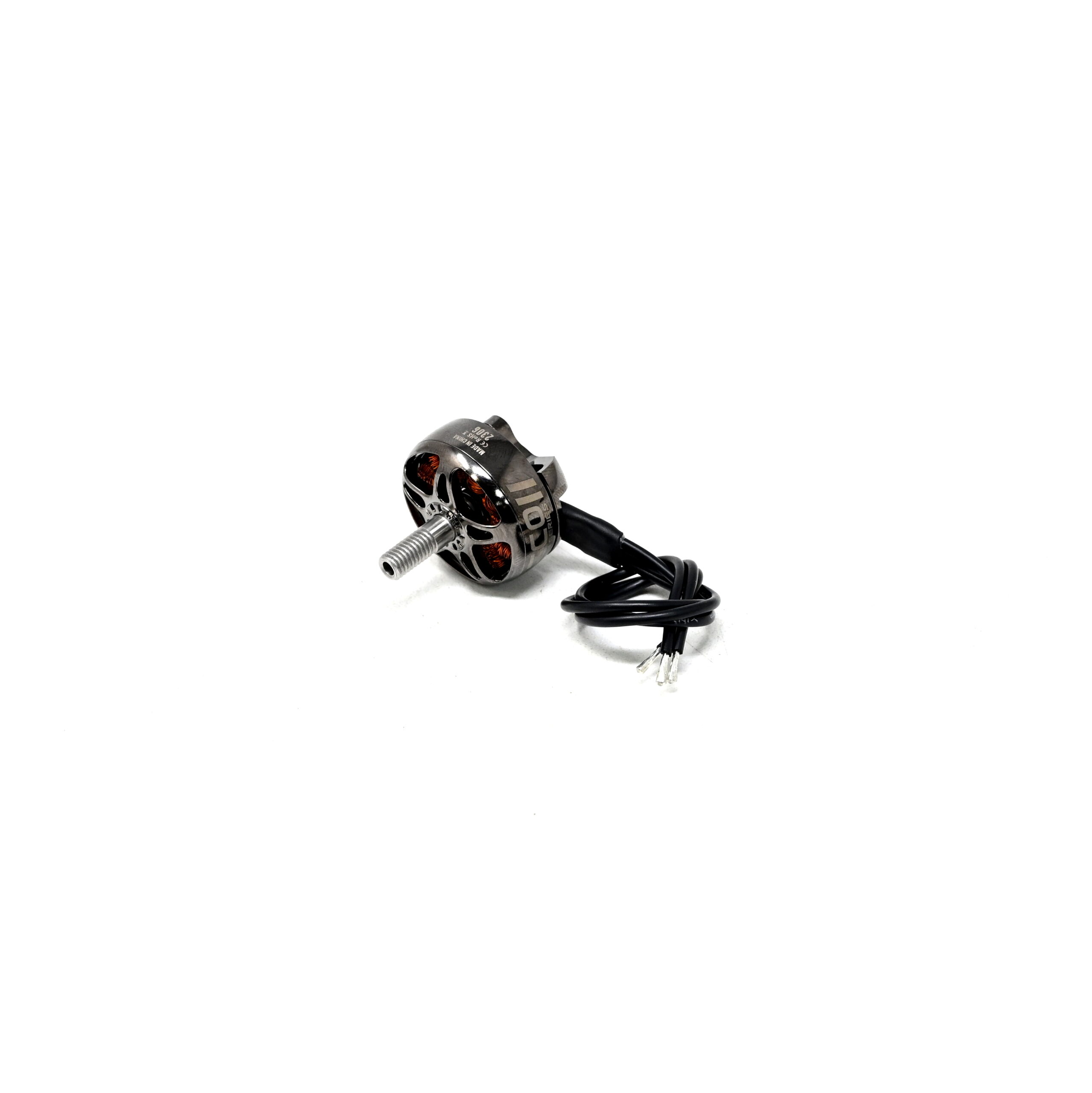

EMAX ECOII-2306-1900KV Brushless Motor
The EMAX ECOII-2306-1900KV brushless motor is engineered for high-performance 5-inch FPV freestyle and racing drones, offering a robust 3-6S LiPo voltage range and a durable N52SH magnet construction for responsive throttle control and high thrust output.
Features
- High-performance 2306 stator size with 1900KV rating for aggressive 5-inch FPV builds.
- Wide 3-6S LiPo battery compatibility for flexible power system configuration.
- Enhanced N52SH arc magnets deliver higher torque and RPMs than previous N48 designs.
- Reinforced rounded housing with anodized finish for improved durability and crash resistance.
- Includes comprehensive mounting hardware kit with M5 nylock nut and multiple M3 screw lengths.
Out of stock
The EMAX ECOII-2306-1900KV brushless motor represents a significant evolution in affordable yet high-performance motor technology. Its completely redesigned architecture features a thicker, more rounded housing that provides superior structural integrity against impacts common in FPV freestyle and racing. The internal 12N14P framework is wound with multi-strand 20 AWG silicone wire, optimizing electrical efficiency and heat dissipation.
At its core, the motor utilizes upgraded N52SH arc magnets, which generate a stronger magnetic field than the previous N48 magnets used in the ECO series. This results in a more powerful throttle response, higher achievable RPMs, and a maximum thrust of up to 1990 grams on a 6S LiPo. The combination of a precision bearing, a hardened steel shaft, and a standard 16x16mm mounting pattern ensures reliable integration into a wide range of 5-inch quadcopter frames.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 7 × 4 × 3 cm |
