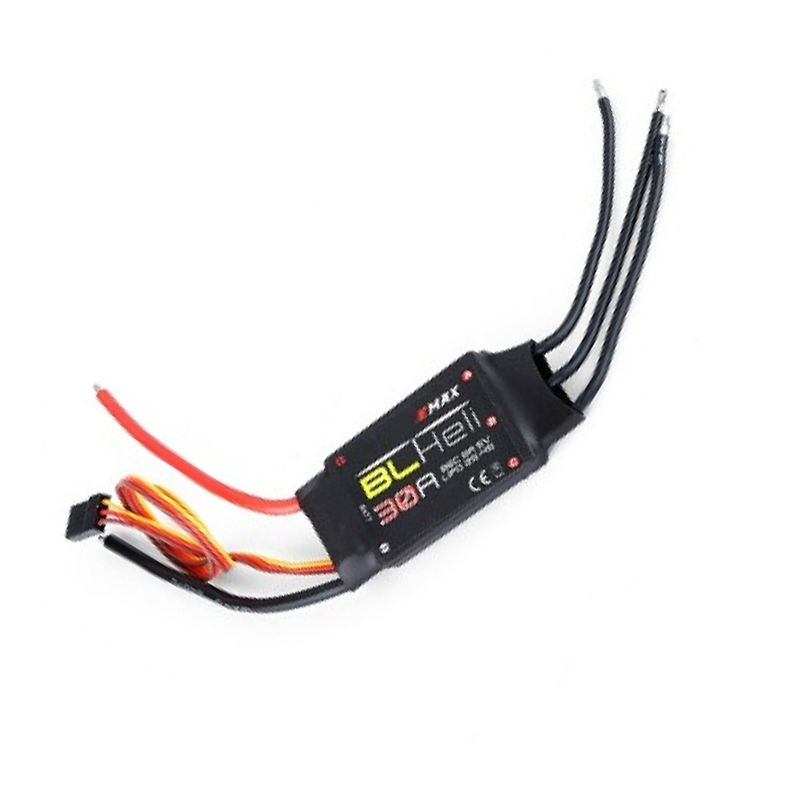

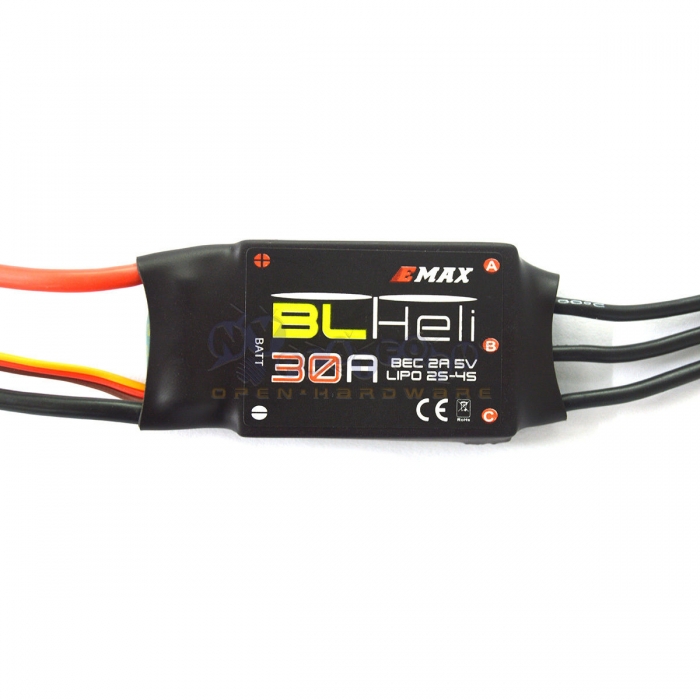

EMAX BLHeli Series 30A ESC with Oneshot
The EMAX BLHeli Series 30A ESC with Oneshot protocol is engineered for reliable performance in FPV racing and freestyle drones. Supporting 2-4S LiPo batteries, this speed controller delivers stable power and integrates a 5V/2A BEC for peripheral electronics.
Features
- Robust 30A continuous current with 40A burst capability for demanding flight.
- Compatible with 2S to 4S LiPo battery configurations for versatile power setups.
- Features BLHeli firmware optimized with Oneshot protocol for rapid, precise motor control.
- Integrated 5V/2A linear BEC provides stable power for flight controllers and receivers.
- Designed for multirotors and RC planes, ensuring broad application across various platforms.
Out of stock
The EMAX BLHeli Series 30A ESC is a high-performance electronic speed controller meticulously designed for FPV racing and freestyle drone applications. Utilizing advanced BLHeli firmware, it delivers optimized drive performance, ensuring precise and responsive control of brushless motors essential for agile flight maneuvers. This ESC is engineered to provide exceptional power stability, adapting seamlessly to 2S to 4S LiPo battery inputs and featuring low output resistance to enhance overall system reliability.
With a continuous current handling capacity of 30A and a burst rating of 40A for up to 10 seconds, this EMAX ESC offers ample power overhead for dynamic flight. It incorporates critical protection features, including low-voltage, over-heat, and throttle signal loss protection, safeguarding both the ESC and connected components. The separate power supply for the MCU and BEC further enhances the ESC’s ability to resist magnetic interference, contributing to cleaner signal transmission and more consistent performance.
Additional Information
| Dimensions | 5.2 × 2.6 × 0.7 cm |
|---|
