ELA Innovation Blue PUCK RHT Temperature & Humidity Sensor (IDF25242C) - Bluetooth LE, IP65, NFC

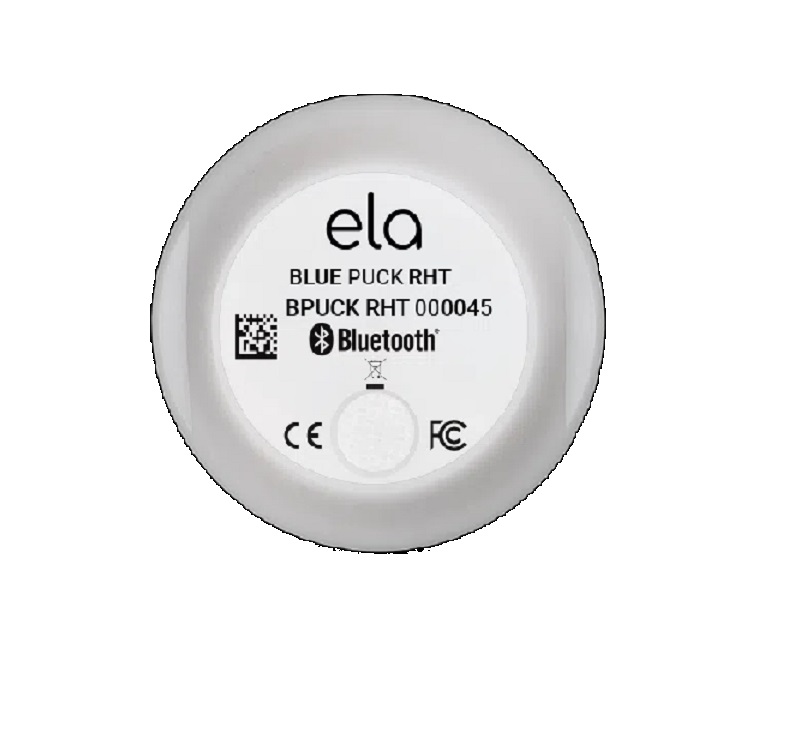

ELA Innovation Blue PUCK RHT Temperature & Humidity Sensor (IDF25242C) - Bluetooth LE, IP65, NFC - Image 2
SKU: SENS-3417
📋 GST Invoice Available

ELA Innovation Blue PUCK RHT Temperature & Humidity Sensor (IDF25242C) - Bluetooth LE, IP65, NFC

₹5,309.00 (Inclusive of all taxes)
Out of Stock

The ELA Innovation Blue PUCK RHT is a compact, battery-powered Bluetooth Low Energy sensor designed for autonomous temperature and humidity monitoring in industrial and smart building applications, featuring NFC configuration and an IP65-rated housing.

Features

  • High-accuracy sensing with ±0.4°C temperature and ±2.5% RH humidity precision.
  • Ultra-long 18-year battery life enabled by configurable, dynamic Bluetooth advertising.
  • Extended 500-meter Bluetooth LE range in open-field conditions for flexible deployment.
  • IP65-rated waterproof and dustproof housing for reliable operation in non-condensing industrial environments.
  • Smart NFC and Over-the-Air Programming (OTAP) for easy configuration and firmware updates.

Out of stock

Description

The ELA Innovation Blue PUCK RHT is a fully autonomous, industrial-grade sensor combining temperature and humidity measurement with long-range Bluetooth Low Energy (BLE) communication. Its core sensing element delivers calibrated, high-precision readings suitable for environmental monitoring and data logging.

Engineered for longevity, the sensor utilizes an internal lithium battery and sophisticated power management, allowing configurable advertising intervals from 0.1 seconds to 24 hours to achieve an operational lifespan of up to 18 years. The IP65-rated, rugged enclosure ensures protection against dust and water jets, making it suitable for demanding indoor and sheltered outdoor applications in smart buildings, warehouses, and HVAC systems.

Key Features

  • Integrated high-precision temperature and relative humidity sensor.
  • Ultra-low-power BLE 5.0 radio with a 500-meter line-of-sight range.
  • Advanced power management for industry-leading 18-year battery life.
  • Robust IP65-rated enclosure for durability in industrial environments.
  • Contactless NFC interface for quick configuration and device pairing.
  • Over-the-Air Programming (OTAP) for remote firmware updates.
  • Fully configurable dynamic advertising periods to optimize battery and network performance.
  • Wide operating temperature range from -40°C to +85°C.

Applications

  • Wireless environmental monitoring in smart buildings and commercial HVAC systems.
  • Condition monitoring and data logging in warehouses, cold storage, and logistics.
  • Industrial IoT deployments for predictive maintenance and facility management.
  • Asset tracking and monitoring of sensitive goods during transport and storage.
  • Integration into BLE mesh networks for large-scale sensor deployments.

Technical Specifications

Manufacturer Part NumberIDF25242C
Product ModelBlue PUCK RHT
Sensing ParametersTemperature, Relative Humidity
Temperature Accuracy±0.4°C
Humidity Accuracy±2.5% RH
Operating Temperature Range-40°C to +85°C
Communication ProtocolBluetooth Low Energy (BLE)
BLE Frequency2.4 GHz
Maximum Communication Range500 m (open field)
Power SourceInternal Lithium Battery
Estimated Battery LifeUp to 18 years
Ingress Protection (IP) RatingIP65
Configuration InterfaceNFC, Over-the-Air Programming (OTAP)
Advertising Period Configurability0.1 sec to 24 hrs
Shipping Weight0.035 kg
Shipping Dimensions (L x W x H)13 × 10 × 3 cm

Frequently Asked Questions

What is the power source for the ELA Innovation Blue PUCK RHT sensor, and how is the 18-year battery life achieved?

The sensor is powered by an internal, non-replaceable lithium battery. The exceptional 18-year lifespan is achieved through ultra-low-power circuit design and fully configurable dynamic advertising intervals, allowing the BLE radio to sleep for extended periods between data transmissions, drastically reducing average current consumption.

How do I configure the sensor and change its advertising interval?

Configuration is performed via the NFC interface using a compatible smartphone or programmer, or wirelessly via Over-the-Air Programming (OTAP). Through these interfaces, you can set the dynamic advertising period anywhere from 0.1 seconds for real-time monitoring to 24 hours for ultra-long battery life, depending on your application's data rate requirements.

Can the ELA Innovation Blue PUCK RHT sensor be used outdoors?

The sensor's IP65 rating makes it dust-tight and protected against low-pressure water jets from any direction, suitable for outdoor use in non-condensing environments. However, it is not designed for prolonged submersion or exposure to condensing humidity. For harsh outdoor conditions, additional protective enclosures may be recommended.

Package Includes

  • 1 x ELA Innovation Blue PUCK RHT Sensor (IDF2524201A)

Additional Information

Weight 0.035 kg
Dimensions 13 × 10 × 3 cm
