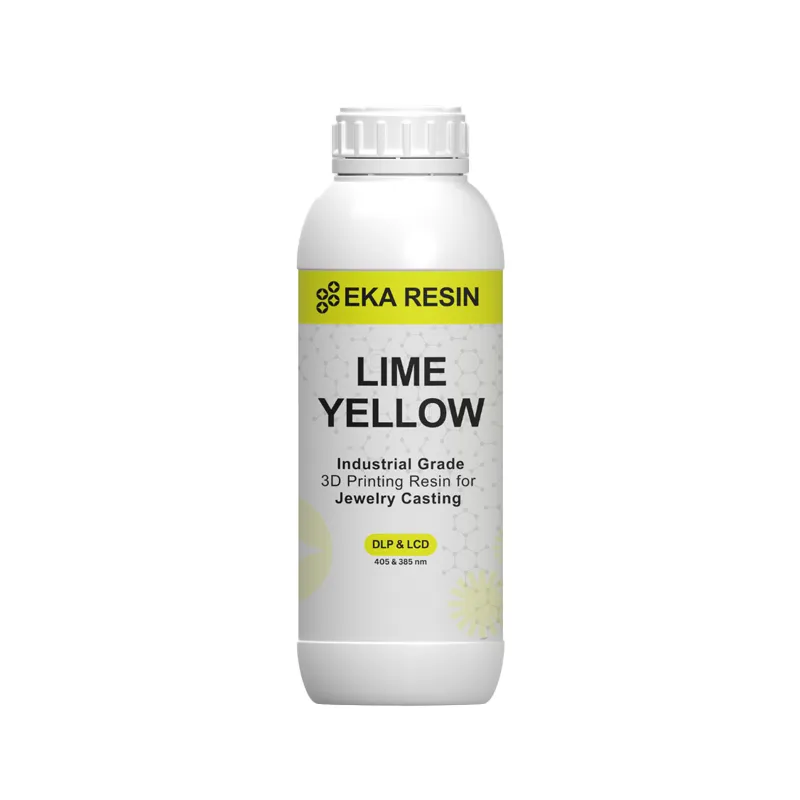

EKA Direct Castable Resin - Lime Yellow (250g)
EKA Direct Castable Resin - Lime Yellow (250g) - Image 2
SKU: 3DMR-0373
📋 GST Invoice Available

EKA Direct Castable Resin - Lime Yellow (250g)

₹5,900.00 (Inclusive of all taxes)
Out of Stock

This EKA Direct Castable Resin in Lime Yellow is a high-performance photopolymer specifically engineered for intricate jewelry designs. Compatible with both DLP and LCD 3D printers supporting 385nm and 405nm wavelengths, it ensures precise detail and a clean burnout for lost-wax casting.

Features

  • Engineered for direct lost-wax casting of fine jewelry with minimal residue.
  • Delivers exceptional detail resolution for intricate designs like micro-pavé and filigree.
  • Maintains high dimensional accuracy with a low shrinkage rate of approximately 3%.
  • Compatible with a wide range of DLP and LCD 3D printers supporting 385nm and 405nm wavelengths.
  • Produces smooth-surface prints, significantly reducing post-processing and finishing time.

Out of stock

Description

EKA Resin Lime Yellow Direct Castable Resin is a high-performance photopolymer specifically formulated for the direct casting of fine jewelry designs. Engineered for intricate applications such as micro-pavé prongs, delicate filigree work, and detailed engraving, this resin delivers exceptional print accuracy, a clean and consistent burnout process, and a remarkably smooth surface finish.

Designed for broad compatibility, EKA Resin seamlessly integrates with both DLP and LCD 3D printers, supporting both 405nm and 385nm wavelengths. This versatility ensures consistent, high-precision results with minimal volumetric shrinkage. Whether the goal is rapid prototyping or producing ready-to-cast pieces, this resin provides the reliability and fine detail resolution essential for professional jewelry manufacturing and casting workflows.

Key Features

  • Exceptional Detail Resolution: Captures intricate micro-details and fine features with superior visibility, crucial for complex jewelry designs.
  • Optimized Lost Wax Casting: Engineered for a reliable and clean burnout process, leaving minimal ash or residue for defect-free metal casting.
  • Minimal Post-Processing: Produces prints with remarkably smooth surfaces and clean supports, significantly reducing manual finishing time.
  • High Dimensional Stability: Achieves accurate part geometry with a very low volumetric shrinkage rate of approximately 3% during curing.
  • Broad Printer Compatibility: Fully compatible with a wide range of DLP and LCD 3D printers operating at both 385nm and 405nm wavelengths.
  • Versatile Design Application: Suitable for diverse jewelry styles, from delicate filigree to robust ring settings and complex custom geometries.
  • Preheating Recommendation: For optimal viscosity and print consistency on printers without integrated heating, preheat resin to 37°C.

Applications

  • Direct lost-wax casting of fine jewelry components.
  • Manufacturing of intricate designs like micro-pavé settings, filigree, and detailed engravings.
  • Creation of custom rings, pendants, earrings, and other personalized jewelry.
  • Prototyping and production of master patterns for mass jewelry manufacturing.
  • Casting of delicate and complex geometries requiring high detail resolution.

Technical Specifications

Material TypeDirect Castable Photopolymer Resin
Resin ColorLime Yellow
Liquid Volume250g
Printer CompatibilityDLP, LCD
Curing Wavelength385nm, 405nm
Volumetric Shrinkage~3%
Bottle Weight (Gross)317g

Frequently Asked Questions

What are the recommended print settings for EKA Direct Castable Resin?

Optimal print settings vary by printer model, but generally start with a layer height of 0.03-0.05mm. For 405nm LCD printers, typical exposure times are 2.5-4 seconds per layer, while DLP may require less. Ensure thorough calibration and support generation for intricate details, considering a bottom layer exposure of 20-30 seconds for strong bed adhesion.

How should EKA Direct Castable Resin be stored and handled?

Store EKA resin in a cool, dark place away from direct sunlight or UV light, ideally between 20-25°C. Keep the bottle tightly sealed to prevent contamination or moisture absorption. Always wear gloves and safety glasses when handling liquid resin, and ensure proper ventilation in your printing area to minimize fume exposure.

What post-processing steps are crucial for successful casting with this resin?

After printing, thoroughly clean models with 90%+ IPA or a specialized resin cleaner to remove uncured resin. Lightly post-cure the cleaned parts under UV light (405nm) for 5-10 minutes to achieve full hardness and ensure a clean burnout. Over-curing can cause brittleness or issues during casting, so follow manufacturer guidelines carefully.

Can this resin be used with both 385nm and 405nm UV light sources?

Yes, EKA Direct Castable Resin is formulated for broad compatibility and works effectively with both 385nm and 405nm UV light sources found in DLP and LCD 3D printers. This versatility allows jewelers to utilize a wider range of machines without sacrificing print quality or casting performance. Adjust exposure times accordingly for each wavelength.

Package Includes

  • 1x EKA Direct Castable Resin - Lime Yellow (250g) Bottle

Additional Information

Weight 0.317 kg
Dimensions 15 × 7 × 7 cm

Related Products

Out of Stock

eSUN Bio-Based PLA Resin, Transparent 1kg

3,399.00
Learn More
Out of Stock

eSUN High Temp Resin, 0.5kg (Transparent)

2,404.00
Learn More
Out of Stock

eSUN W200 Water-Washable Resin, Dark Grey 1kg

2,459.00
Learn More
Out of Stock

Creality LCD Standard Resin Plus Transparent 500g

859.00
Learn More
Out of Stock

eSUN W300 16K Water-Washable Resin, Beige 1kg

2,269.00
Learn More
Out of Stock

eSUN Water Washable Resin - Beige 0.5kg

1,439.00
Learn More
Out of Stock

eSUN eResin-PLA Pro Sky Blue 1kg Resin

2,289.00
Learn More
Out of Stock

Anycubic Standard Resin, Translucent Blue, 1kg

1,699.00
Learn More
Out of Stock

eSUN CT100 Custom Tray Resin, Grey, 1kg

3,729.00
Learn More
Out of Stock

EKA Resin RED-X Direct Castable Jewelry Resin 500g

11,800.00
Learn More
Out of Stock

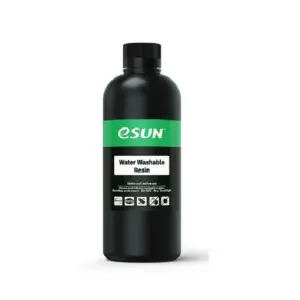

eSUN Water Washable Resin - Light Gray 0.5kg
