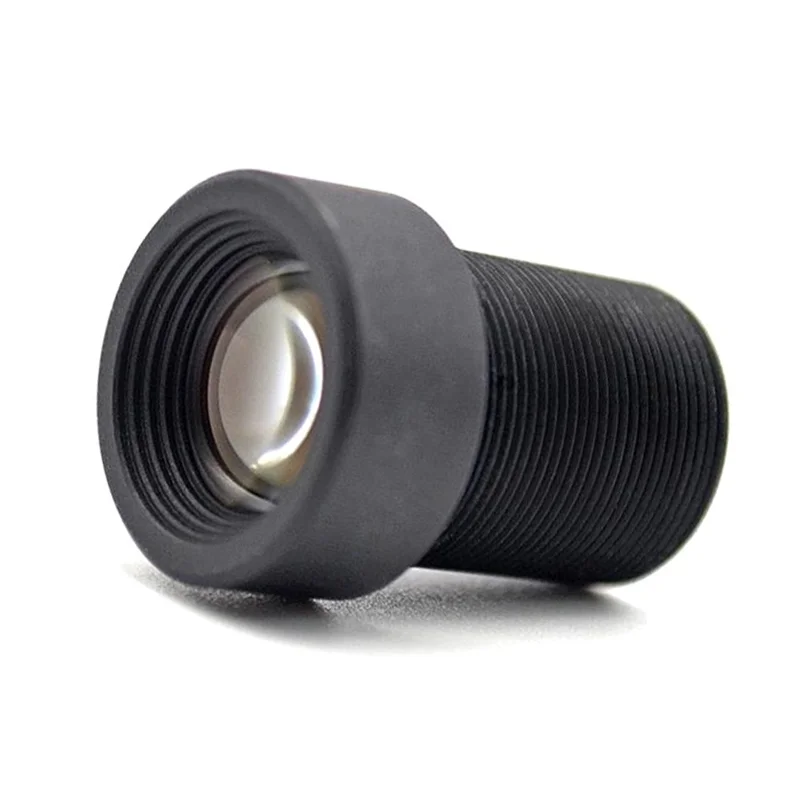

EDATEC 8MP 12mm M12 Raspberry Pi Lens

Yes, this EDATEC 8MP 12mm lens is designed with a standard M12 mount, which is directly compatible with the Raspberry Pi Camera Module v2 and other M12-threaded camera modules. You simply screw the lens into the module's threaded receptacle, ensuring it is seated firmly but not over-tightened. Always verify the camera module's lens thread specification before installation. The 8MP resolution is well-matched for the v2 module's sensor. (Word count: 50)

A 12mm focal length lens, like this EDATEC model, provides a narrower field of view compared to common wide-angle lenses (e.g., 3.6mm or 6mm). This makes it suitable for applications where you need to see details at a medium distance, such as object recognition on a conveyor belt, reading license plates, or capturing specific areas without peripheral distortion. It offers less spatial coverage but greater detail in the center of the image. Choose based on your project's required perspective. (Word count: 50)

To install, align the lens threads with the M12 receptacle on your camera module and rotate clockwise until snug. Do not overtighten. To focus, you may need to slightly rotate the lens barrel while viewing a live feed from the camera on a monitor, adjusting until the image is sharp for your target distance. Some modules have a locking screw; if present, loosen it before adjusting focus, then retighten to secure the lens position. Ensure the sensor surface remains clean during the process. (Word count: 50)
