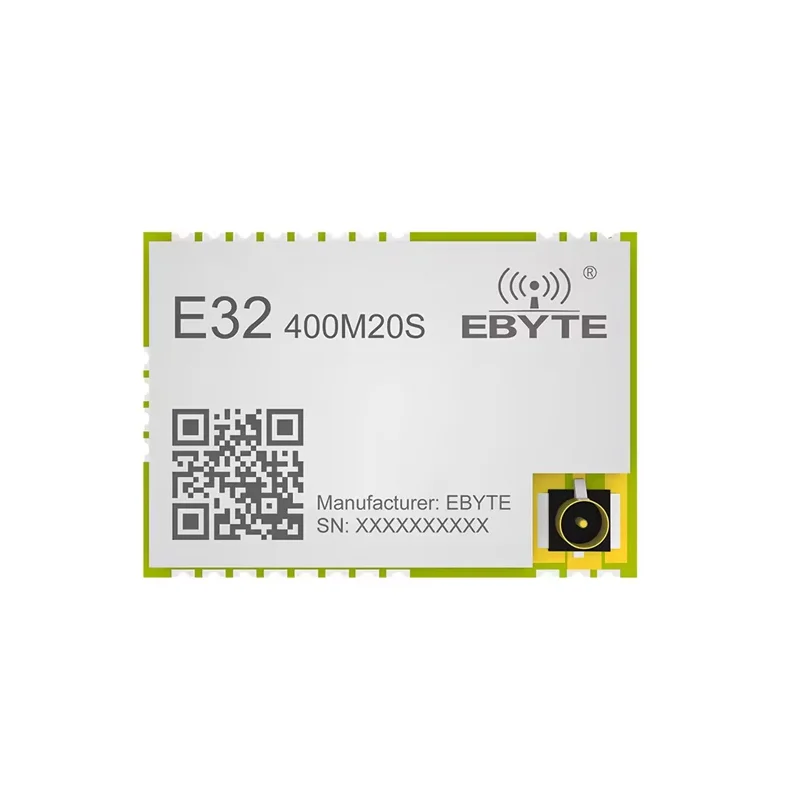

EByte E32-400M20S LoRa Wireless Module w/ SX1278
The EByte E32-400M20S is a LoRa wireless transceiver module based on the SX1278/SX1276 chipset, operating in the 400MHz band. It features a UART interface for easy integration into IoT systems, offering long-range, low-power communication ideal for remote sensor networks.
Features
- Long-range LoRa transceiver utilizing the SX1278/SX1276 chipset for robust spread spectrum communication.
- Operates on the 400MHz frequency band (E32-400M20S/E32-400M30S), with 900MHz variants also available for different regional regulations.
- Ultra-low power consumption design optimized for battery-powered IoT deployments and extended operational life.
- Simple UART (TTL) serial interface enables straightforward integration with microcontrollers like Arduino, ESP32, or STM32.
- Compact form factor with integrated RF circuitry for reliable data transmission in smart city, agricultural, and industrial monitoring applications.
Out of stock
The EByte E32-M Series LoRa module provides a dedicated wireless communication solution for IoT developers requiring sub-GHz, long-range connectivity. Built around the Semtech SX1278/SX1276 transceiver, it implements LoRa modulation for excellent link budget and interference immunity, far exceeding typical FSK/OOK performance.
This module is engineered for low-duty-cycle applications, featuring configurable transmit power and multiple operating modes to minimize average current draw. Its integrated design includes a crystal oscillator, RF matching network, and UART level conversion, simplifying PCB layout and firmware development for telemetry, remote control, and sensor data backhaul systems.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 8 × 2 cm |
