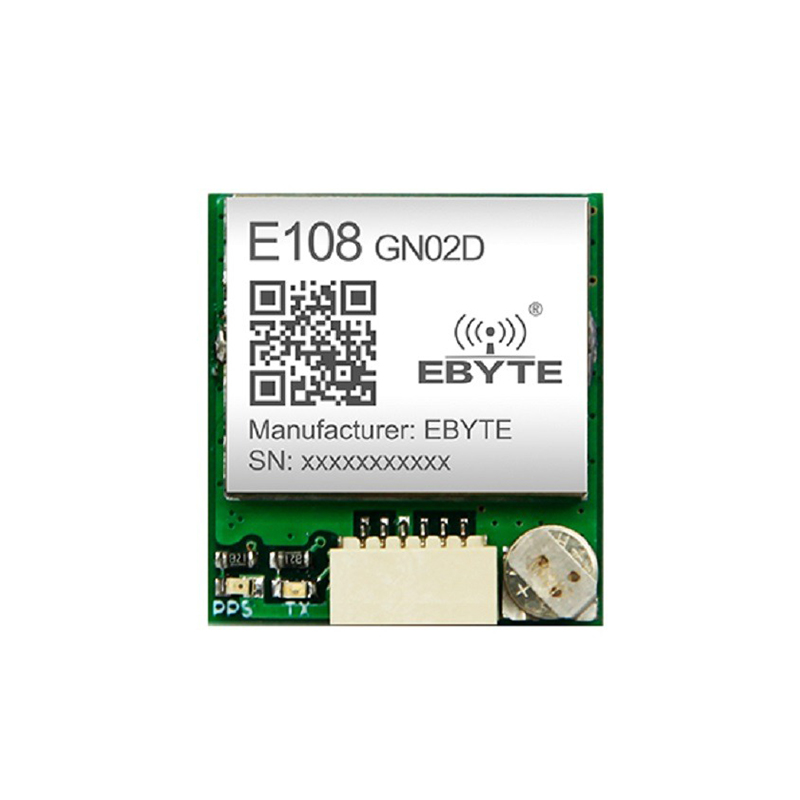

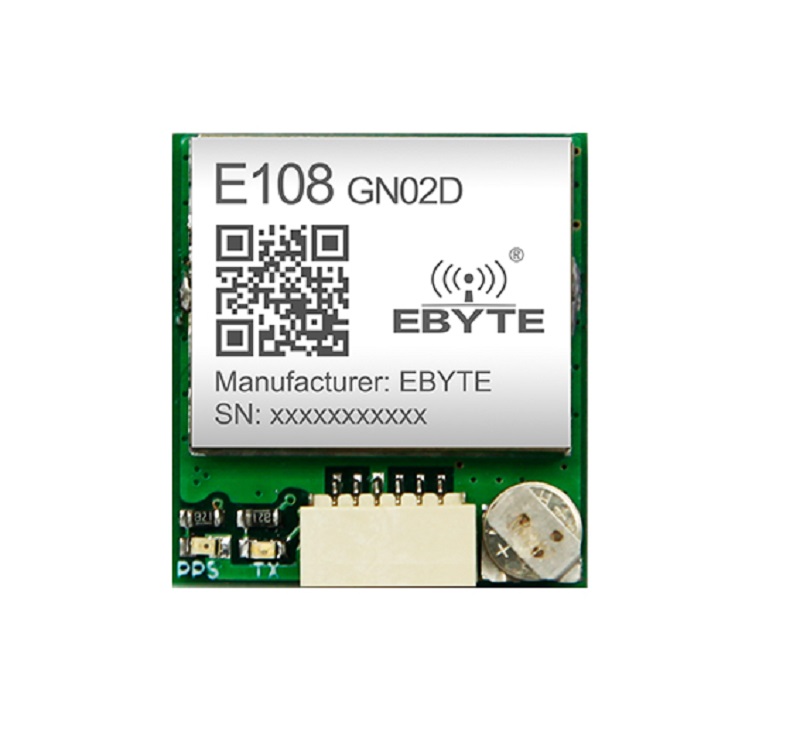

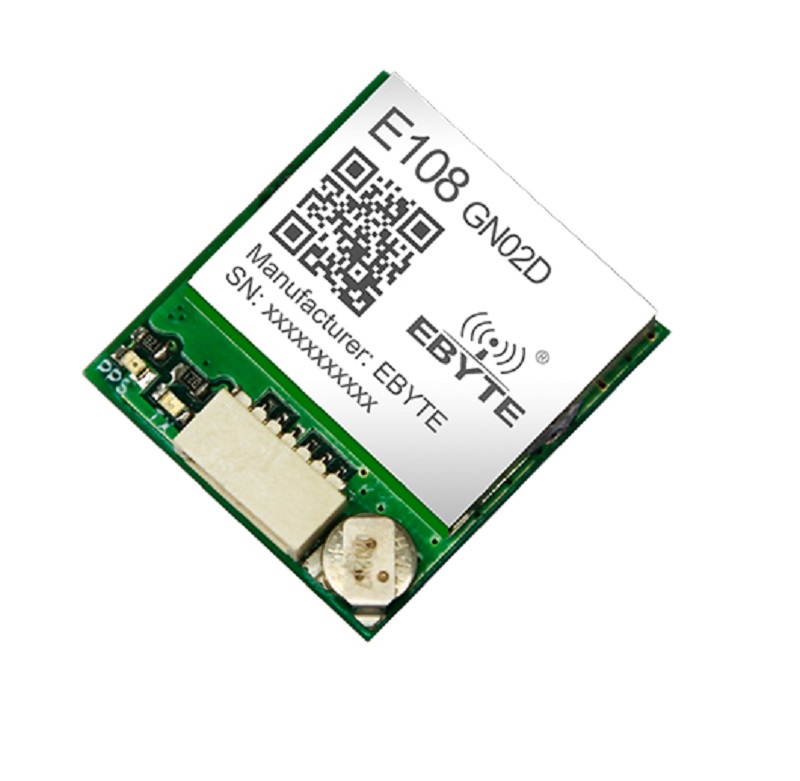

EByte E108-GN02D 10Hz BDS/GPS/GLONASS GPS Module

The E108-GN02D module offers comprehensive multi-system support, integrating satellite constellations from BDS (BeiDou Navigation Satellite System), GPS (Global Positioning System), and GLONASS (Globalnaya Navigatsionnaya Sputnikovaya Sistema). This simultaneous reception enhances signal availability and positioning accuracy in diverse operating environments, crucial for reliable drone navigation and precise location services.

This EByte module provides a fast 10Hz update rate, meaning it refreshes location data ten times per second. For drones, this rapid update is vital. It enables precise, real-time positional feedback, allowing flight controllers to maintain stable altitude and position, execute accurate waypoints, and perform dynamic maneuvers safely and effectively in high-speed FPV or autonomous flight scenarios.

The E108-GN02D requires an operating voltage between 3.3V and 5.0V, making it compatible with most drone flight controllers. For integration, connect its VCC and GND pins to the corresponding power rails on your FC, then wire the module's UART (TX/RX) to an available UART port. Ensure correct baud rate and protocol configuration in your flight controller's firmware settings.

Yes, the EByte E108-GN02D is well-suited for autonomous UAV mapping missions. Its high accuracy and 10Hz update rate provide reliable positional data essential for precise waypoint navigation and geotagging imagery. Integration with ArduPilot or PX4-based flight controllers facilitates advanced mission planning, ensuring consistent and repeatable flight paths for effective data acquisition in surveying and mapping applications.
