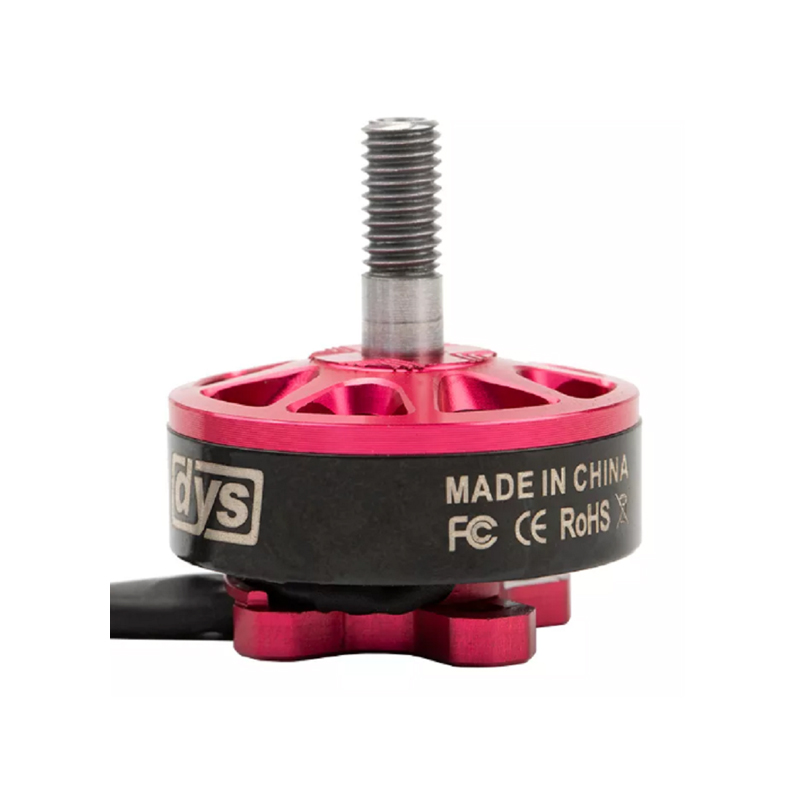

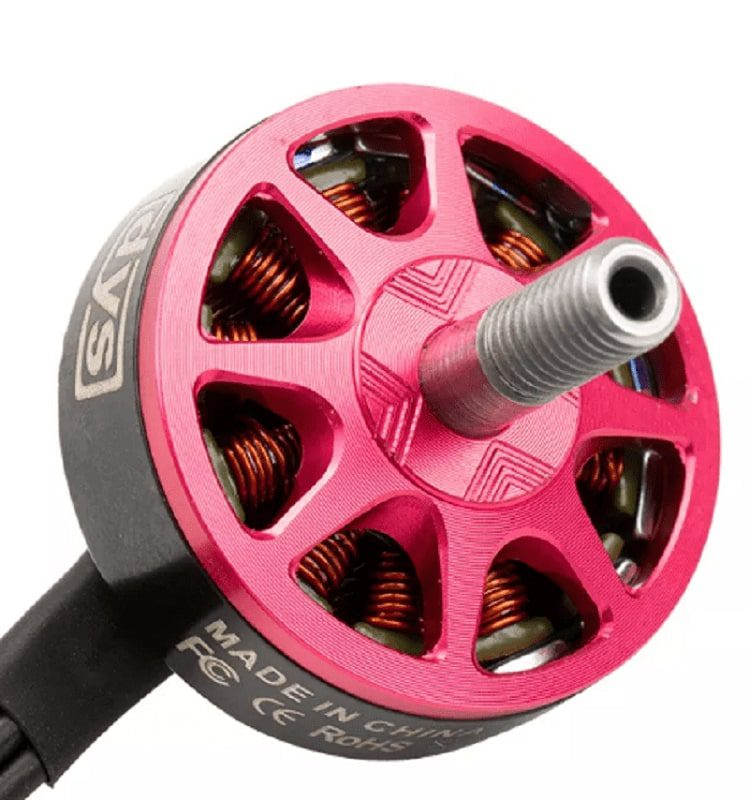

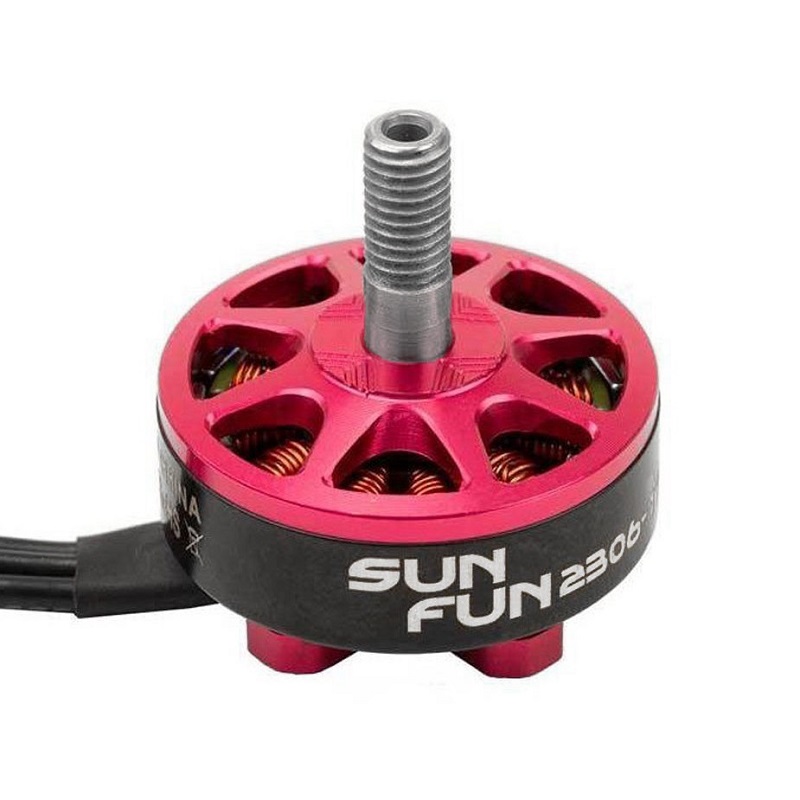

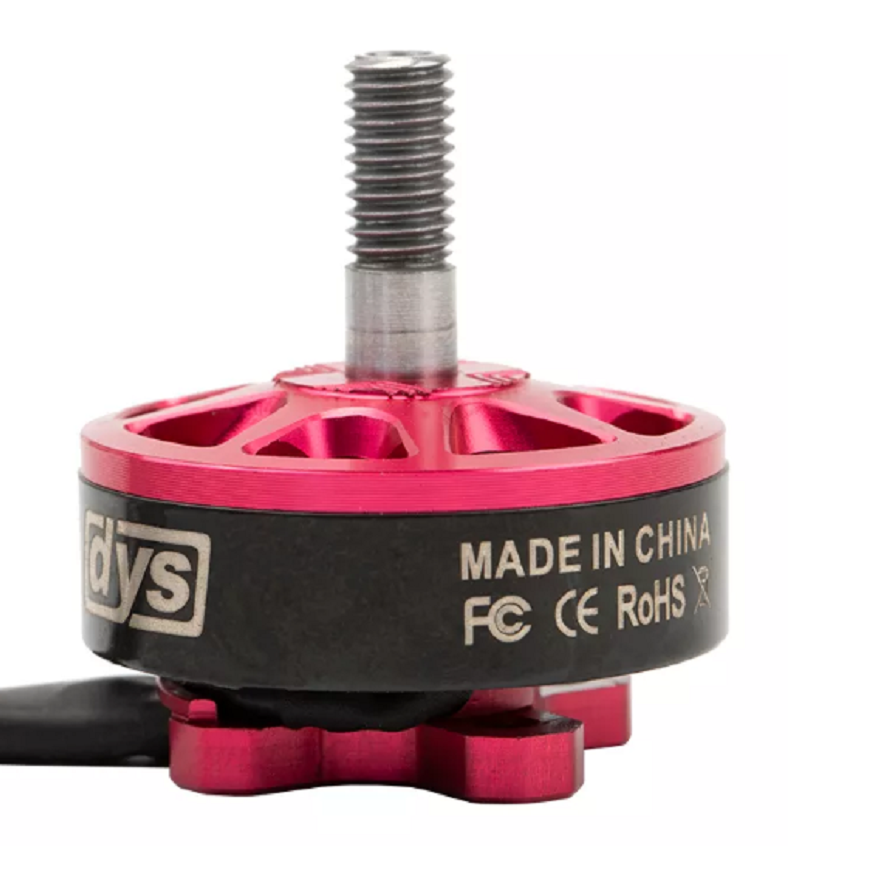

DYS SUN FUN SF2306 2500KV 4-5S Brushless Motor - 1CW M5 Nut
The DYS SUN FUN SF2306 is a 2500KV brushless motor engineered for 4-5S LiPo FPV racing drones, delivering up to 1031g of thrust per motor with a smooth, balanced performance ideal for intermediate pilots and high-speed builds.
Features
- High-performance 2500KV brushless motor optimized for 4-5S LiPo battery systems.
- Generates up to 1031 grams of thrust for responsive, high-speed FPV racing.

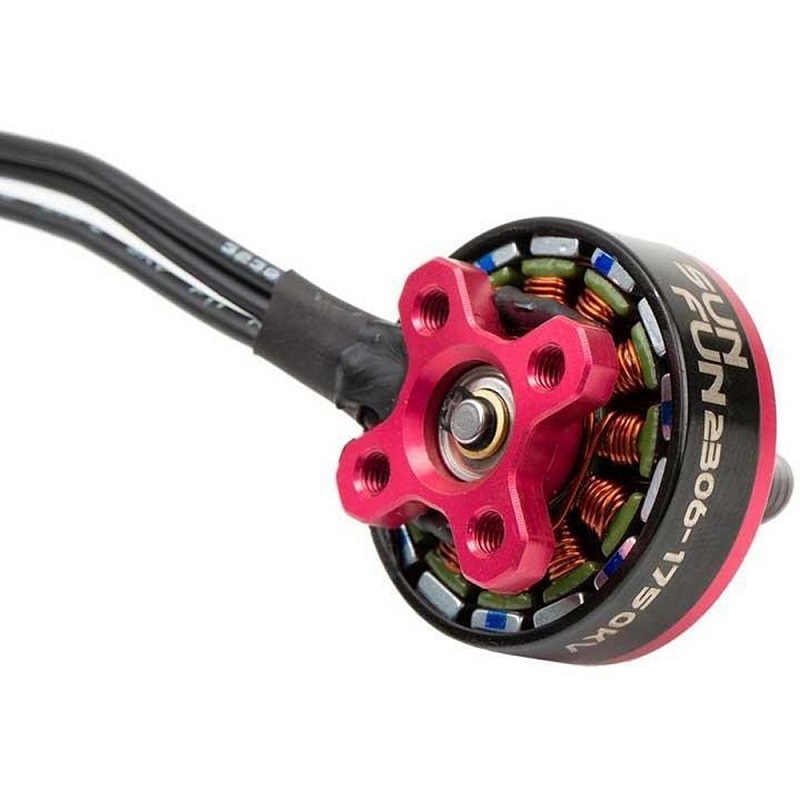

- Features a durable M5 threaded shaft and a 16x16mm motor mounting hole pattern.
- Well-balanced magnets and construction ensure smooth operation and reduced vibration.
- Compact 28.5mm diameter and 35g weight offer an optimized power-to-weight ratio.
Out of stock
The DYS SUN FUN SF2306 brushless motor is designed specifically for the demands of FPV racing, providing a reliable and powerful propulsion solution. Its 2500KV rating is perfectly matched to 4-5S LiPo packs, enabling rapid acceleration and top-end speed for competitive flying.
Built with quality components, including robust magnets and a precision-balanced bell, the SF2306 ensures efficient power delivery and minimal electrical noise. The motor’s 28.5mm stator size and M5 shaft are industry-standard, making it a compatible upgrade or replacement for a wide range of 5-inch and 6-inch racing quadcopter frames.
Additional Information
| Weight | 0.035 kg |
|---|---|
| Dimensions | 2.85 × 1.7 cm |
