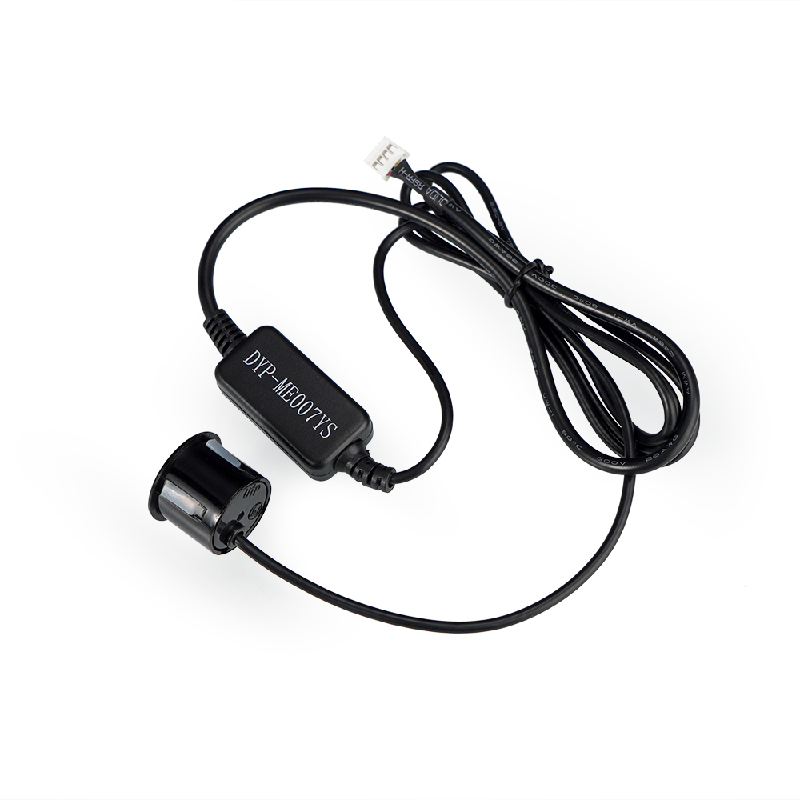

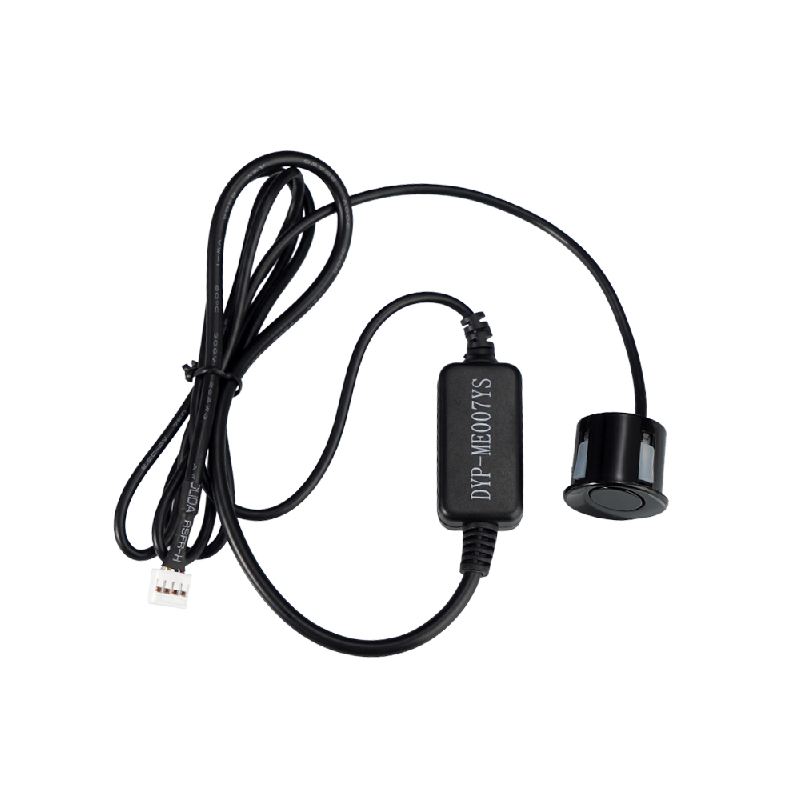

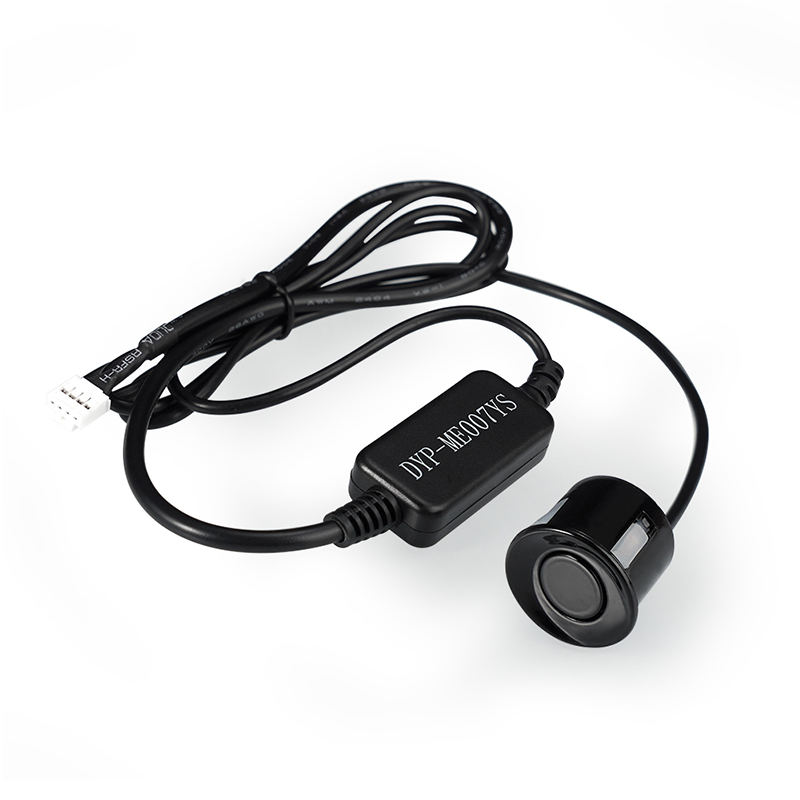

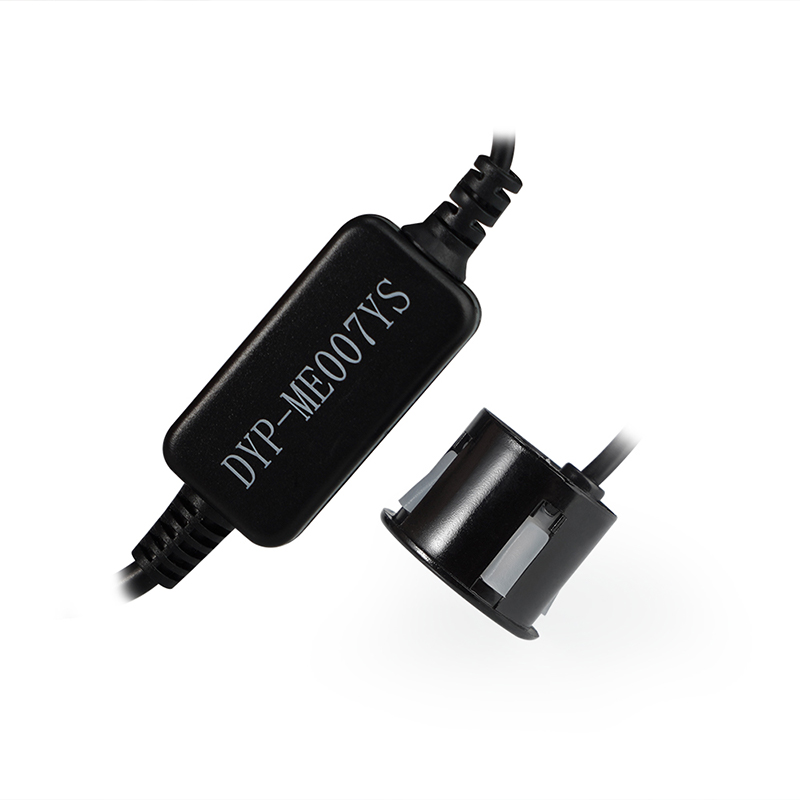

DYP-ME007YS-KG V2.0 Switch Ultrasonic Sensor Module - 28-250cm Range, UART Interface
The DYP-ME007YS-KG V2.0 is a UART-controlled, integrated waterproof ultrasonic distance sensor module designed for reliable object detection and ranging from 28 cm to 250 cm. It operates on a 5-12V DC supply and is compatible with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs via serial communication.
Features
- Integrated waterproof ultrasonic transducer for robust operation in humid or wet environments.
- UART serial interface for easy integration with microcontrollers and single-board computers.
- Wide operating voltage range of 5.0V to 12.0V DC with low average current consumption (<10mA).
- Extended detection range of 28 cm to 250 cm with a dedicated horn for improved performance.
- Internal temperature compensation ensures stable and accurate measurements across varying conditions.
Out of stock

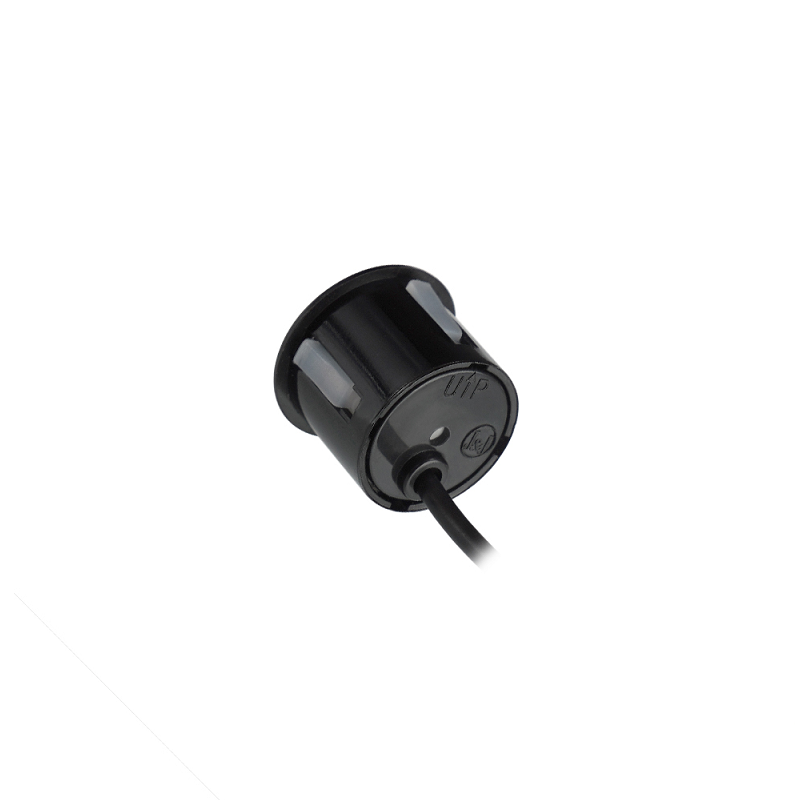

The DYP-ME007YS-KG V2.0 ultrasonic sensor module utilizes time-of-flight (ToF) measurement principles to accurately determine distance. It features a fully integrated, waterproof probe and a dedicated bell mouth (horn) to enhance directivity and extend the effective sensing range. The module incorporates a high-performance processor and internal temperature compensation circuitry to maintain precision and signal stability across its operating temperature span.
Designed for system integration, the module communicates via a simple UART protocol, outputting distance data in a serial format. This makes it suitable for direct connection to development boards like Arduino or ESP32, as well as integration into larger industrial control systems requiring reliable non-contact measurement.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 14 × 9 × 5 cm |
