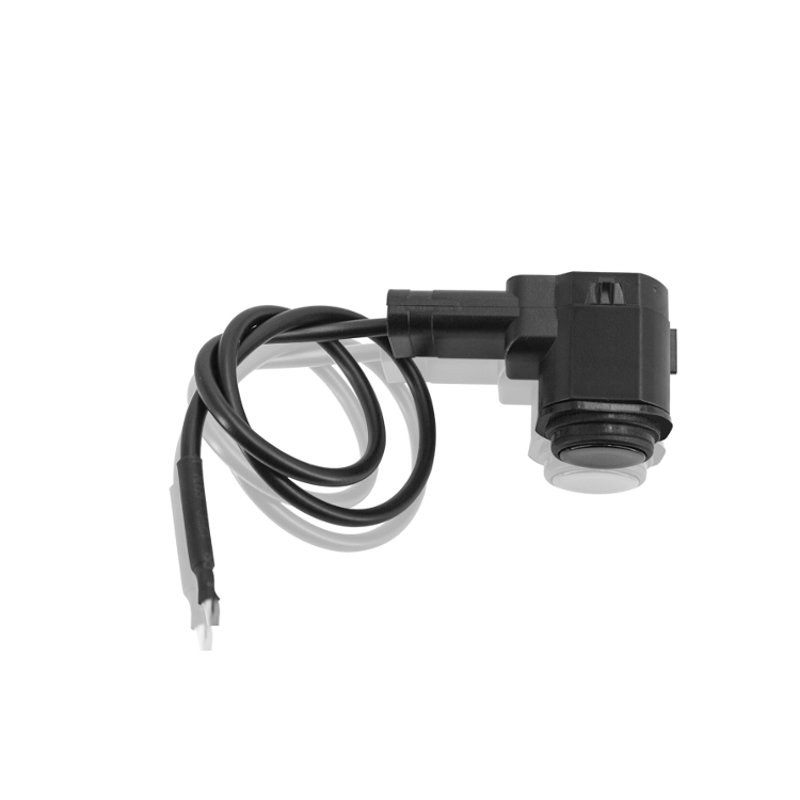

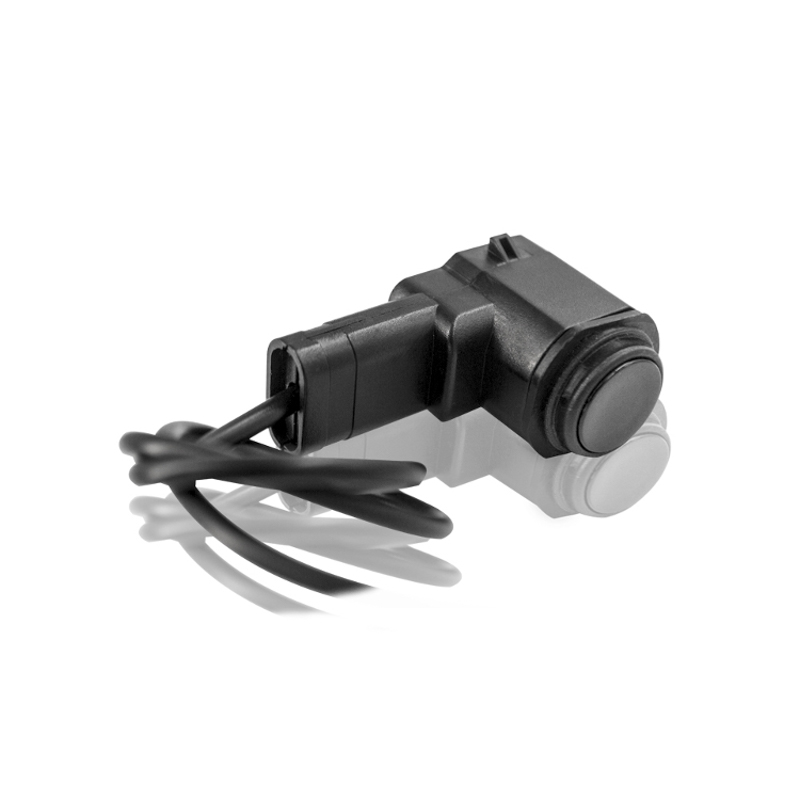

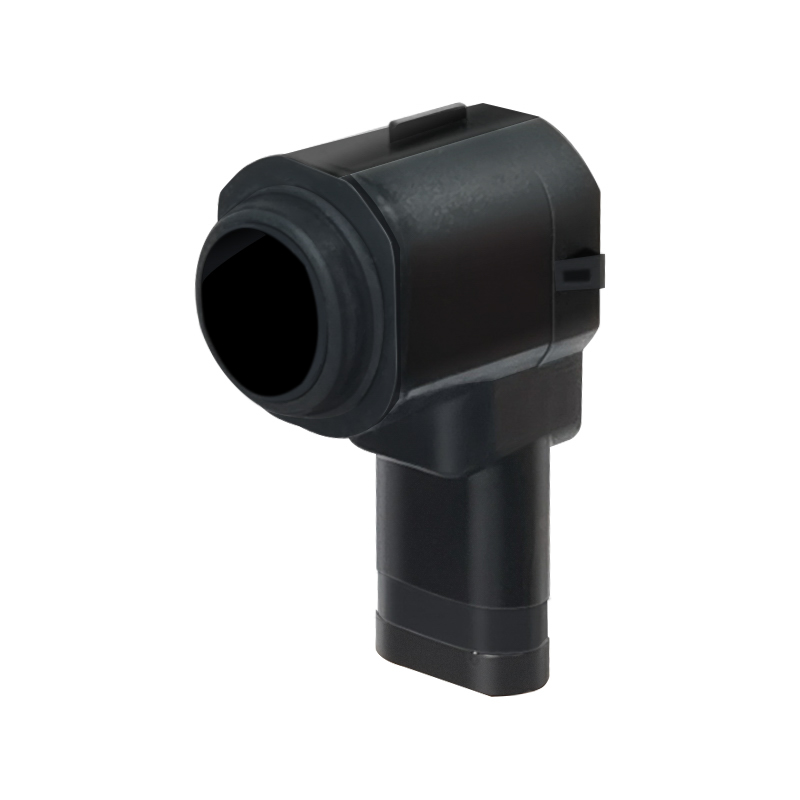

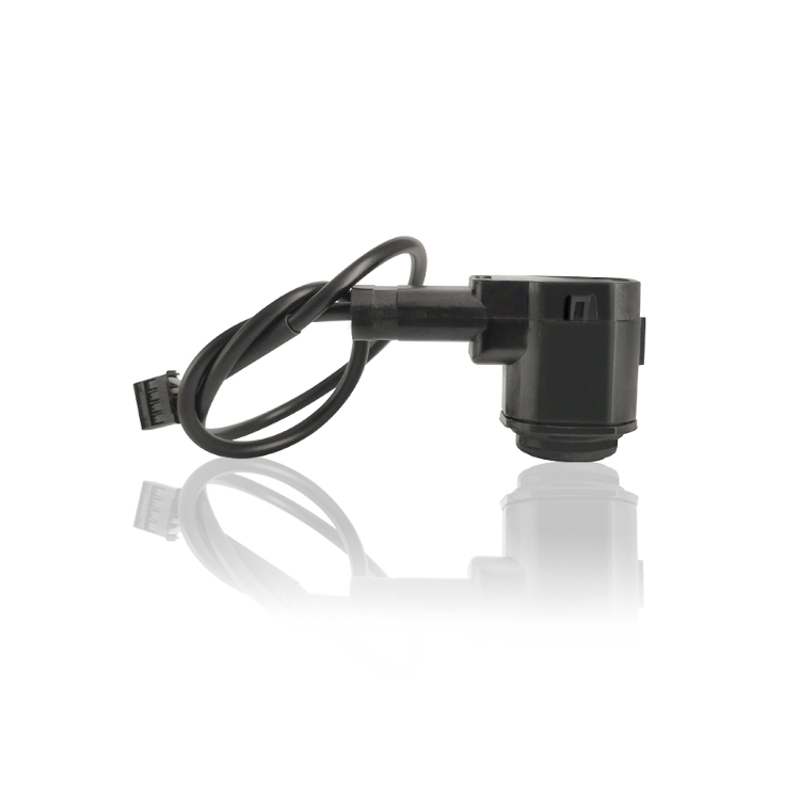

DYP-A11BNYTW-V1.0 UART Controlled Ultrasonic Sensor Module - 21–300cm Range
The DYP-A11BNYTW-V1.0 is a UART-controlled ultrasonic distance sensor module offering a measurement range of 21 to 300 cm. Operating from 3.3V to 5.25V, it is compatible with microcontrollers like Arduino, Raspberry Pi, and ESP32, providing a precise, narrow-beam solution for object detection and ranging applications.
Features
- UART-controlled ultrasonic sensor with a narrow beam angle for precise distance measurement.
- Extended measuring range from 21 cm to 300 cm with a minimal blind zone.
- Low operating voltage range of 3.3V to 5.25V for compatibility with 3.3V and 5V logic systems.
- Features a waterproof ultrasonic transducer for reliable performance in varied environments.
- Built-in high-precision ranging algorithm ensures stable and accurate readings.
Out of stock
The DYP-A11BNYTW-V1.0 ultrasonic sensor module employs time-of-flight (ToF) measurement principles, emitting ultrasonic pulses and calculating distance based on the echo return time. Its integrated signal processing circuit and advanced algorithm minimize error and power consumption, making it suitable for continuous monitoring applications.
Designed with a waterproof transducer, the module maintains performance in humid or outdoor conditions. The UART interface allows for straightforward serial communication with host controllers, enabling both automatic periodic readings and on-demand controlled measurements for flexible system integration.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 14 × 9 × 5 cm |
