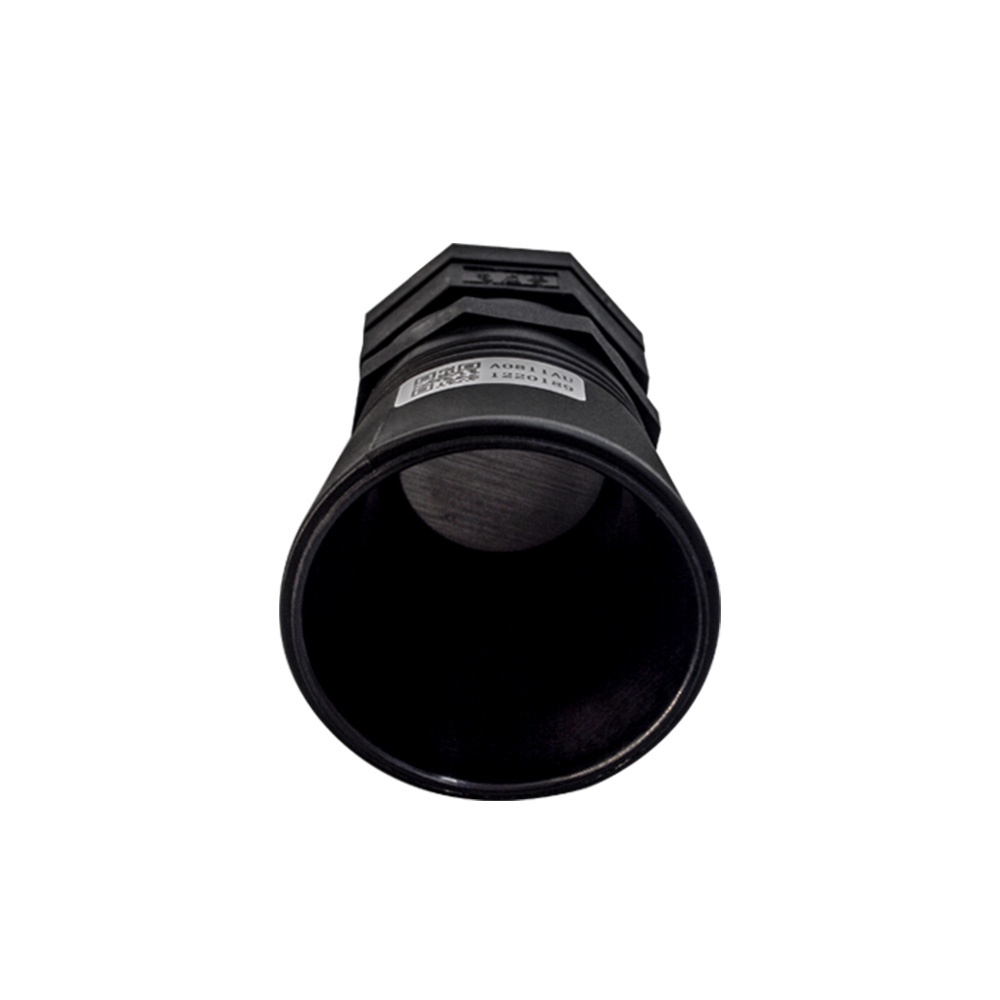

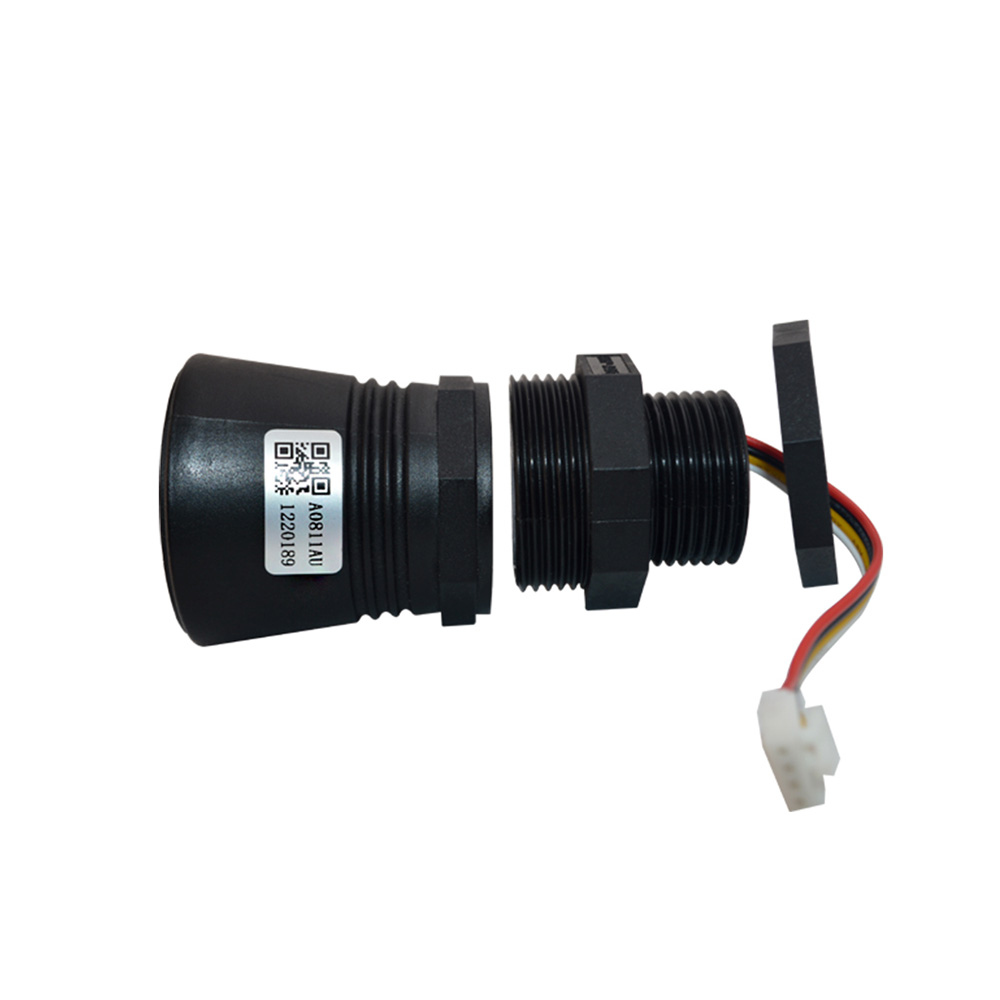

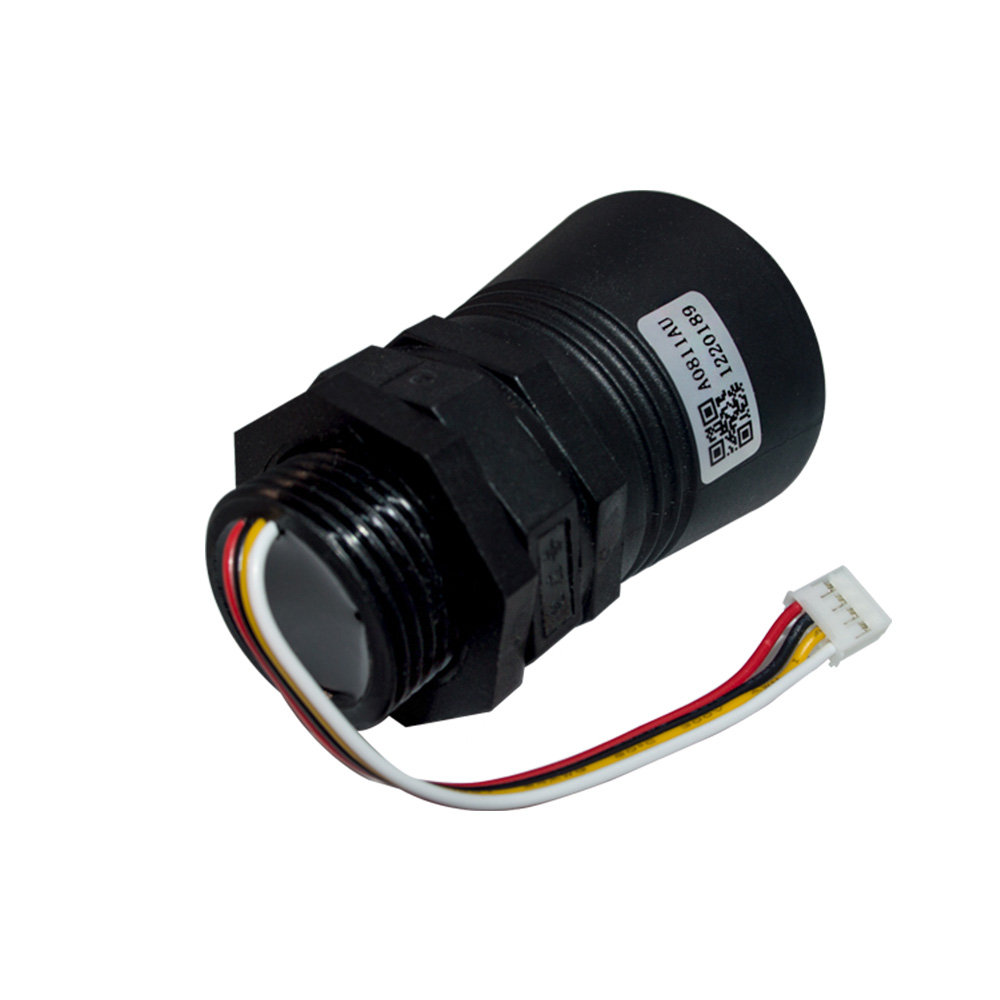

DYP A08A Series Ultrasonic Level Sensor Module - UART Controlled, Waterproof, 25-800cm Range
The DYP-A08ANYTB-V1.0 is a UART-controlled ultrasonic level sensor module designed for reliable distance measurement up to 800cm. Operating on 3.3-5V DC, it features a waterproof transducer, low power consumption, and a narrow 20° beam angle, making it suitable for integration with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs.
Features
- UART serial interface for easy integration with microcontrollers and industrial controllers.
- Waterproof ultrasonic transducer for reliable operation in damp or outdoor environments.
- Extended measurement range from 25cm to 800cm with a ±(1+S×0.3%) accuracy specification.
- Low power operation with <15mA active current and <5µA static current for battery-powered systems.
- Narrow 20° beam angle and ≤25cm blind zone for precise, focused distance sensing.
Out of stock
The DYP A08A Series sensor employs ultrasonic time-of-flight (ToF) technology for precise non-contact distance and level measurement. The module integrates a high-performance processor and a waterproof transducer, paired with a proprietary high-precision ranging algorithm, to deliver stable and repeatable readings even in challenging environmental conditions.
Designed for low-power applications, the module features intelligent power management, drawing minimal current in standby mode. Its UART serial output provides a straightforward digital interface for seamless connection to data loggers, SCADA systems, and embedded platforms like ESP32 or STM32, simplifying system integration.
Additional Information
| Weight | 0.054 kg |
|---|---|
| Dimensions | 13 × 9 × 7 cm |
