DYP-A01BNYUB-V2.0 UART-Auto Ultrasonic Sensor 28–750cm
The DYP-A01BNYUB-V2.0 is an integrated waterproof ultrasonic distance sensor module with automatic UART output, designed for reliable ranging from 28 cm to 750 cm. It operates on a 3.3-5V supply, making it compatible with microcontrollers like Arduino, Raspberry Pi, and ESP32 for robotics, automation, and industrial sensing applications.
Features

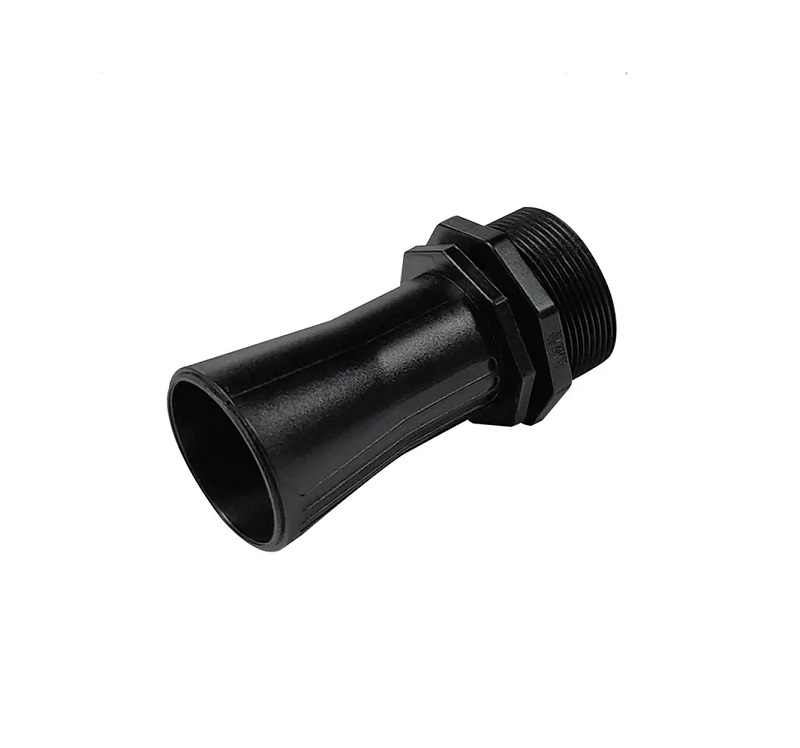

- Integrated waterproof ultrasonic probe with bell mouth for stable performance in harsh, wet, or dusty environments.
- Supports multiple output modes: UART (auto), PWM, RS485, and switch output for flexible system integration.
- Features internal temperature compensation for high measurement accuracy of ±(1 cm + 0.3% of distance).
- Ultra-low power consumption with a standby current of less than 10 µA, ideal for battery-powered devices.
- Wide operating temperature range from -15°C to +60°C with robust anti-static protection (IEC61000-4-2).
Out of stock
The DYP-A01BNYUB-V2.0 ultrasonic sensor module employs time-of-flight (ToF) ultrasonic sensing technology for precise non-contact distance measurement. Its integrated design combines a high-performance processor, a waterproof transducer, and a dedicated bell mouth to ensure consistent signal propagation and immunity to environmental interference such as moisture and dust.
This module is engineered for commercial-grade reliability, offering stable operation across a broad 28–750 cm detection range. The built-in temperature compensation circuit corrects for speed-of-sound variations, maintaining accuracy under changing ambient conditions. Its multiple configurable output interfaces allow seamless connection to PLCs, industrial controllers, or embedded development boards.
Additional Information
| Weight | 0.035 kg |
|---|---|
| Dimensions | 16 × 10 × 9 cm |
