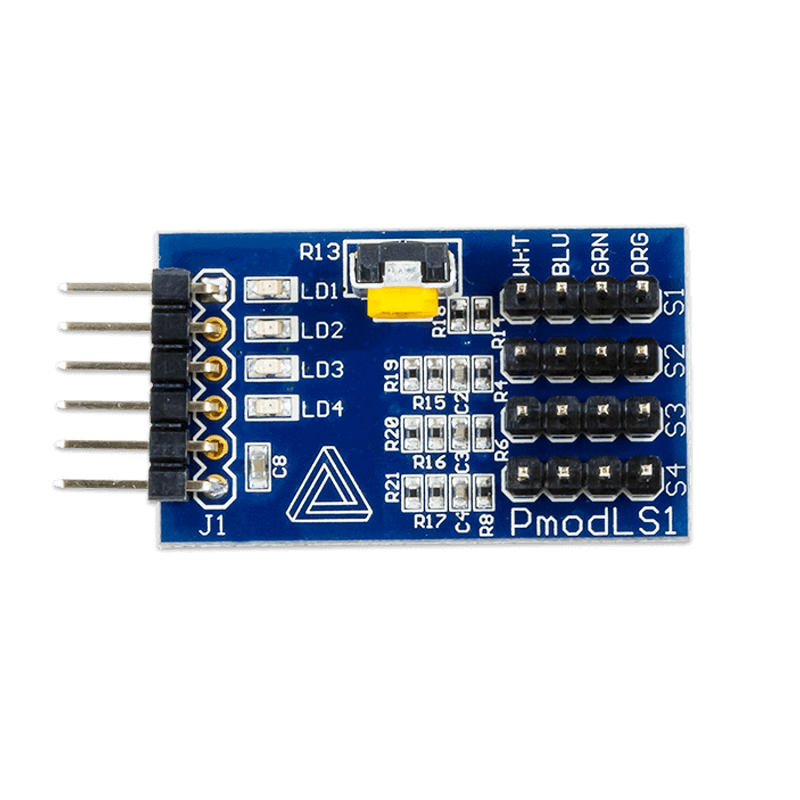

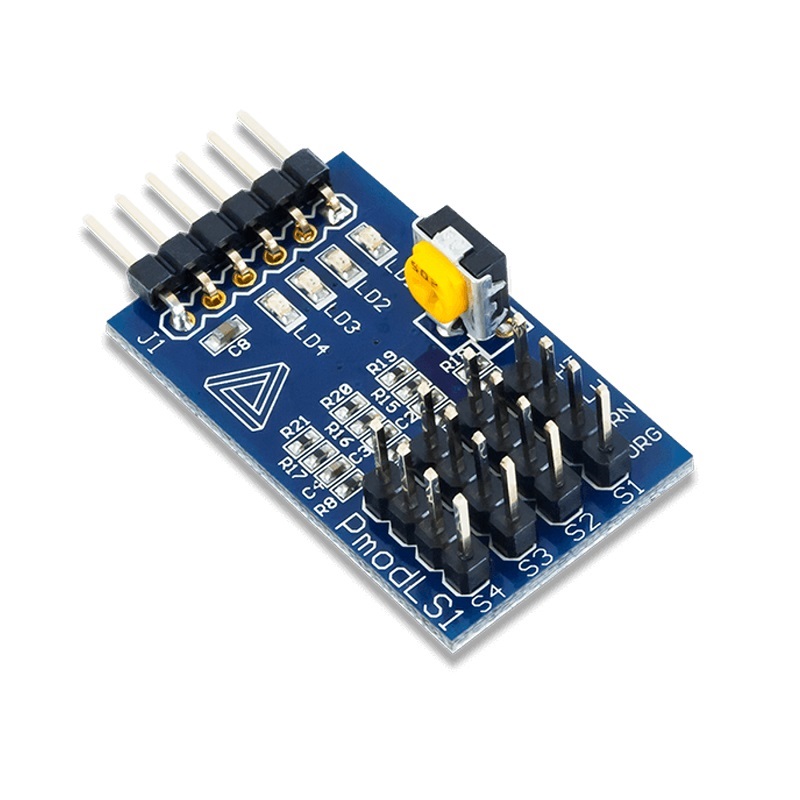

Digilent Pmod LS1 Infrared Light Detector Module - 6-Pin GPIO Interface
The Digilent Pmod LS1 is an infrared light detector module designed for proximity sensing and ambient IR light measurement. It interfaces via a standard 6-pin Pmod GPIO connector, making it compatible with Digilent FPGA/SoC boards, Arduino, Raspberry Pi, and other microcontroller platforms.
Features
- Infrared (IR) light detector module for proximity and ambient light sensing
- Standard 6-pin Pmod Type 1 GPIO interface for easy system integration
- On-board sensitivity adjustment for optimized detection range
- Compact PCB footprint: 3.6 cm x 2.0 cm (1.4″ x 0.8″)
- Compatible with Digilent IR Proximity Sensor for reflective/transmissive detection
Out of stock
The Pmod LS1 utilizes infrared photo detectors to sense ambient IR light levels, enabling applications in proximity detection, object counting, and light intensity measurement. Its analog output provides a variable voltage proportional to the detected IR intensity, which can be read by a microcontroller’s ADC pin.
The module adheres to Digilent’s Pmod Interface Specification Type 1, ensuring reliable communication and mechanical compatibility with a wide range of host boards. The on-board potentiometer allows fine-tuning of the sensor’s sensitivity to adapt to different environmental lighting conditions and detection thresholds.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 3.6 × 2 cm |
