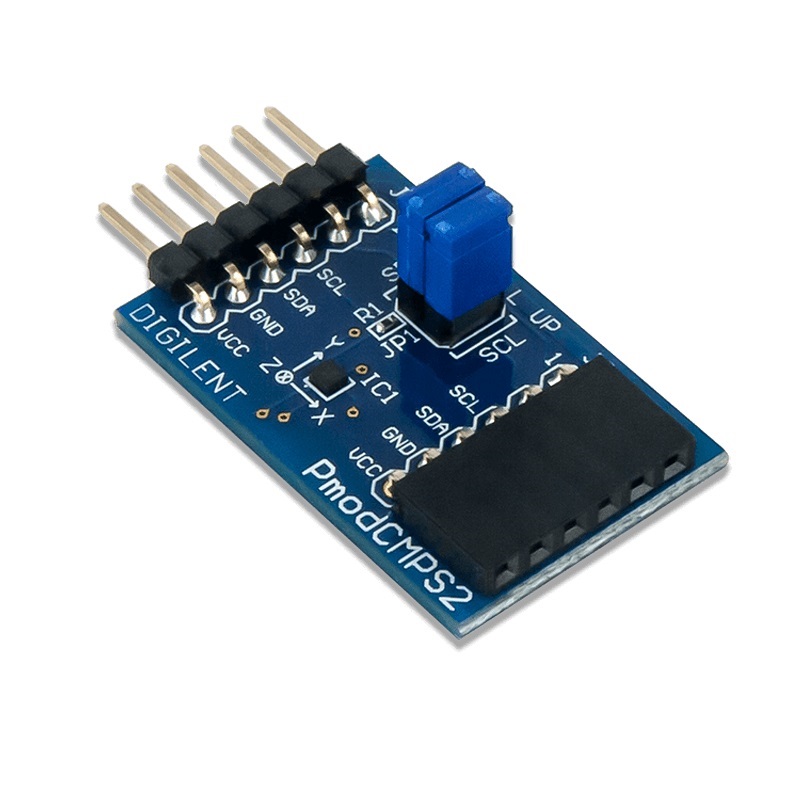

Digilent Pmod CMPS2 3-Axis Digital Compass Module - I2C Interface
The Digilent Pmod CMPS2 is a 3-axis digital compass module featuring the MMC34160PJ magnetometer, designed for easy integration with FPGA, microcontroller, and single-board computer systems via its standard 6-pin I2C Pmod interface.
Features
- High-precision MMC34160PJ 3-axis magnetometer with ±16 Gauss range
- 1° heading accuracy with 0.5 mG (milligauss) resolution
- Standard 6-pin Pmod connector with I2C interface (FAST mode ≤400 kHz)
- Compact PCB footprint: 0.8″ × 1.25″ (2.0 cm × 3.2 cm)
- Includes optional onboard pull-up resistors for SCL and SDA lines
Out of stock
The Pmod CMPS2 utilizes Memsic’s MMC34160PJ magnetometer IC to provide precise measurement of local magnetic field strength across three axes. This digital compass module outputs calibrated data via an I2C slave interface, enabling accurate heading calculation with minimal noise interference for navigation and orientation applications.
Designed in compliance with the Digilent Pmod Interface Specification 1.1.0, the module features a pass-through host port for convenient daisy-chaining with other Pmod peripherals. Its compact form factor and standard connector make it ideal for prototyping and embedded system designs requiring reliable magnetic field sensing.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 3.2 × 2 cm |
