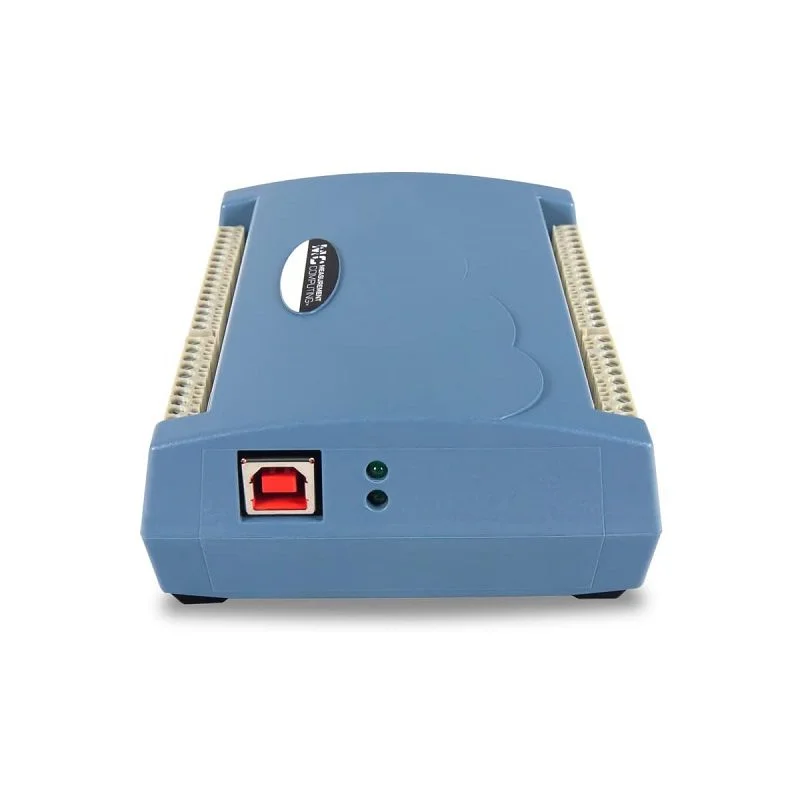

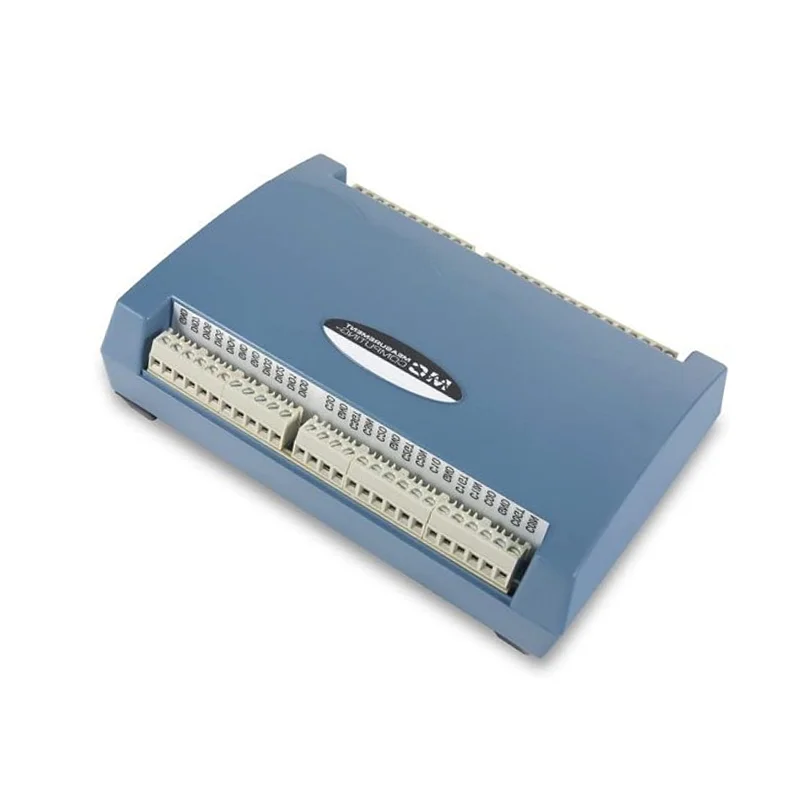

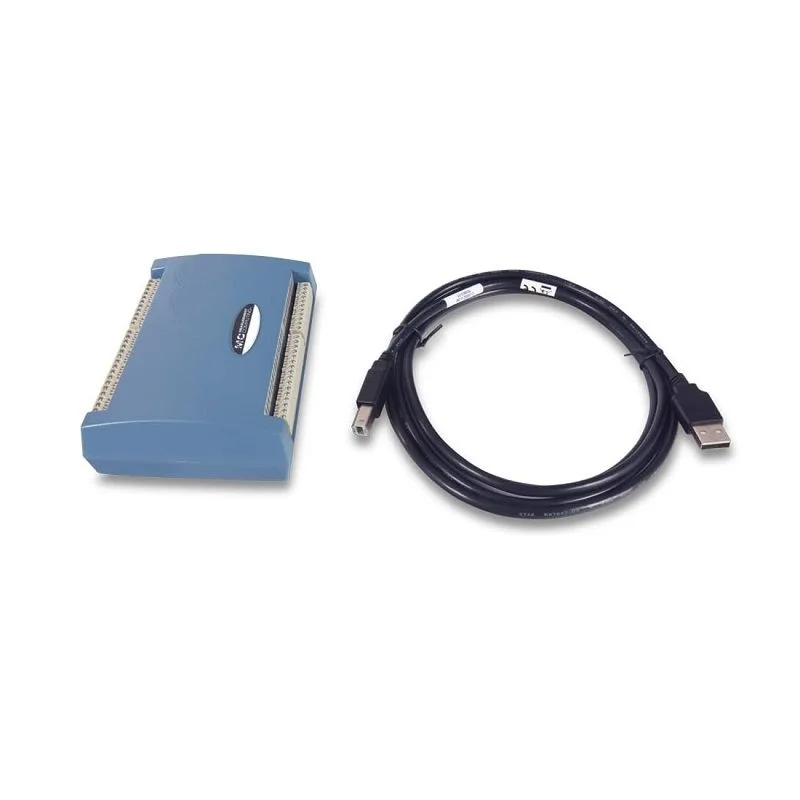

Digilent MCC USB-CTR04 High-Speed Counter/Timer USB Device
The Digilent MCC USB-CTR04 is a high-speed counter/timer USB data acquisition device featuring four counter inputs with a 48 MHz max frequency, 64-bit resolution, and an 8 MB/s scan rate, compatible with DAQami, LabVIEW, Python, and other programming environments.
Features
- Four high-speed counter/timer inputs supporting Totalize, Period, Pulse Width, and Timing modes.
- 48 MHz maximum input frequency with software-selectable resolution up to 64 bits.
- Aggregate scan rate of 8 MB/s for synchronous high-speed data acquisition.
- Four independent PWM timers and eight configurable digital I/O channels.
- Broad software support for DAQami, LabVIEW, Python, Linux, and .NET frameworks.
Out of stock
The Digilent MCC USB-CTR04 is a precision USB data acquisition device engineered for high-speed counting, timing, and digital I/O applications. It integrates four independent counter inputs capable of operating at frequencies up to 48 MHz with a configurable resolution of up to 64 bits, enabling accurate measurement of pulse counts, periods, and pulse widths. The device supports synchronous acquisition of counter and digital inputs at an aggregate scan rate of 8 MB/s, ensuring minimal latency for real-time monitoring and control systems.
Built for flexible integration, the USB-CTR04 includes four pulse-width modulation (PWM) timers for waveform generation and eight bit-configurable digital I/O channels. It is powered and controlled via a USB Type-C connection, simplifying setup in benchtop, industrial, and embedded test environments. Comprehensive driver support and software libraries for DAQami, LabVIEW, Python, Linux, and various .NET languages allow developers to rapidly deploy custom data logging, visualization, and signal generation solutions.
Additional Information
| Weight | 0.2268 kg |
|---|---|
| Dimensions | 12.7 × 8.988 cm |
