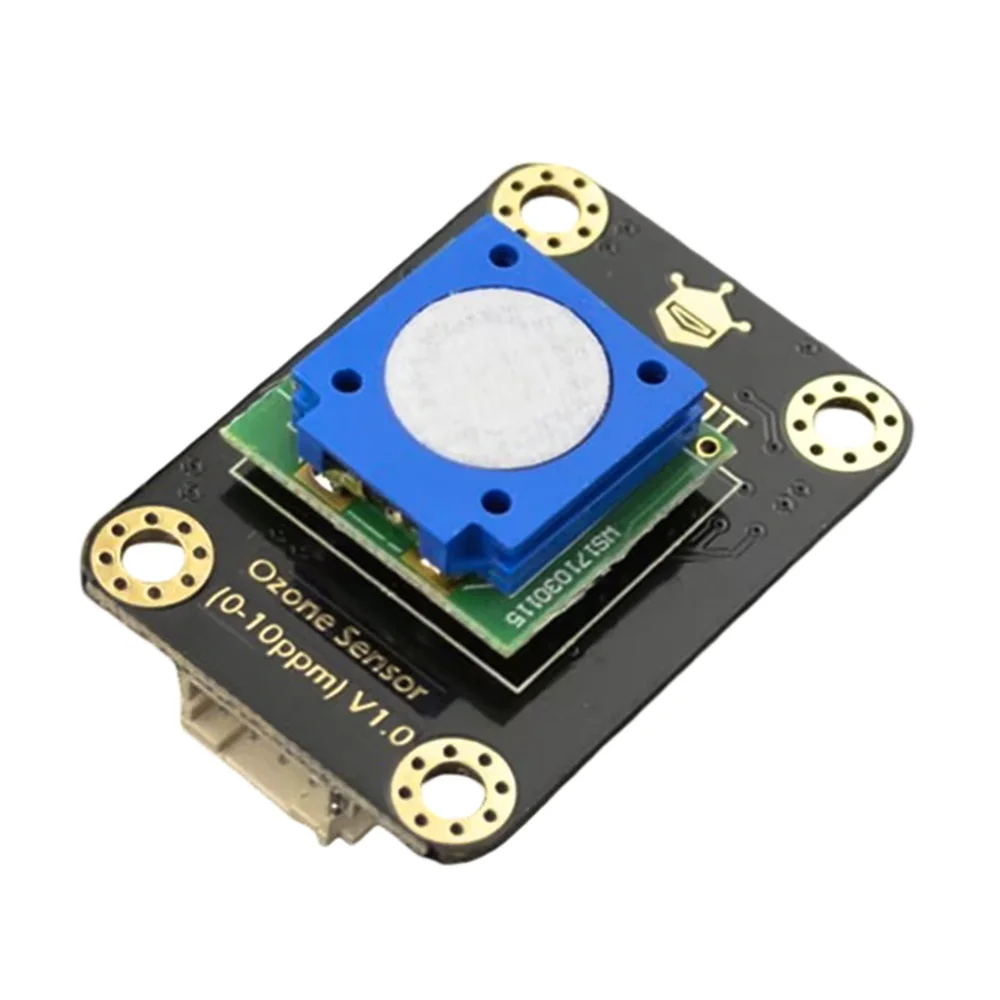

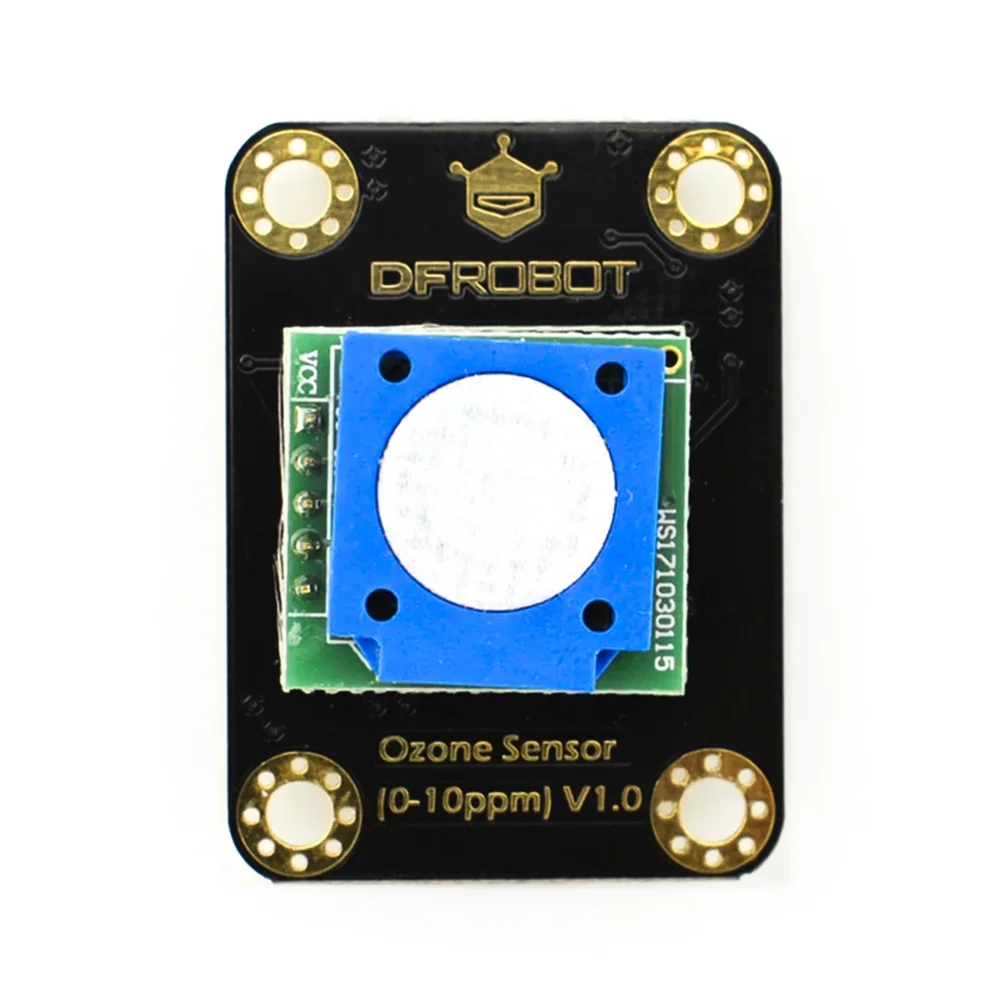

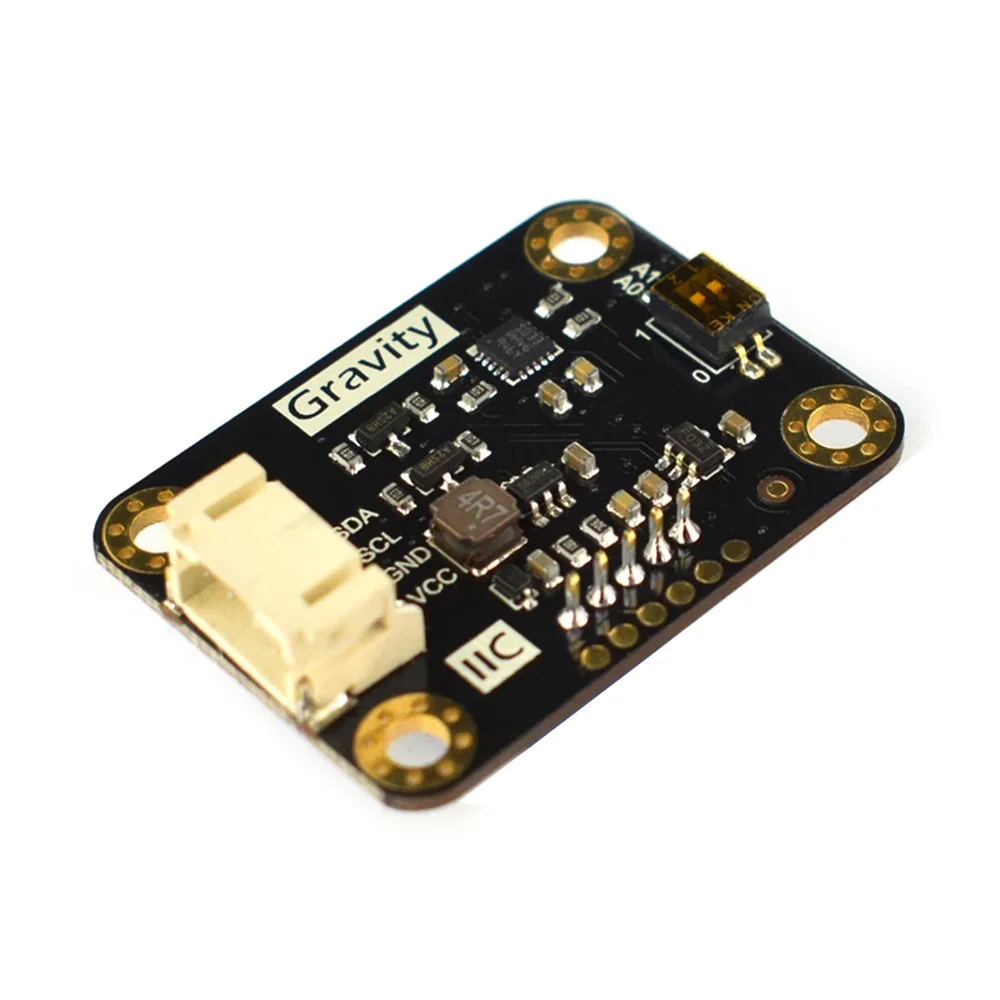

DFRobot Gravity I2C Ozone Sensor (0-10ppm) - Module w/ Gravity-4Pin Cable
The DFRobot Gravity I2C Ozone Sensor is an electrochemical gas sensor module providing accurate 0-10 ppm O3 concentration measurement via a digital I2C interface. Compatible with 3.3V/5V logic systems like Arduino, ESP32, and Raspberry Pi, it features a plug-and-play Gravity-4Pin connector for rapid integration into air quality monitoring projects.
Features
- Electrochemical Ozone Sensing: Measures ambient O3 concentration from 0 to 10 ppm with a high resolution of 10 ppb.
- Digital I2C Interface: Provides stable, noise-immune digital output via the standard Gravity-4Pin connector.
- Wide Voltage Compatibility: Operates from 3.3V to 5.5V DC, making it suitable for both 3.3V and 5V microcontroller platforms.
- Robust Environmental Specs: Operates from -20°C to +50°C and 15-95% RH (non-condensing) for reliable performance in varied conditions.
- Extended Service Life: Features a sensor lifespan exceeding two years in typical air environments.
Out of stock
This ozone sensor utilizes an advanced electrochemical sensing cell to detect and quantify ambient ozone (O3) levels. The cell generates a current proportional to the gas concentration, which is then conditioned and digitized by an onboard ASIC, providing a clean, calibrated I2C signal output. The module includes a white waterproof, breathable membrane to protect the sensing element from particulates and liquid splashes while allowing gas diffusion.

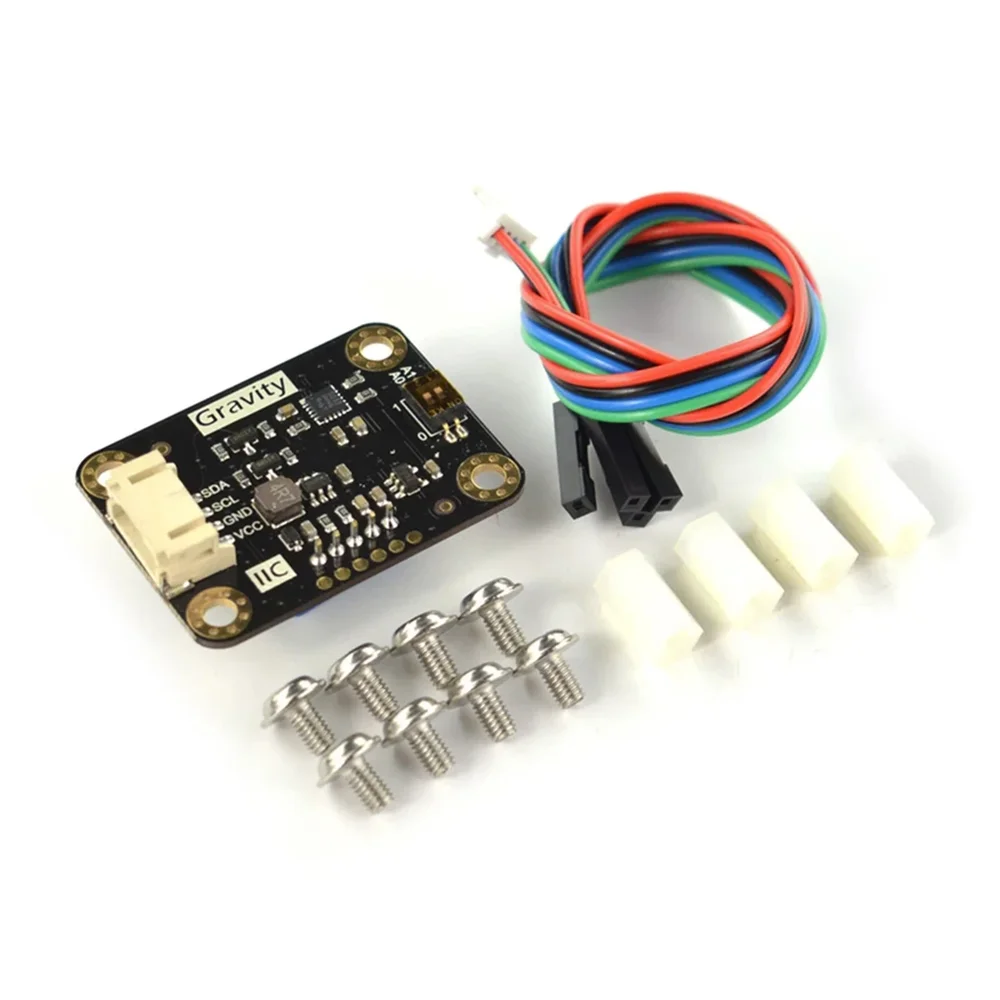

Designed for stability and low interference, the sensor requires an initial 24-48 hour warm-up period after first power-on to reach optimal performance. It features a fast response time of ≤90 seconds and includes built-in temperature compensation to maintain accuracy across its specified operating range. The compact form factor and included mounting hardware facilitate easy installation in portable monitors, HVAC systems, and indoor air quality stations.
Additional Information
| Weight | 0.022 kg |
|---|---|

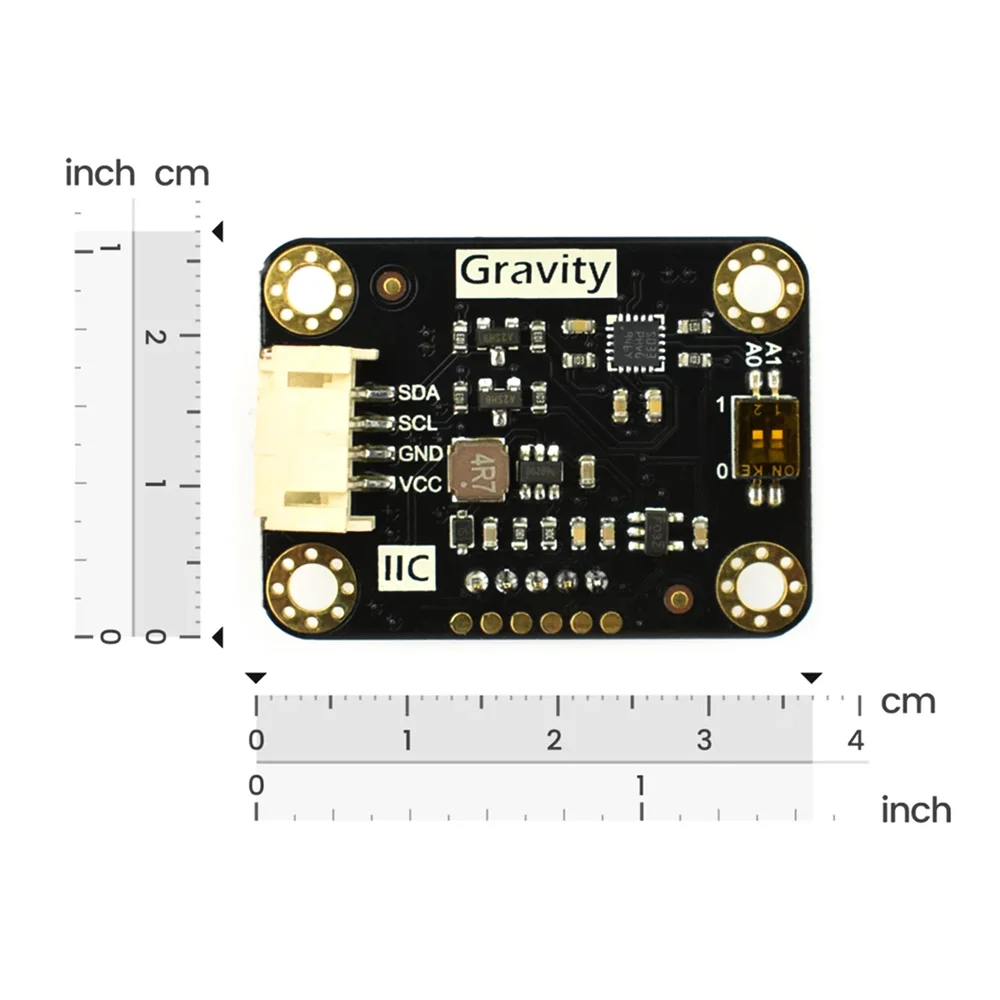

| Dimensions | 3.7 × 2.7 cm |
