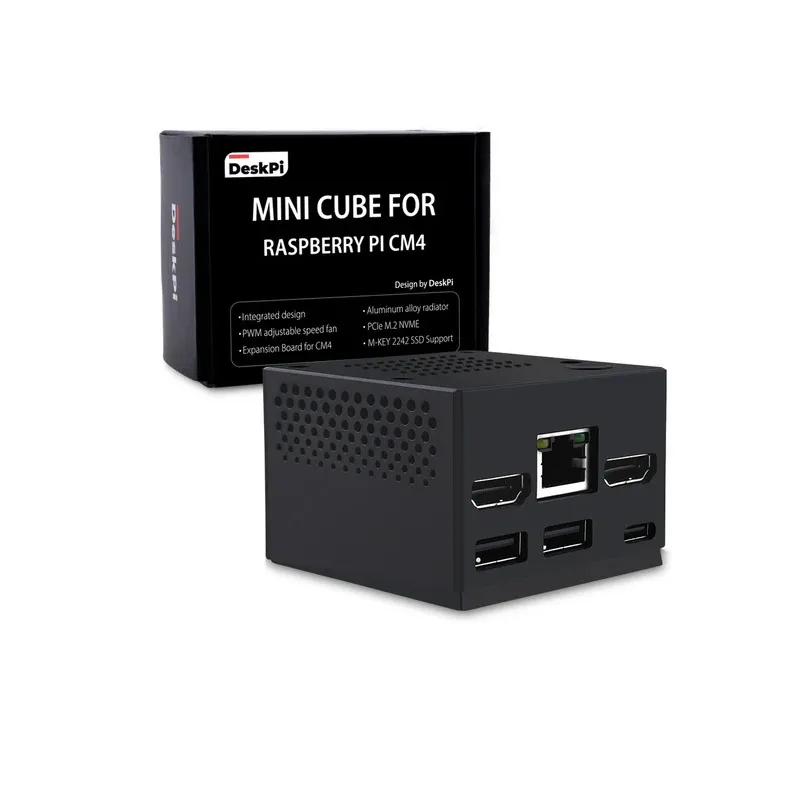

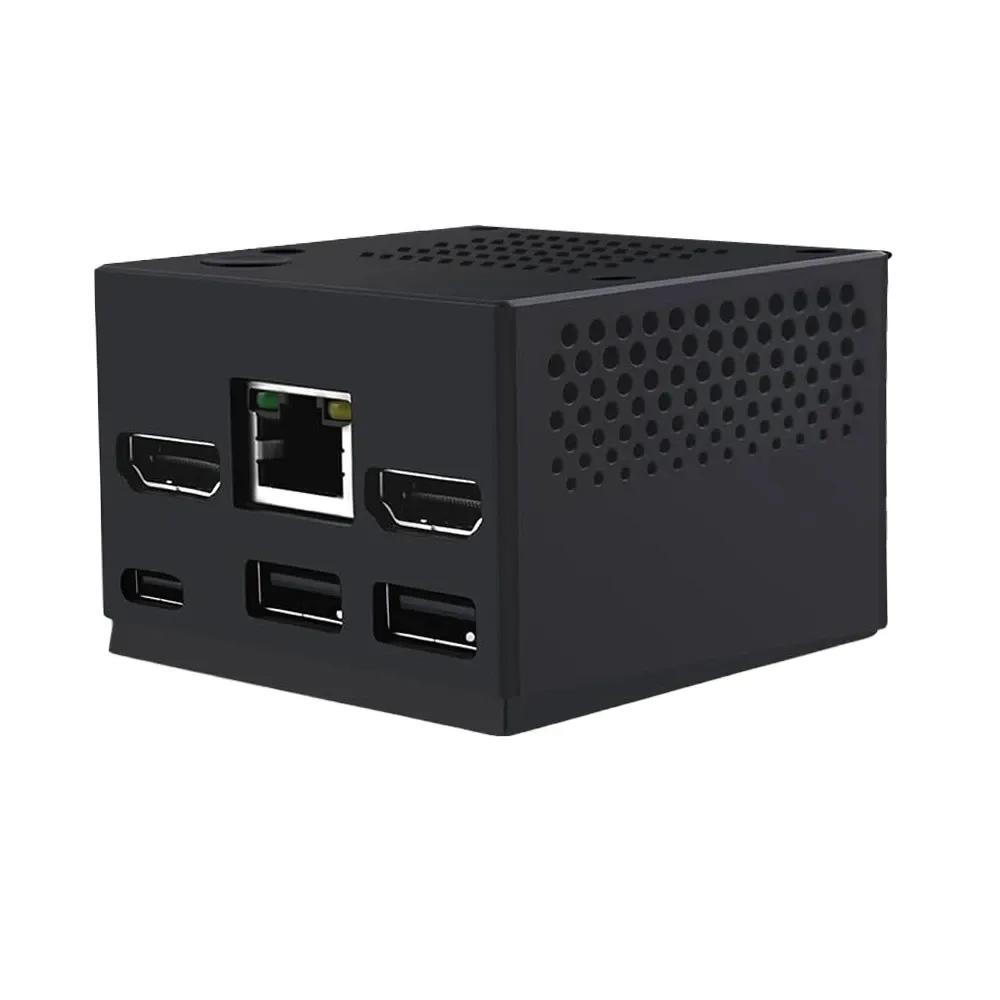

DeskPi Mini Cube for Raspberry Pi CM4
The DeskPi Mini Cube is a compact, portable enclosure designed for the Raspberry Pi Compute Module 4 (CM4), integrating essential I/O, robust thermal management, and M.2 NVMe SSD expansion capabilities. It provides dual HDMI, RJ45 Ethernet, USB ports, and a 40-pin GPIO breakout for versatile embedded applications.
Features
- Compact enclosure for Raspberry Pi Compute Module 4 (CM4)
- Integrated aluminum alloy radiator with PWM-controlled silent fan
- Features dual HDMI, RJ45 Ethernet, and 2x OTG USB ports
- PCIe M.2 NVME M-KEY 2242 SSD slot for high-speed storage expansion
- Includes 40-pin GPIO breakout, RTC module, and configuration DIP switch
Out of stock

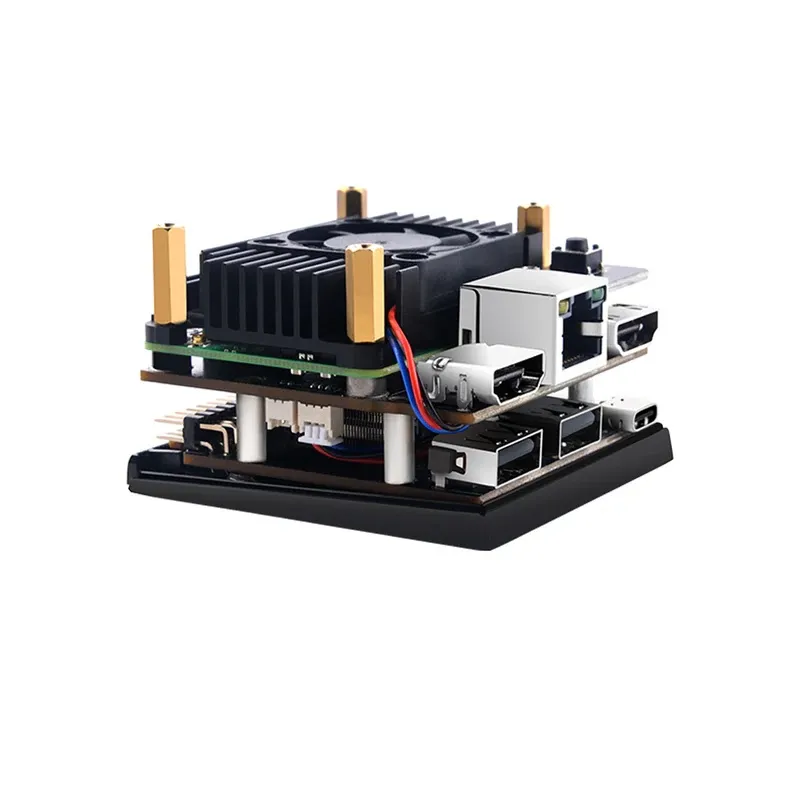

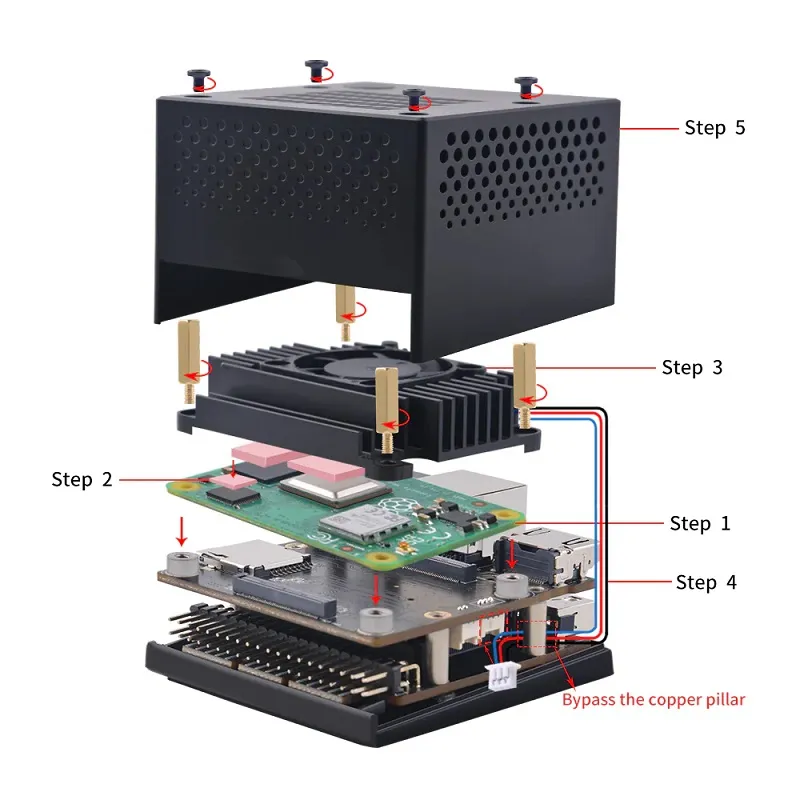

The DeskPi Mini Cube is a miniature, highly portable case engineered specifically for the Raspberry Pi Compute Module 4 (CM4), offering comprehensive functionality within a compact footprint. This enclosure features an integrated thermal solution comprising a robust aluminum alloy radiator paired with a silent fan that supports PWM speed regulation, ensuring optimal heat dissipation and stable operation for your CM4.

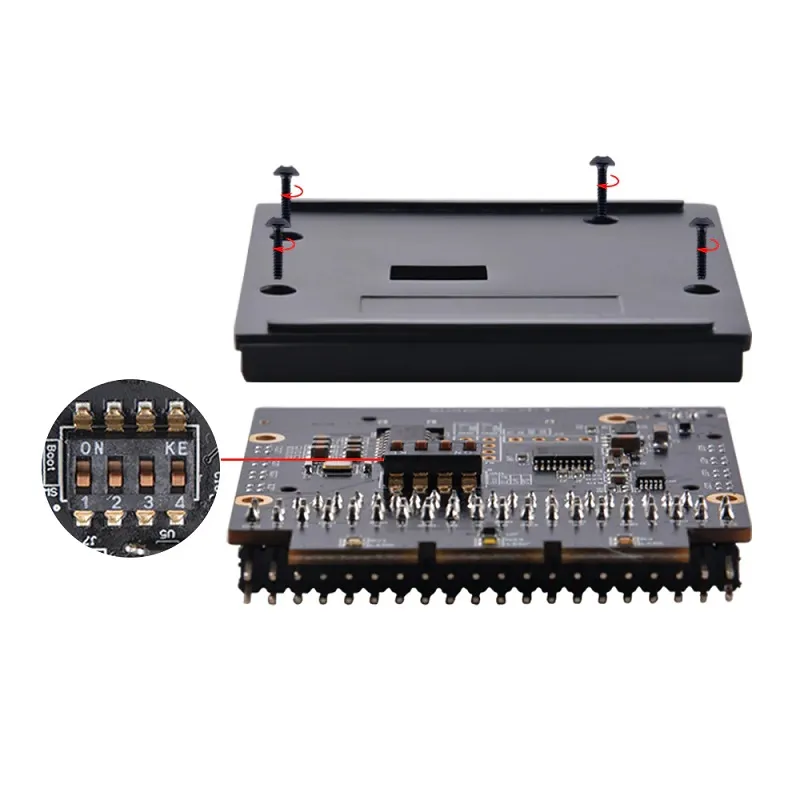

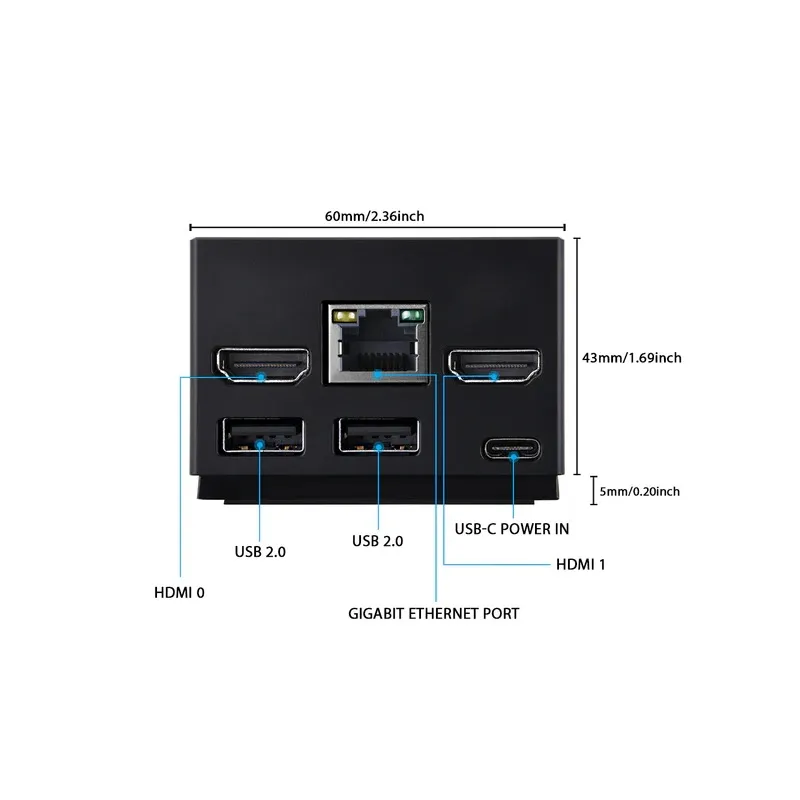

Beyond its thermal capabilities, the DeskPi Mini Cube significantly expands the CM4’s I/O. It provides dual full-size HDMI interfaces for multi-display setups, a reliable RJ45 Ethernet port, and two OTG USB 2.0 ports for peripheral connectivity (requiring dwc2 Overlay configuration). A key feature is the PCIe interface, which supports M.2 NVME SSD M-KEY 2242 external storage, enabling high-speed data access and expanded system capacity. A convenient DIP switch on the back facilitates special pin configurations for the CM4, such as enabling USB boot mode or disabling eMMC.
Further enhancing its versatility, the enclosure includes a 40-pin GPIO breakout for interfacing with external hardware and a reserved RTC clock battery interface for accurate timekeeping. The included IPX antenna, operating across 2400-2500 MHz and 4900-5900 MHz with an IPEX1 connector and approximately 3 dBi gain, provides robust wireless connectivity, making the DeskPi Mini Cube an ideal solution for a wide range of embedded and edge computing projects.
Additional Information
| Weight | 0.195 kg |
|---|---|

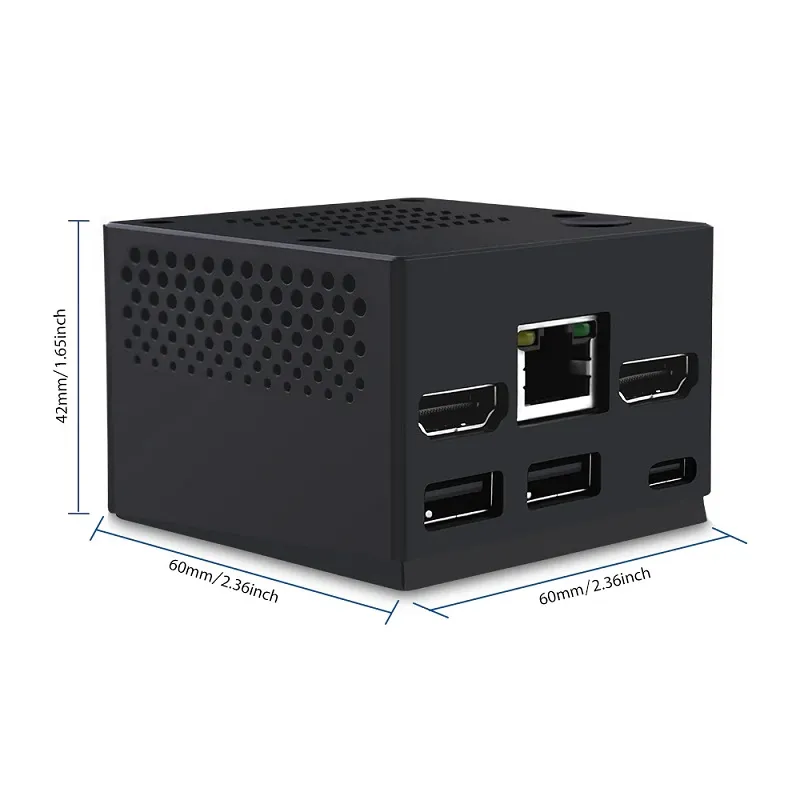

| Dimensions | 8 × 7 × 5 cm |
