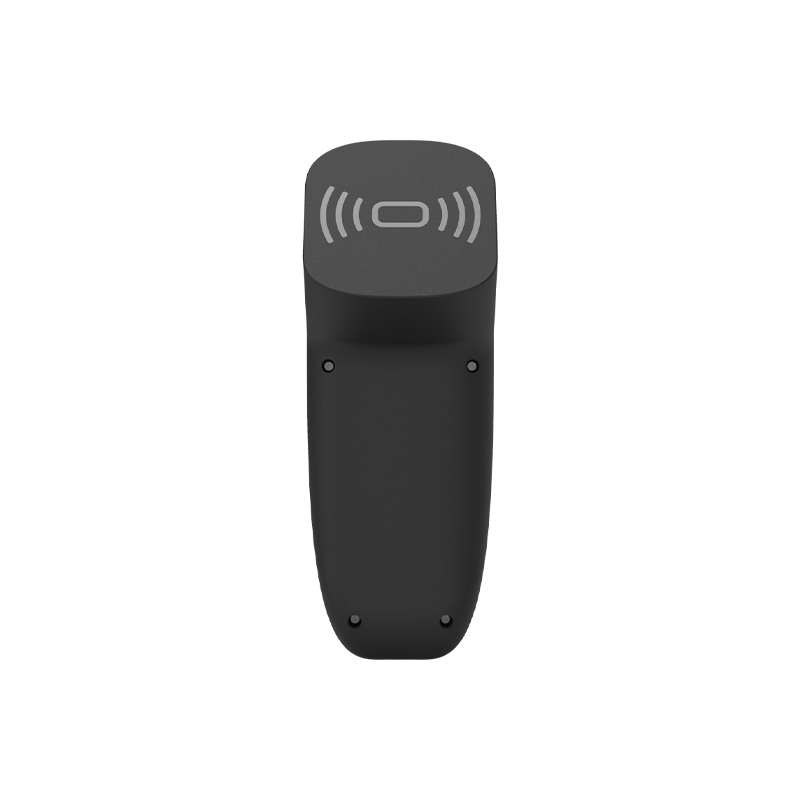

CHAFON H102 UHF Portable RFID Reader with Cable, BLE 4.2, 865~868 MHz, 0~26dBm
The CHAFON H102 is a handheld UHF RFID reader module offering dual Bluetooth 4.2 BLE and USB Type-C connectivity for mobile and PC-based asset tracking systems. It supports ISO18000-6C (EPC Gen2) protocol with an adjustable RF power up to 26dBm for reading ranges up to 1 meter.
Features
- Dual-mode connectivity via Bluetooth 4.2 BLE and USB Type-C serial port.
- Adjustable RF output power from 0 to 26dBm for optimized read range and compliance.
- High-speed reading capability exceeding 30 tags per second.
- Integrated 1000mAh lithium battery provides over 4 hours of continuous operation.

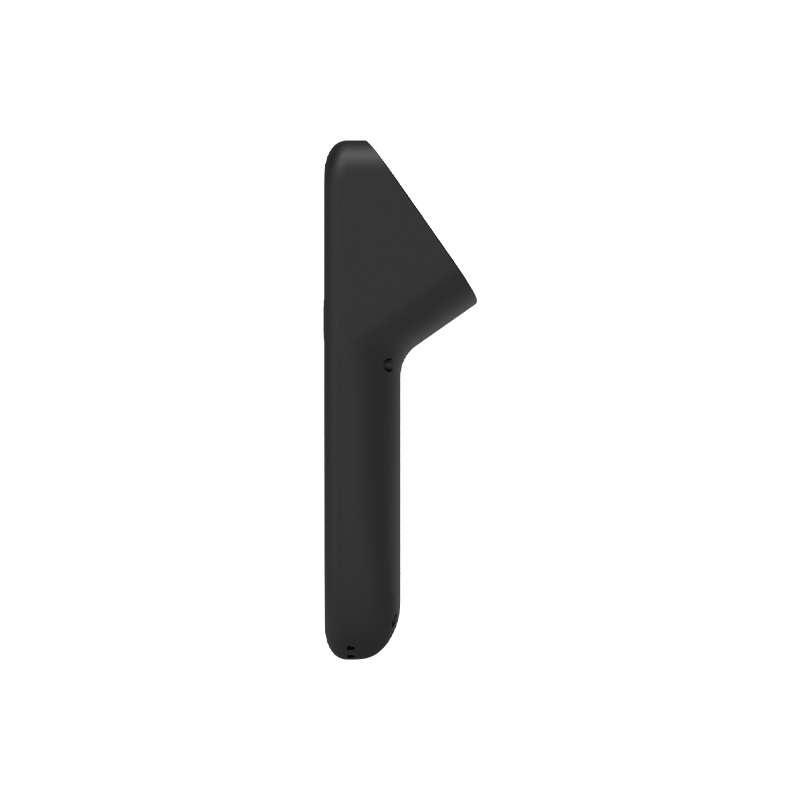

- Compact handheld form factor (138x53x40mm) with ergonomic silicon and ABS housing.
Out of stock
The CHAFON H102 Portable RFID Reader is engineered for efficient UHF tag inventory and asset management. It operates on the ISO18000-6C (EPC Gen2) standard across regional frequency bands (865–868MHz EU, 902–928MHz US), providing flexible deployment in global logistics and retail environments. The device integrates a high-sensitivity RF front-end and digital signal processing for reliable tag identification in dense tag populations.

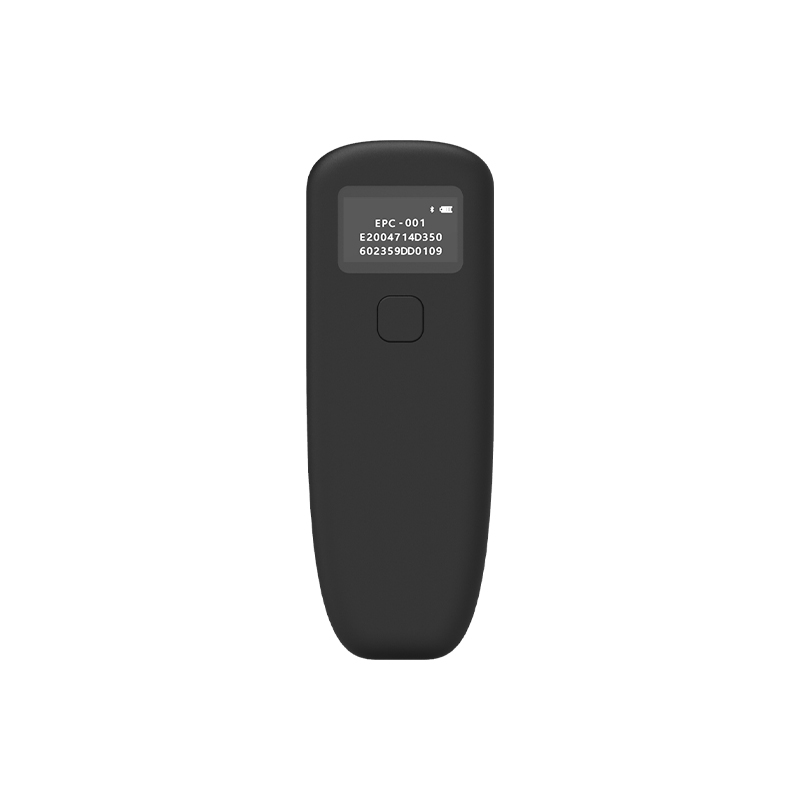

Its dual communication interfaces allow seamless integration into both mobile workflows via Bluetooth Low Energy and stationary PC systems via the USB Type-C serial port. The built-in LCD provides real-time feedback on tag data, read counts, and system status, enabling operator verification during audits. The robust silicon-over-ABS construction ensures durability for daily use in warehouse, manufacturing, and retail settings.
Additional Information
| Weight | 0.135 kg |
|---|---|
| Dimensions | 13.8 × 5.3 × 4 cm |
