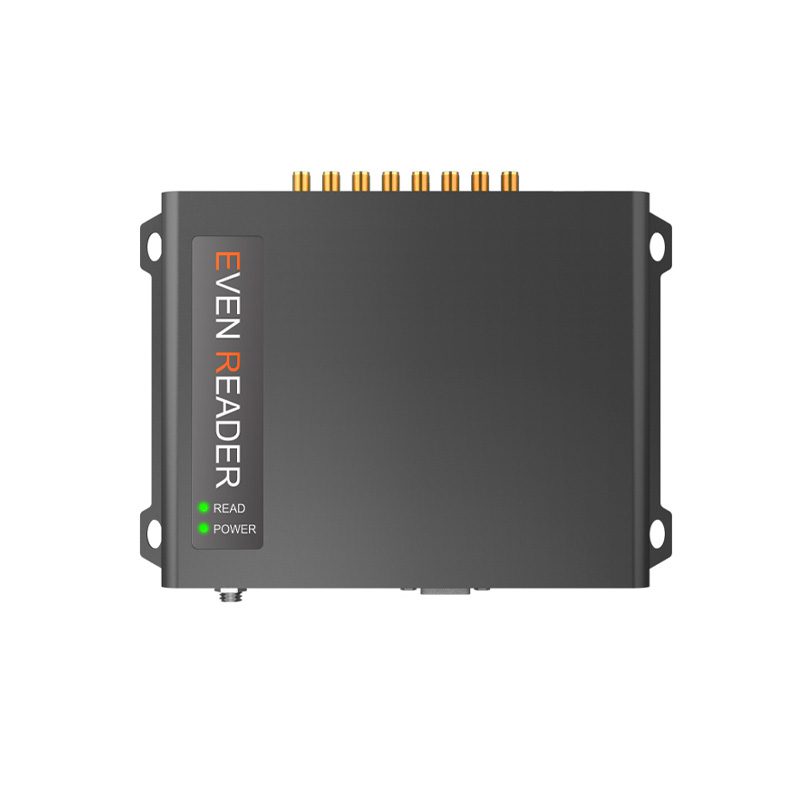

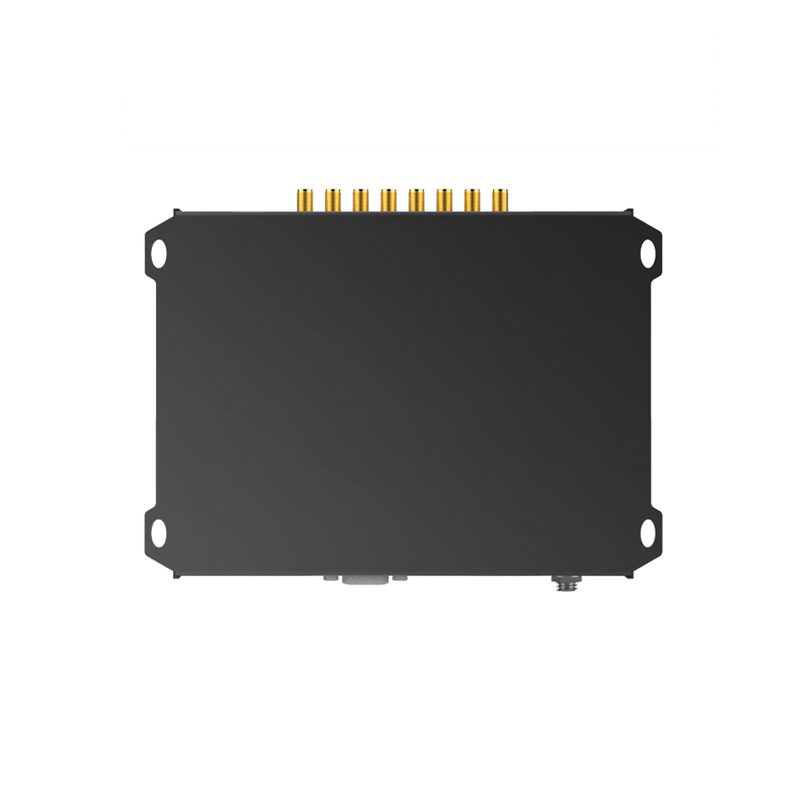

CHAFON CF816 Industrial UHF RFID Fixed Reader with Impinj E710, 8 Antenna Ports, 800 Tags/s, Range: Up to 25 m
The CHAFON CF816 is an industrial-grade UHF RFID fixed reader built around the Impinj E710 chip, offering high-speed tag reading up to 800 tags/sec and a configurable read range up to 25 meters. It features 8 SMA antenna ports, USB/RS232/TCP/IP interfaces with optional PoE, and is designed for integration into large-scale logistics, warehouse management, and asset tracking systems.
Features
- High-performance Impinj E710 chip enables reading speeds up to 800 tags per second.

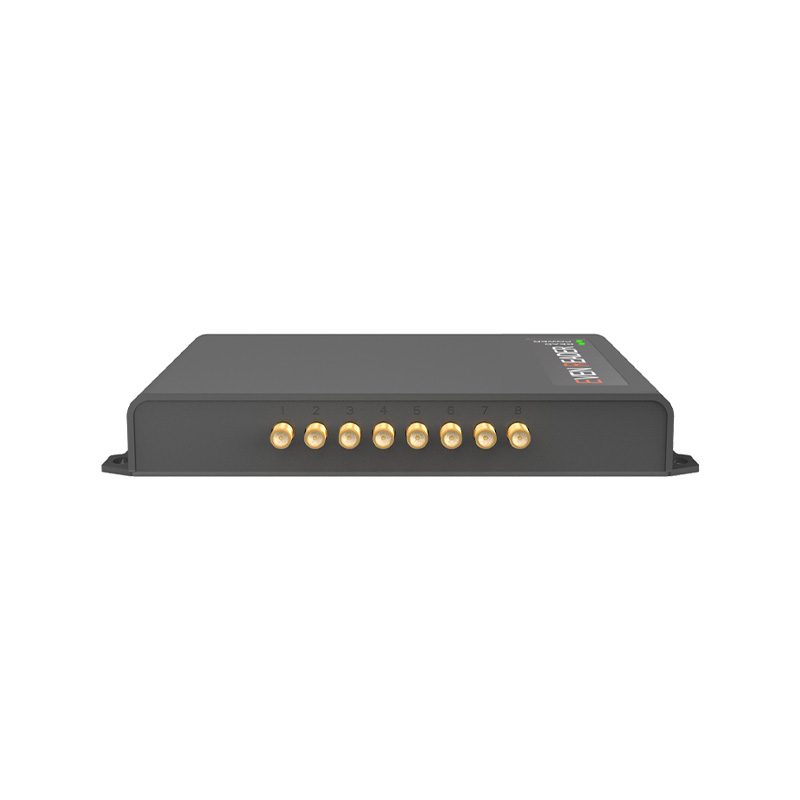

- Eight SMA female antenna ports support expansive multi-zone coverage and flexible antenna configuration.
- Adjustable RF output power from 0 dBm to 33 dBm for precise control over read range and signal strength.

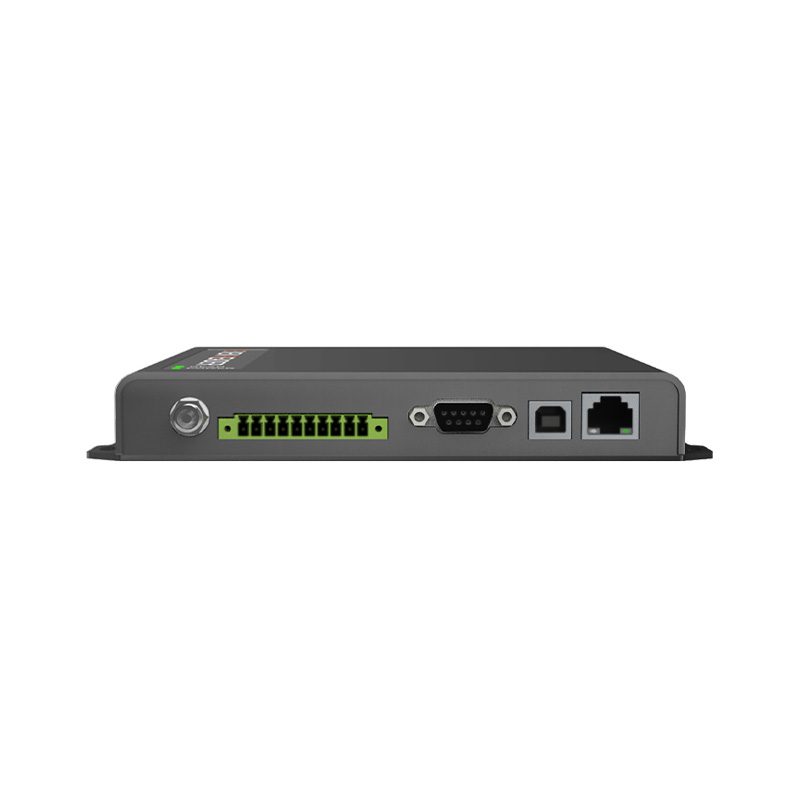

- Multiple connectivity interfaces including USB, RS232, TCP/IP, and optional Power over Ethernet (PoE).
- Industrial IP55-rated housing ensures durability in demanding environments.
Out of stock
The CHAFON CF816 Industrial UHF RFID Fixed Reader is engineered for robust, large-scale RFID applications. Utilizing the advanced Impinj E710 chipset, it operates in the 902-928 MHz (US) or 865-868 MHz (EU) UHF bands, providing reliable, high-speed identification of tags with anti-collision algorithms and multi-antenna polling. Its design prioritizes stable performance in industrial settings.
This reader offers extensive system integration flexibility through its standard USB, RS232, and Ethernet (TCP/IP) ports, with an optional PoE module for simplified power and data delivery. The inclusion of two sets of GPI and GPO (General Purpose Input/Output) allows for direct interaction with external devices like gates, lights, or alarms, enabling automated process control based on tag reads.
Additional Information
| Weight | 0.6 kg |
|---|---|
| Dimensions | 14.7 × 18.4 × 2.6 cm |
