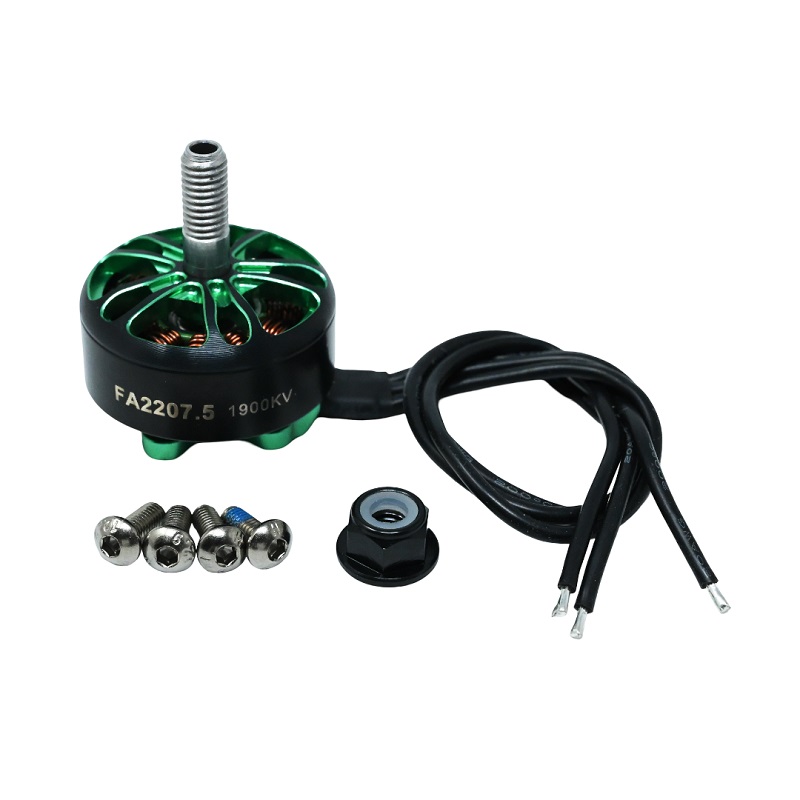

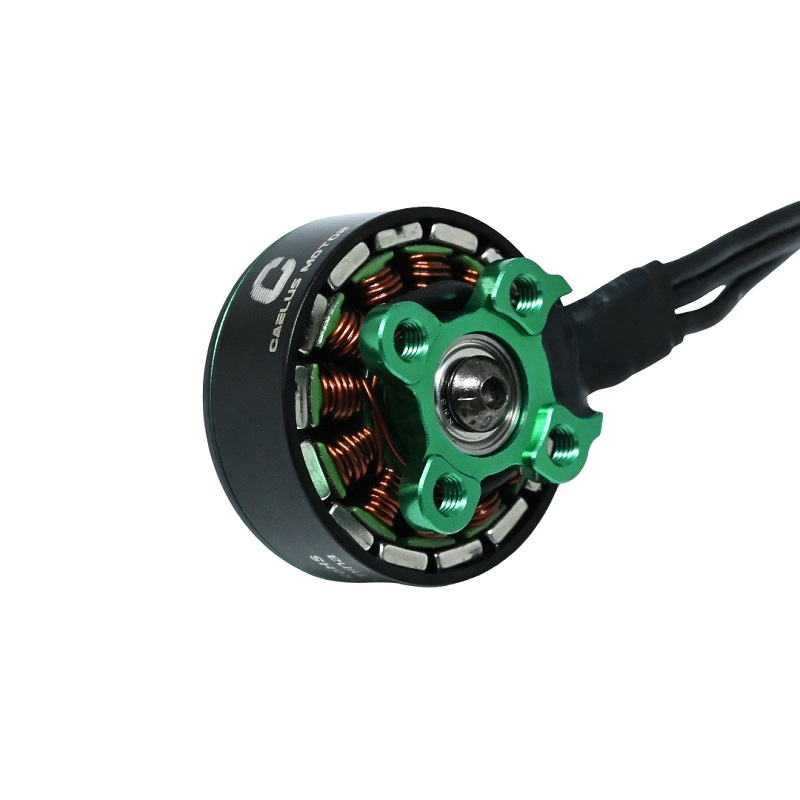

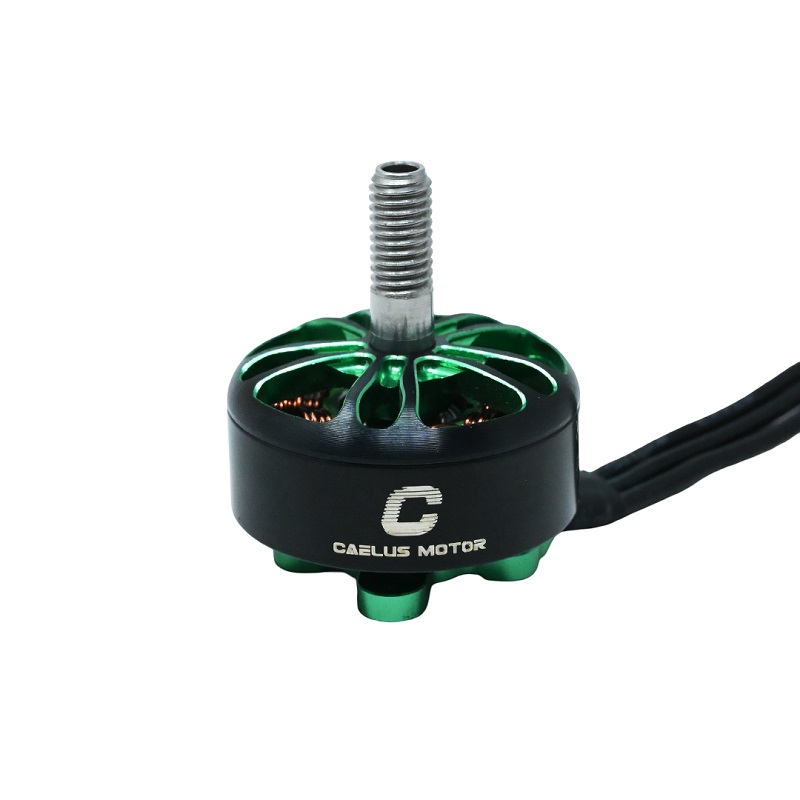

CAELUS FA2207.5 1900KV Brushless Motor
The CAELUS FA2207.5 1900KV brushless motor is engineered for high-performance 5-6 inch FPV racing and freestyle drones, delivering up to 1959g of thrust on 6S LiPo power. Its 7075-T6 aluminum bell and NSK bearings ensure durability and smooth operation for demanding flight profiles.
Features
- High-performance 1900KV motor optimized for 5-6 inch FPV racing and freestyle drones.
- Generates up to 1959g of thrust on 6S LiPo with a GF6045 propeller.
- Constructed with a durable 7075-T6 aluminum bell and premium NSK 684 bearings.
- Features a 12N14P configuration with 0.15mm Kawasaki silicon steel laminations for high efficiency.
- Lightweight 36g design with a 5mm shaft and 16x16mm (M3x4) mounting pattern.
Out of stock
The CAELUS FA2207.5 1900KV brushless motor is designed for pilots seeking maximum thrust and responsiveness in competitive FPV environments. Its 22mm stator diameter and 7.5mm height provide an optimal balance of torque and RPM, enabling aggressive maneuvers and rapid acceleration on 4S to 6S LiPo batteries.
Built for durability, the motor utilizes a 7075-T6 aluminum bell for impact resistance and maintains precise rotor alignment with high-quality NSK bearings. The 12N14P magnetic configuration and ultra-thin 0.15mm Kawasaki steel laminations minimize electrical losses and thermal buildup, ensuring consistent performance throughout extended flight sessions.
Additional Information
| Weight | 0.045 kg |
|---|---|
| Dimensions | 5 × 6 × 4 cm |
