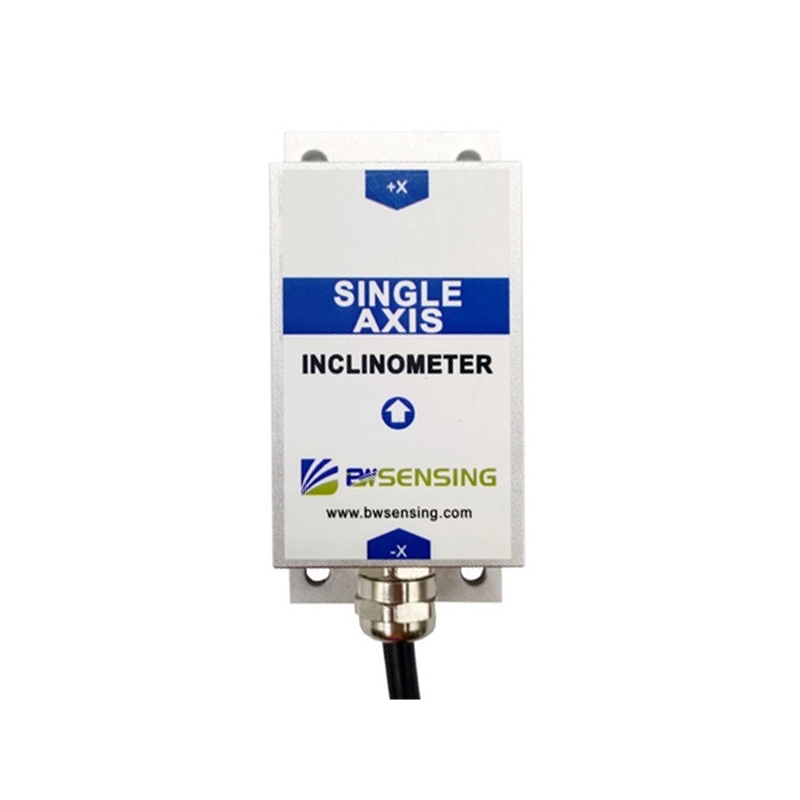

BWSENSING BWM416 Digital Single Axis Inclinometer Sensor, ±180° Range, RS485 Output

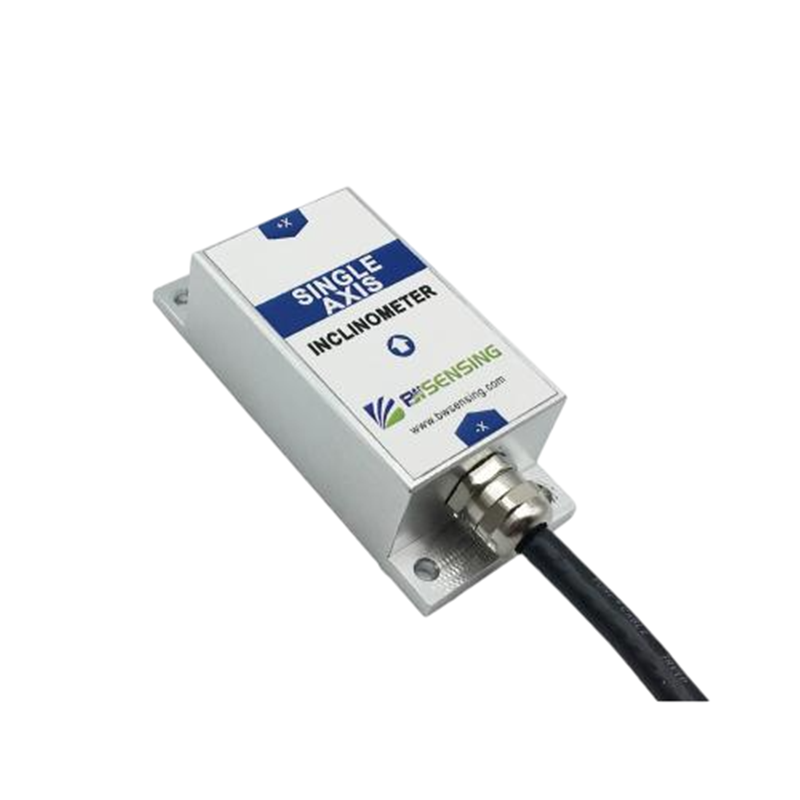

BWSENSING BWM416 Digital Single Axis Inclinometer Sensor, ±180° Range, RS485 Output - Image 2
SKU: SENS-4290
📋 GST Invoice Available

BWSENSING BWM416 Digital Single Axis Inclinometer Sensor, ±180° Range, RS485 Output

₹21,909.00 (Inclusive of all taxes)
Out of Stock

The BWSENSING BWM416 is a high-precision, single-axis digital inclinometer with RS485 output, designed for industrial automation, structural monitoring, and solar tracking systems requiring accurate tilt measurement up to ±180°.

Features

  • High-precision MEMS-based digital inclinometer with ±180° measurement range.
  • Exceptional accuracy of ±0.01° and a resolution of 0.001° for detailed tilt monitoring.
  • Robust IP67-rated housing ensures reliable operation in harsh industrial environments.
  • Wide 9-35V DC power input range with RS485 digital output for stable, noise-resistant communication.
  • Features intelligent self-calibration, zero-point auto-correction, and OTA firmware upgrade capability.

Out of stock

Description

The BWM416 digital inclinometer utilizes advanced MEMS sensor technology to deliver precise single-axis angle measurement. Its digital signal processing ensures high stability and minimal interference, making it suitable for long-term monitoring applications. The sensor’s intelligent calibration system automatically corrects for installation misalignment and zero-point drift on-site.

Housed in a compact, IP67-protected enclosure, the BWM416 is engineered for durability in demanding conditions, with an operating temperature range from -40°C to +85°C. The RS485 interface provides robust, long-distance communication, ideal for integration into industrial PLCs, SCADA systems, and data acquisition units.

Key Features

  • High-precision MEMS sensing element with ±0.01° accuracy.
  • Wide measurement range of ±180° for comprehensive tilt monitoring.
  • Robust IP67-rated enclosure for protection against dust and water immersion.
  • Intelligent autonomous calibration and zero-point error correction.
  • Over-the-Air (OTA) firmware upgrade support for future enhancements.
  • Adjustable output frequency from 5 Hz to 100 Hz.
  • Wide operating voltage range of 9-35V DC for flexible system integration.
  • High Mean Time Between Failures (MTBF) of ≥90,000 hours for reliable long-term operation.

Applications

  • Structural health and deformation monitoring for bridges, towers, and buildings.
  • Precision alignment and leveling control in industrial automation and machinery.
  • Solar panel tracking systems for optimal photovoltaic energy harvest.
  • Tilt monitoring and control for lifting equipment, cranes, and aerial platforms.
  • Angle measurement in surveying, mapping, and medical equipment alignment.

Technical Specifications

Model NumberBWM416
Measurement Range±180°
Accuracy±0.01°
Resolution0.001°
Output InterfaceRS485 Digital Output
Power Supply9 – 35 V DC
Operating Current20 – 40 mA (no load)
Operating Temperature-40°C to +85°C
Protection RatingIP67
Start-up Time< 3 s
Output Frequency5 – 100 Hz (adjustable)
Impact Resistance2000 g / 0.5 ms (3 axes)
MTBF≥90,000 h
Insulation Resistance≥100 MΩ
Dimensions (L x W)90 mm x 40 mm
Weight249 g

Frequently Asked Questions

What is the power supply requirement for the BWM416 inclinometer?

The BWM416 operates on a wide-range DC power supply from 9 to 35 volts, with a typical operating voltage of 12V DC. This flexibility allows for easy integration into various industrial control panels and mobile equipment power systems.

What communication protocol does this sensor use, and how do I connect it?

This sensor provides a digital RS485 output interface. You will need an RS485 transceiver or a compatible data acquisition module to communicate with it. Standard two-wire (A/B) connections are used, and termination resistors may be required for long cable runs to ensure signal integrity.

Is the BWM416 suitable for outdoor or harsh environments?

Yes, the BWM416 is housed in a robust enclosure with an IP67 protection rating, making it dust-tight and capable of withstanding temporary immersion in water. Its operating temperature range of -40°C to +85°C ensures reliable performance in extreme outdoor and industrial conditions.

Does the sensor require calibration after installation?

The BWM416 features intelligent self-calibration and automatic zero-point error correction, which significantly reduces installation errors. For the highest precision, an initial calibration to a known reference angle is recommended, after which the sensor maintains its accuracy through its onboard correction algorithms.

What is the measurement update rate of the BWM416?

The output frequency of the BWM416 is adjustable from 5 Hz to 100 Hz, allowing you to optimize the data rate based on your application's requirements for responsiveness versus data processing load.

Package Includes

  • 1 x BWSENSING BWM416 Digital Single Axis Inclinometer Sensor

Additional Information

Weight 0.249 kg
Dimensions 9 × 4 cm
