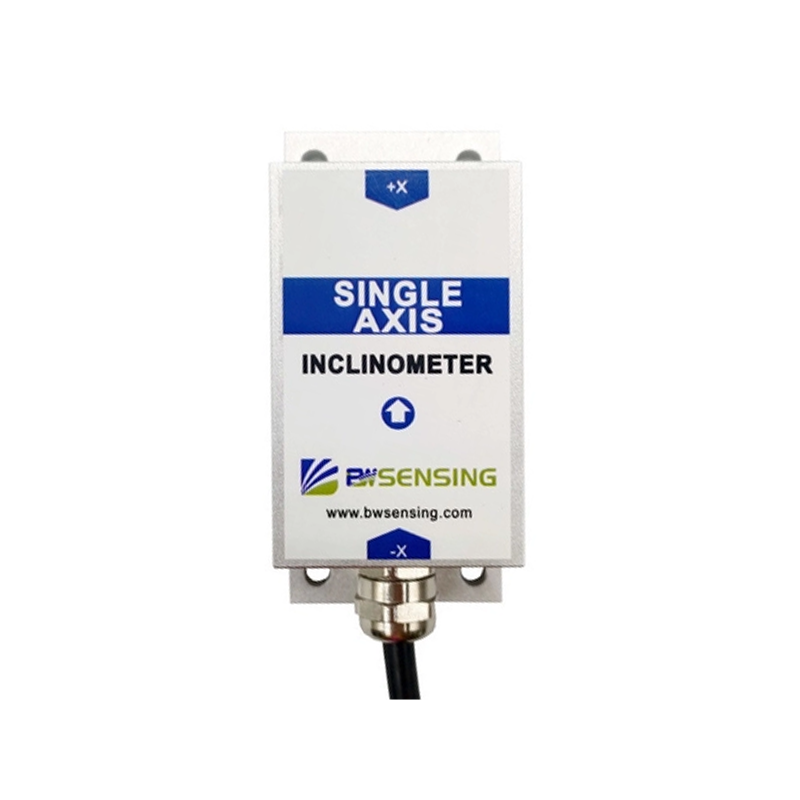

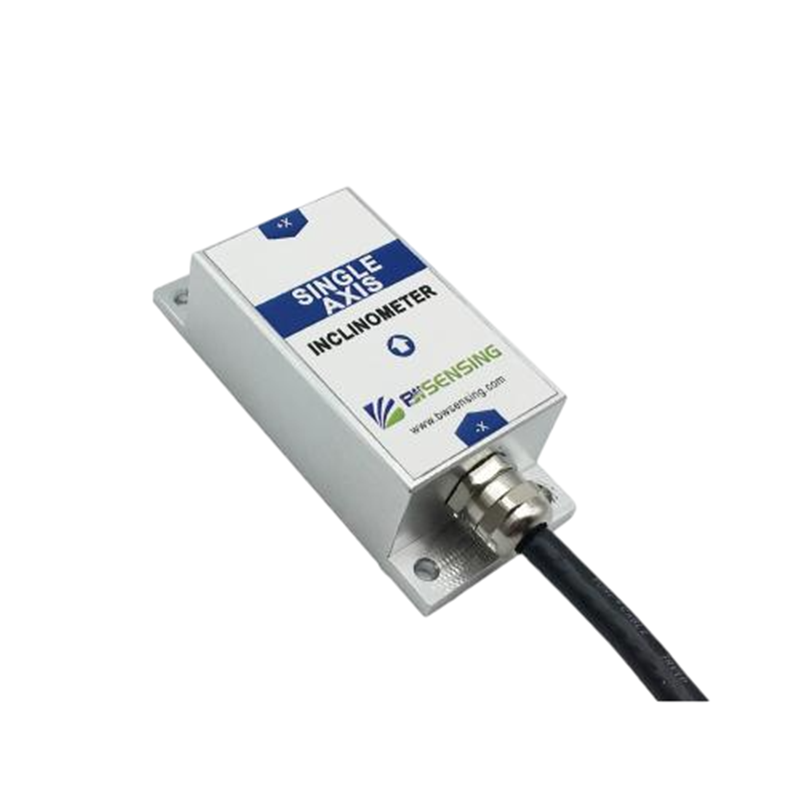

BWSENSING BWK218 Single Axis Inclinometer Sensor, ±180° Range, 4-20mA Output, IP67 Magnesium Alloy
The BWSENSING BWK218 is a high-precision, single-axis MEMS inclinometer sensor with a ±180° measurement range, designed for industrial automation and structural monitoring. It provides a robust 4-20mA current loop output compatible with PLCs, DCS, and data acquisition systems, powered by a wide 12-36V DC supply for versatile integration.
Features
- High-precision MEMS inclinometer with ±0.2° accuracy and 0.02° resolution.
- Industrial 4-20mA current loop output for long-distance, noise-immune signal transmission.
- Rugged IP67-rated magnesium alloy housing for operation in harsh environments.
- Wide operating voltage range (12-36V DC) and temperature range (-40°C to +85°C).
- Compact design with M4 screw mounts for easy installation in space-constrained applications.
Out of stock
The BWSENSING BWK218 employs advanced MEMS accelerometer technology to deliver precise and stable single-axis inclination measurements across a full ±180° range. Its high-grade signal conditioning circuitry ensures minimal drift and high immunity to electromagnetic interference, making it suitable for critical monitoring tasks.
Encased in a durable magnesium alloy body with an IP67 protection rating, the sensor is built to withstand dust, moisture, and extreme temperatures from -40°C to +85°C. The 4-20mA analog output provides a reliable interface for direct connection to industrial control systems, supporting seamless integration into automation networks, SCADA systems, and safety monitoring setups.
Additional Information
| Weight | 0.25 kg |
|---|---|
| Dimensions | 9 × 4 cm |
