BliKVM v4 KVM-over-IP w/ Allwinner H616, PoE, HDMI Loop
BliKVM v4 KVM-over-IP w/ Allwinner H616, PoE, HDMI Loop - Image 2
BliKVM v4 KVM-over-IP w/ Allwinner H616, PoE, HDMI Loop - Image 3
SKU: SBCD-0983
📋 GST Invoice Available

BliKVM v4 KVM-over-IP w/ Allwinner H616, PoE, HDMI Loop

₹21,779.00 (Inclusive of all taxes)
Out of Stock

The BliKVM v4 KVM-over-IP device offers robust remote server and workstation management capabilities, built around the Allwinner H616 SoC. Fully compatible with the PiKVM software, it provides seamless hardware-level access for power control, BIOS configuration, and OS reinstallation via web browser.

Features

  • Integrated Allwinner H616 SoC for powerful KVM-over-IP functionality.
  • Supports PiKVM for comprehensive remote control, including power cycling and BIOS access.
  • Features HDMI-IN with loop-through, USB device emulation, and ATX power control.
  • Equipped with PoE, WiFi, and Bluetooth for flexible network deployment.
  • Open-source Linux-based solution ensures transparency and customization options.

Out of stock

Description

The BliKVM v4 KVM-over-IP device, powered by the Allwinner H616 SoC, provides a production-ready and user-friendly solution for professional remote server and workstation management. It operates on an open-source Linux base, offering comprehensive features such as remote power control (on/off, restart), UEFI/BIOS configuration, and OS reinstallation via an emulated Mass Storage Device.

Designed to emulate a keyboard, mouse, and monitor, the BliKVM v4 delivers a seamless remote experience accessible directly through a web browser. Its hardware-level access ensures independence from specific remote ports or protocols, making it a highly reliable and flexible solution for diverse professional environments demanding robust remote system oversight.

Key Features

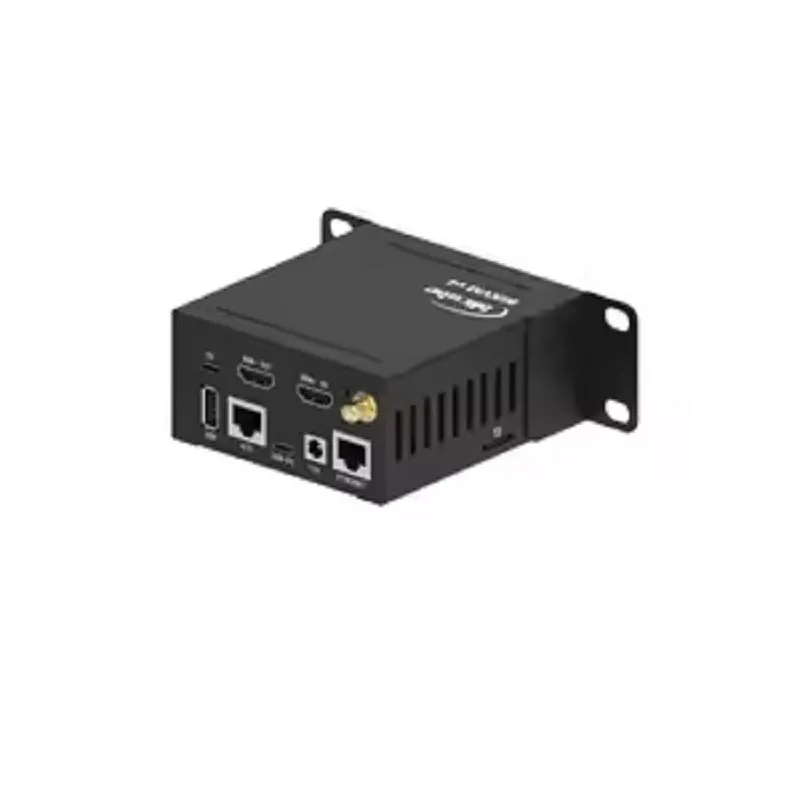

  • HDMI-IN port for capturing video input from the target system's display output.
  • HDMI-OUT loop-through for local video monitoring without interrupting remote KVM.
  • USB-PC interface emulates keyboard, mouse, and mass storage devices for comprehensive control.
  • Integrated ATX Control functionality enables remote power cycling (on/off, restart) of the connected system.
  • Wireless connectivity via WiFi (IEEE802.11 b/g/n) and Bluetooth LE 4.2 for flexible network integration.
  • Micro SD Card slot provides persistent storage for the operating system and user data.
  • Dedicated 5V power input port, also serving as a serial console management interface.
  • LED indicators for power, activity, HDMI input (green), and HDMI output (yellow) status.

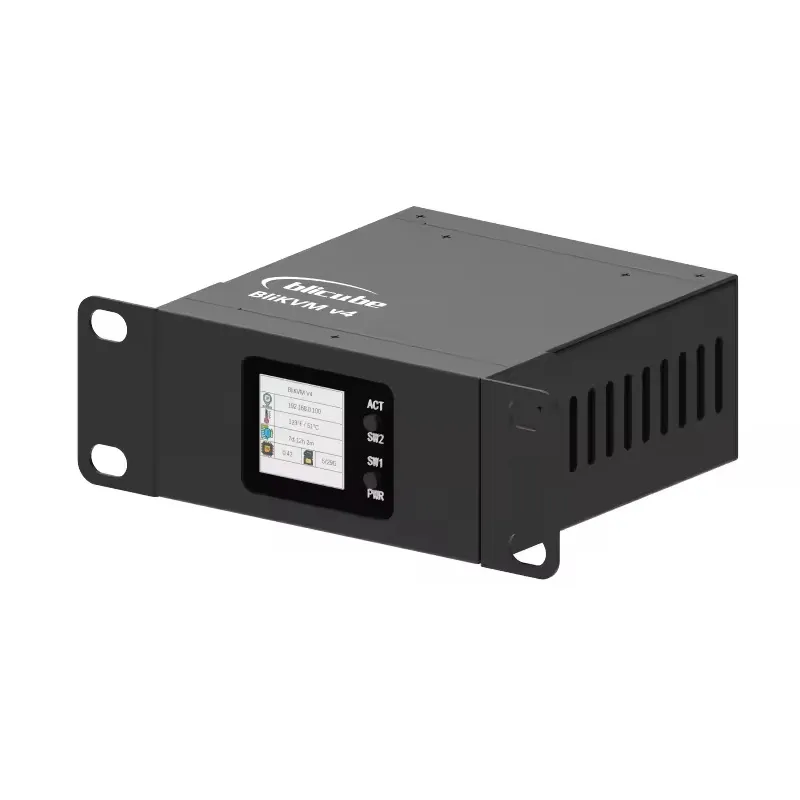

  • 1.33-inch LCD display with 240x240 resolution for local status information.
  • User-definable button (SW1) and a buzzer for customizable functions and device location.

Applications

  • Remote server and workstation management in data centers or home labs.
  • Out-of-band management for headless systems and embedded devices.
  • BIOS/UEFI configuration and OS installation on remote hardware.
  • Debugging and administration of network appliances or industrial PCs.
  • Secure remote access for IT professionals and system administrators.

Technical Specifications

Item TypeKVM over IP Remote Management Device
SoCAllwinner H616 / H313
RAM1 GB
Display ResolutionUp to 1280x800 pixels
Supply Voltage5V
Max Power ConsumptionUp to 15W
Operating Temperature0°C to 70°C
Storage Temperature-20°C to 60°C
WirelessWiFi (IEEE802.11 b/g/n), Bluetooth BLE 4.2

Frequently Asked Questions

What is the core processor and its capabilities in the BliKVM v4?

The BliKVM v4 is powered by an Allwinner H616 SoC, providing robust performance for KVM-over-IP functionalities. This quad-core ARM Cortex-A53 processor enables smooth video streaming, rapid response times for input emulation, and efficient operation for managing remote systems, ensuring a professional-grade remote control experience.

How does the KVM-over-IP functionality work, and what software does it use?

The BliKVM v4 operates as a KVM-over-IP device, emulating keyboard, mouse, and monitor over a network connection, accessible via a web browser. It is fully compatible with the open-source PiKVM software, leveraging its capabilities for comprehensive out-of-band management, including BIOS access, power control, and virtual media support.

What are the power and connectivity options for the BliKVM v4?

The BliKVM v4 supports flexible power input via its 5V port. For network connectivity, it features Power over Ethernet (PoE) for simplified single-cable deployment, along with integrated WiFi (IEEE802.11 b/g/n) and Bluetooth LE 4.2. This ensures versatile installation options for diverse network environments.

Can the BliKVM v4 control server power and perform OS reinstallation remotely?

Yes, the BliKVM v4 includes ATX control for remote power on/off and restart capabilities for connected systems. Furthermore, it supports OS reinstallation by emulating a Mass Storage Device, allowing users to mount ISO images or other bootable media remotely for system recovery or fresh installations via the web interface.

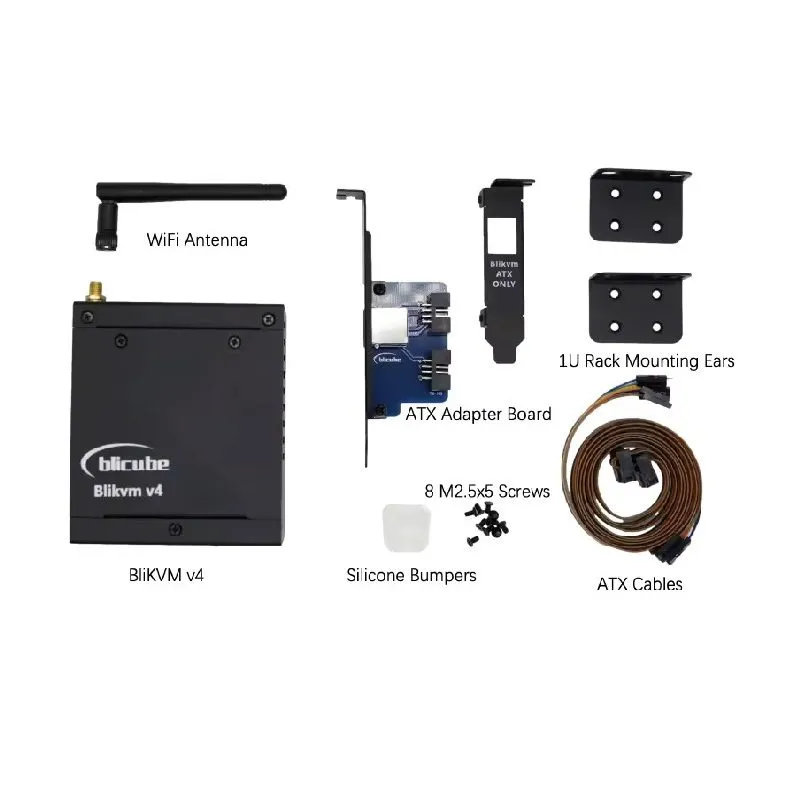

Package Includes

  • 1x Blicube BliKVM v4 KVM-over-IP Device
  • 1x Wi-Fi Antenna
  • 1x Blikvm ATX ONLY Module
  • 1x ATX Adapter Board
  • 1x 1U Rack Mounting Ears
  • 8x M2.5x5 Screws
  • 1x Silicone Bumpers Set
  • 1x ATX Cables Set

Additional Information

Weight 0.584 kg
Dimensions 14 × 12 × 8 cm

Related Products

Out of Stock

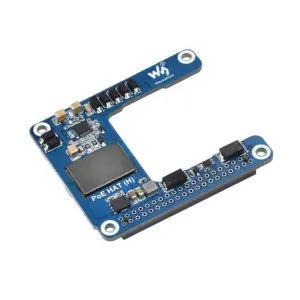

Waveshare PoE HAT (H) for Raspberry Pi 5 / CM5, 5V 5A Output

2,429.00
Learn More
Out of Stock

Seeed Studio Studio ODYSSEY - STM32MP135D Cortex-A7 SBC 4Gb DRAM

5,009.00
Learn More
Out of Stock

Waveshare ESP32-S3-ETH-CAM-KIT Ethernet Dev Board w/ OV5640 Camera

2,679.00
Learn More
Out of Stock

ODYSSEY-STM32MP135D SBC w/ 4GB eMMC & 4Gb DRAM

5,289.00
Learn More
Out of Stock

Waveshare Mini-computer Add-ons for Raspberry Pi CMs (without PA)

5,379.00
Learn More
Out of Stock

EDATEC ED-IPC3020-P Industrial Pi 5 Computer 4GB RAM, 128GB SSD, PoE

25,339.00
Learn More
Out of Stock

Geekworm X1012 PCIe NVMe+POE Shield for Raspberry Pi 5

4,519.00
Learn More
Out of Stock

Intel Intel RealSense Depth Camera D555 w/ PoE & Global Shutter

71,399.00
Learn More
Out of Stock

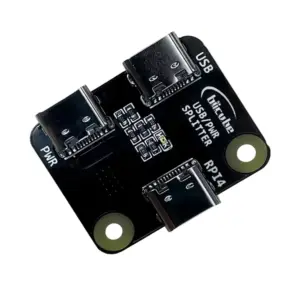

Blicube USB/Power Splitter for Raspberry Pi 4 BliKVM PiKVM

429.00
Learn More
Out of Stock

Luckfox PicoKVM Lite IP KVM Remote Management Tool

5,499.00
Learn More
Out of Stock

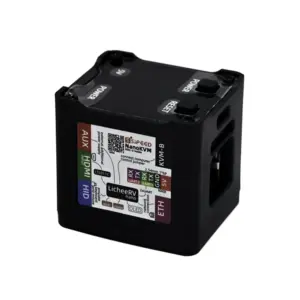

Sipeed NanoKVM PiKVM Mini Remote HDMI KVM Server
