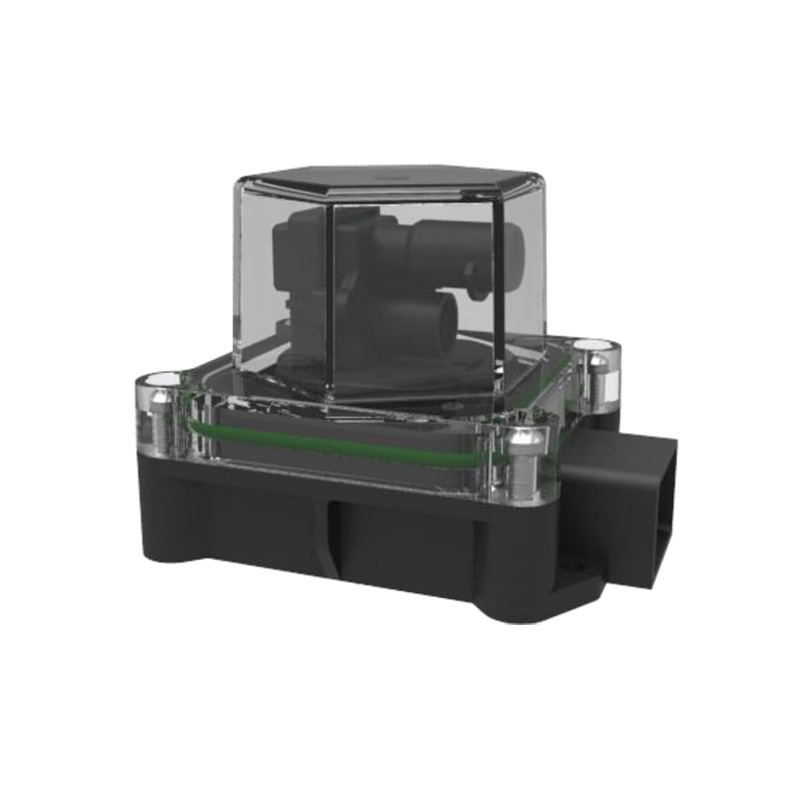

Benewake VLS-H5 Underwater 360° Single-Line Scanning LiDAR - IPX8, UART, 5m Range
The Benewake VLS-H5 is a compact, IPX8-rated underwater scanning LiDAR module designed for precise 2D ranging and mapping in aquatic environments. It features a 360° mechanical scan, UART communication with 3.3V TTL logic, and robust performance under high ambient light, making it suitable for integration with underwater robotics, ROVs, and embedded SLAM systems.
Features
- Underwater 360° scanning LiDAR with SPAD-based dToF technology for precise ranging.
- IPX8 waterproof rating for reliable operation at depths up to 4 meters.
- 5-meter detection range with high accuracy of < 3 cm.
- High ambient light immunity (100 kLux) for stable performance in bright conditions.
- UART interface with 3.3V TTL output for easy integration with microcontrollers and SBCs.
Out of stock
The Benewake VLS-H5 utilizes Single-Photon Avalanche Diode (SPAD) direct Time-of-Flight (dToF) technology combined with a rotating mechanical assembly to perform full 360° 2D laser scanning. This design ensures accurate and stable distance measurements even in challenging underwater conditions with slight turbidity. The sensor is engineered for consistent data output, providing reliable point-cloud information for real-time spatial awareness.
Built for harsh environments, the module features a robust IPX8 waterproof enclosure, allowing submersion up to 4 meters. It operates on a 5.4V DC supply with an average current draw under 450mA, making it suitable for mobile and battery-powered applications. The UART communication protocol simplifies data retrieval and system integration for underwater navigation, inspection, and mapping tasks.
Additional Information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 7.5 × 5.2 cm |
